| Basic Information |

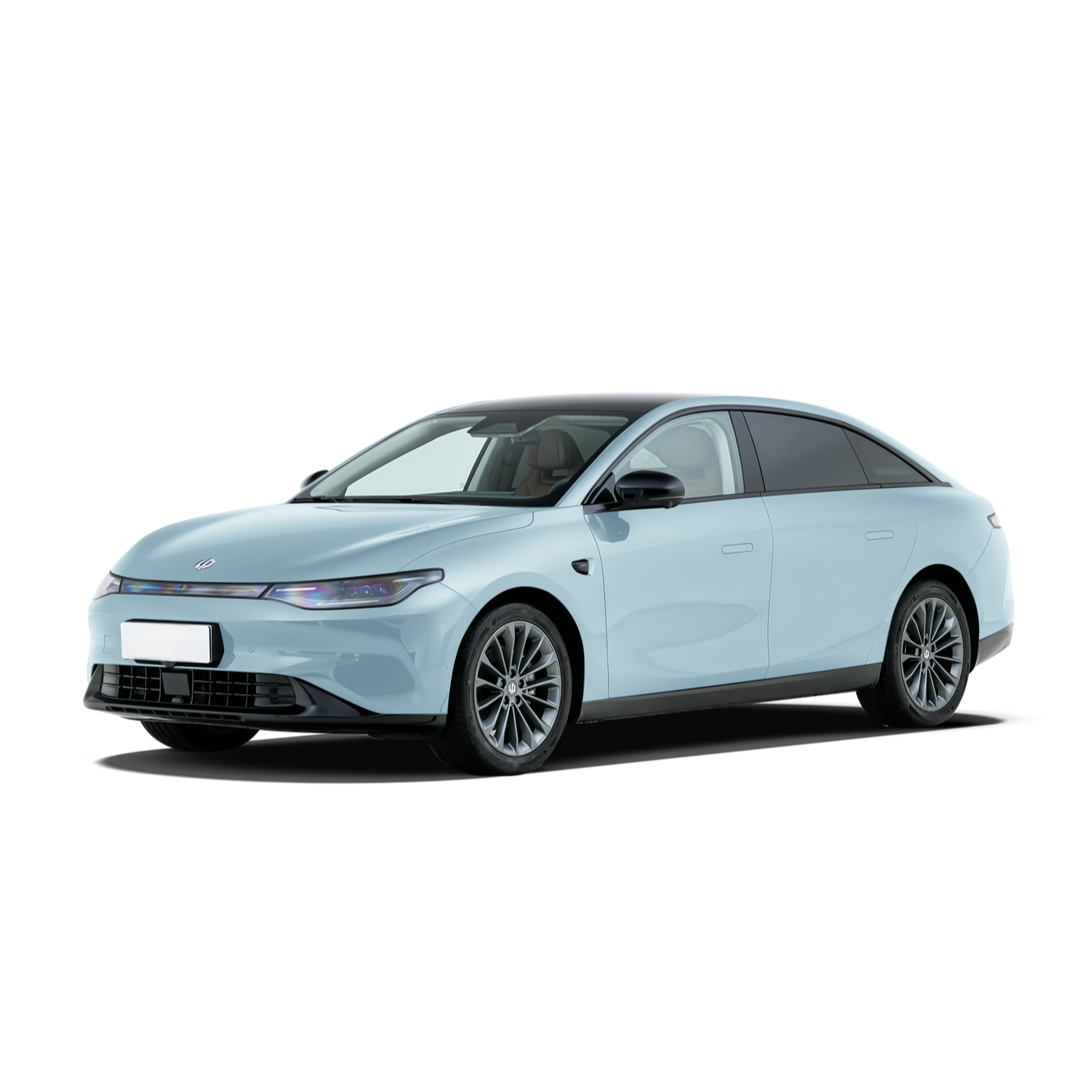

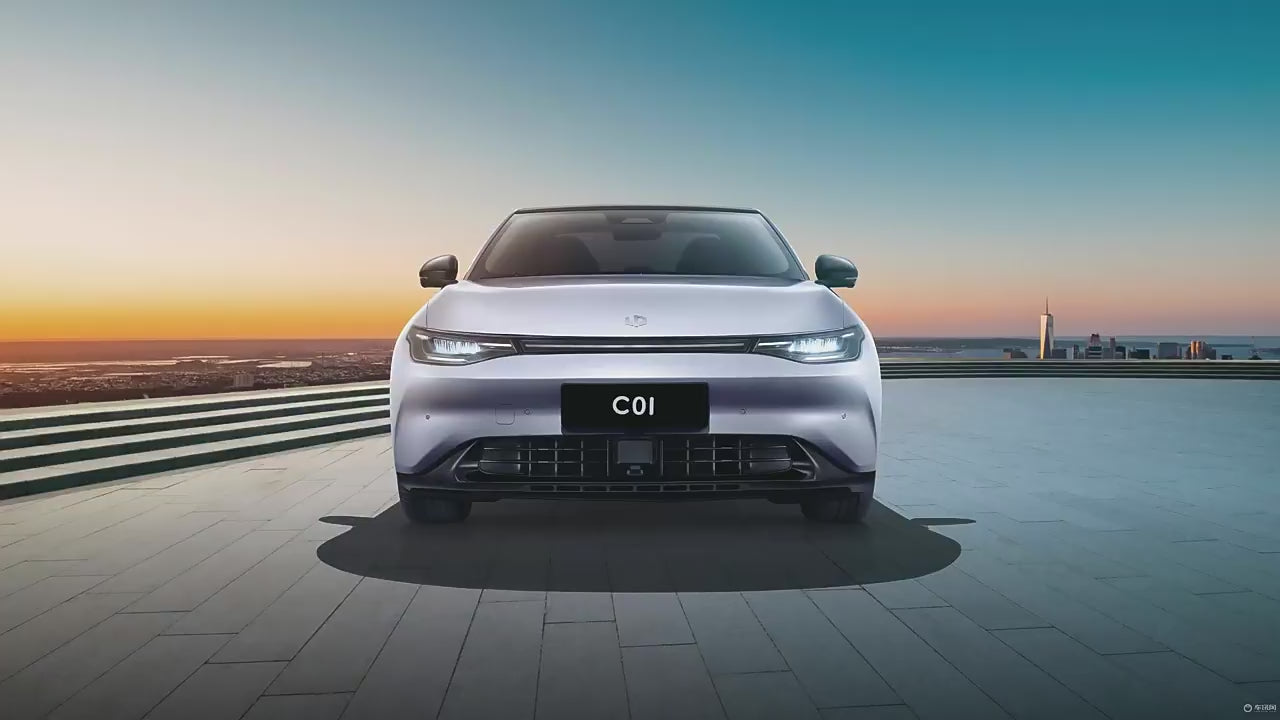

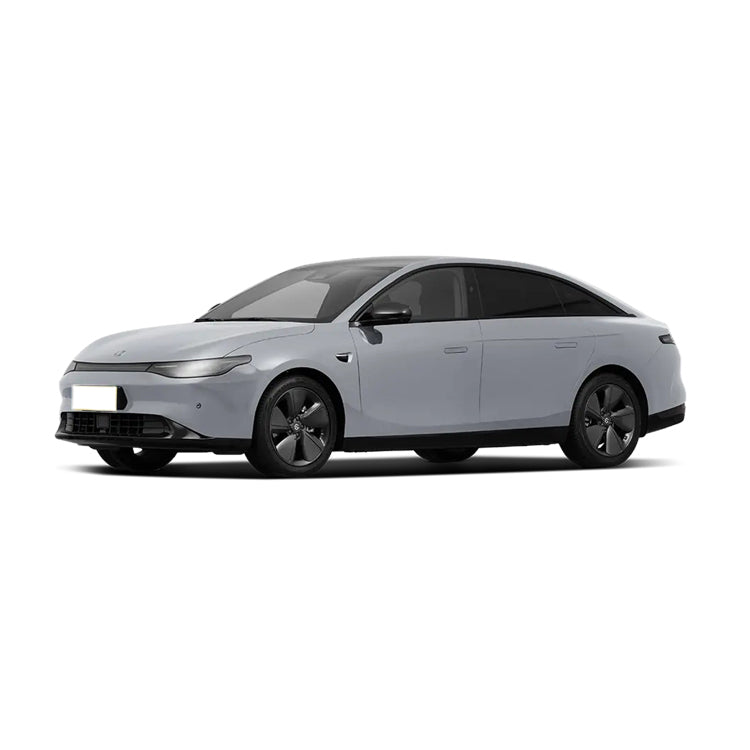

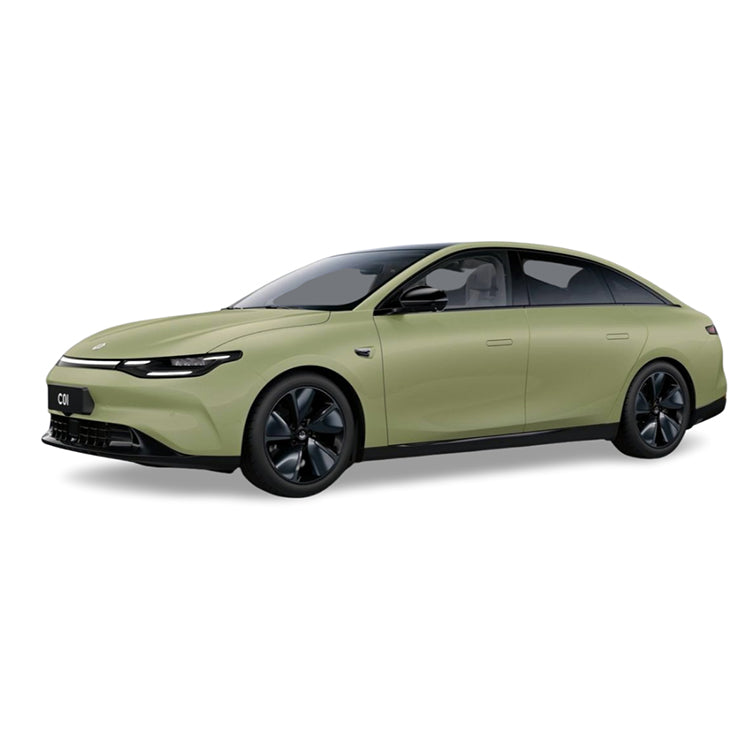

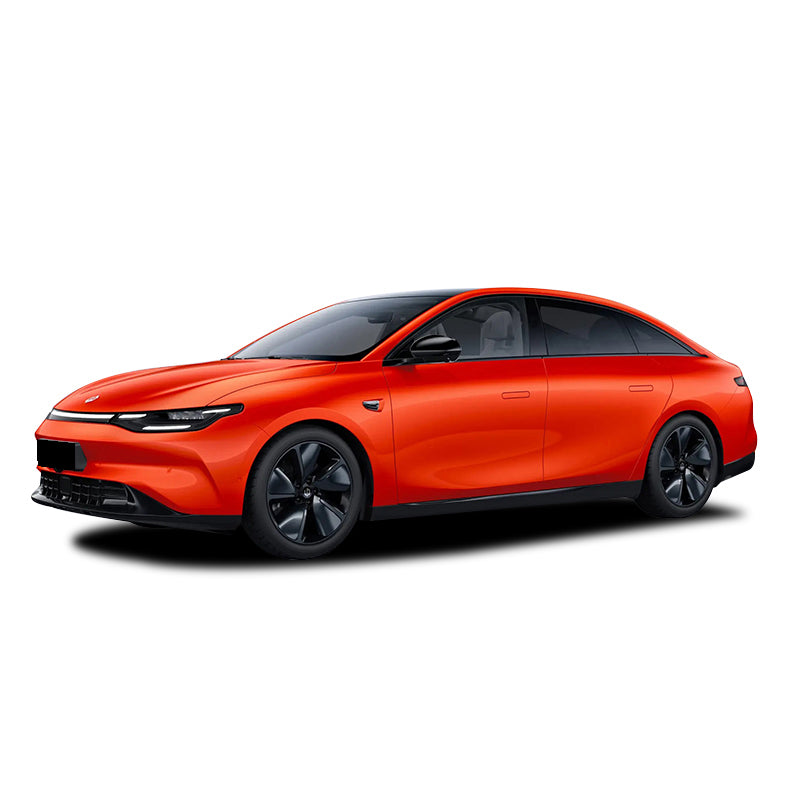

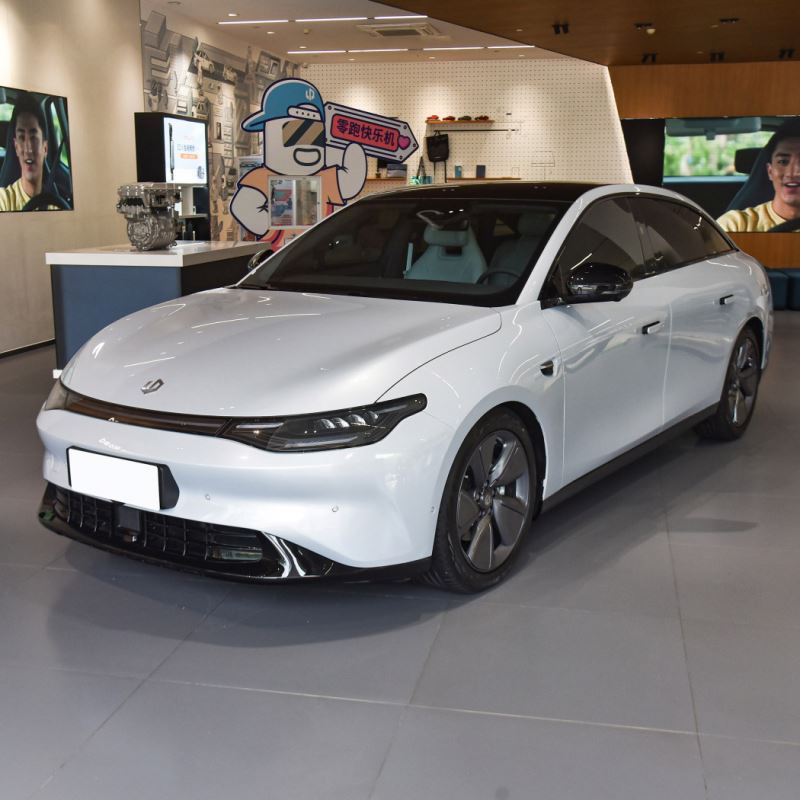

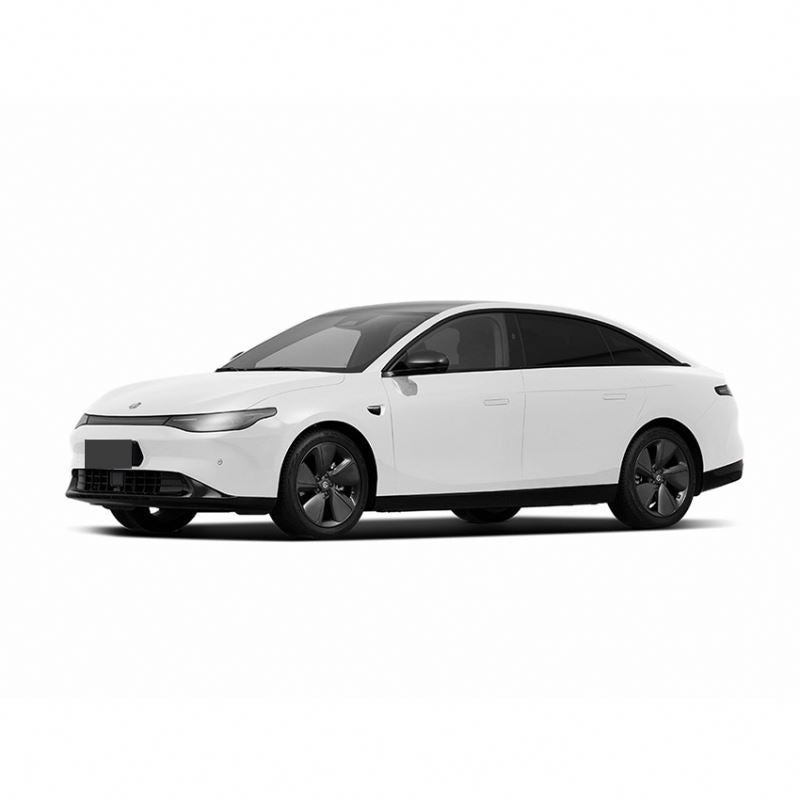

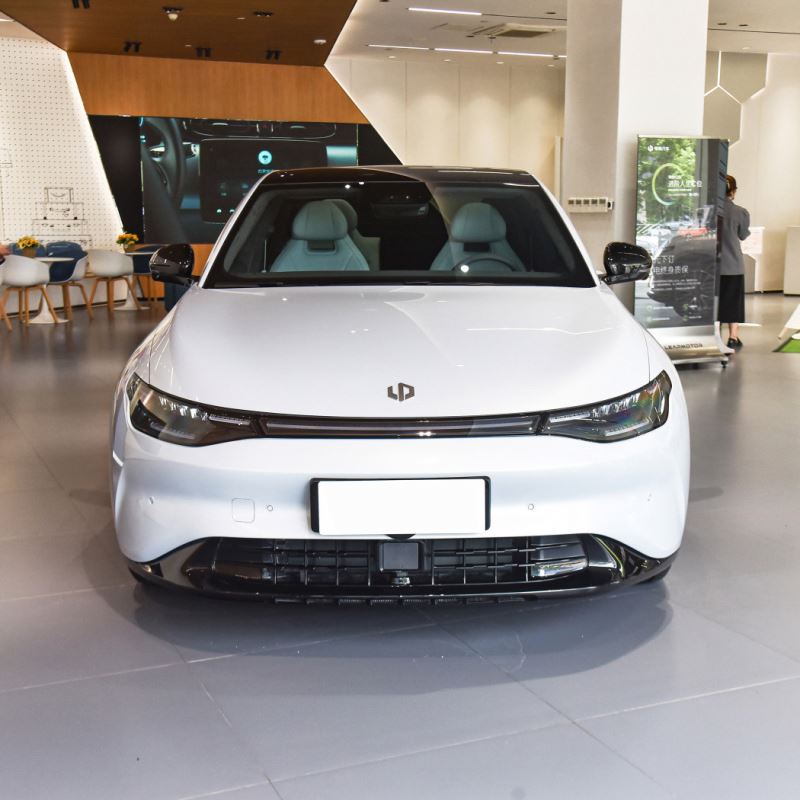

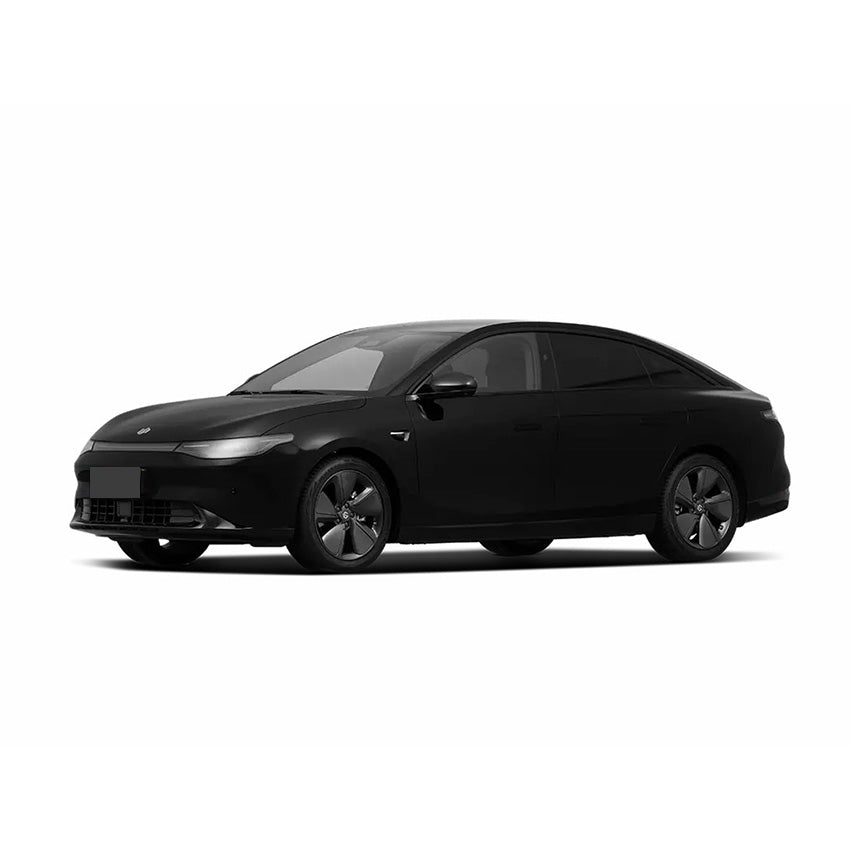

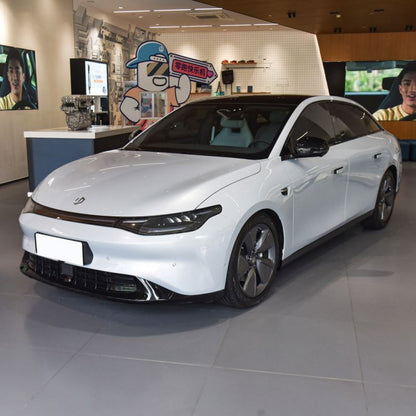

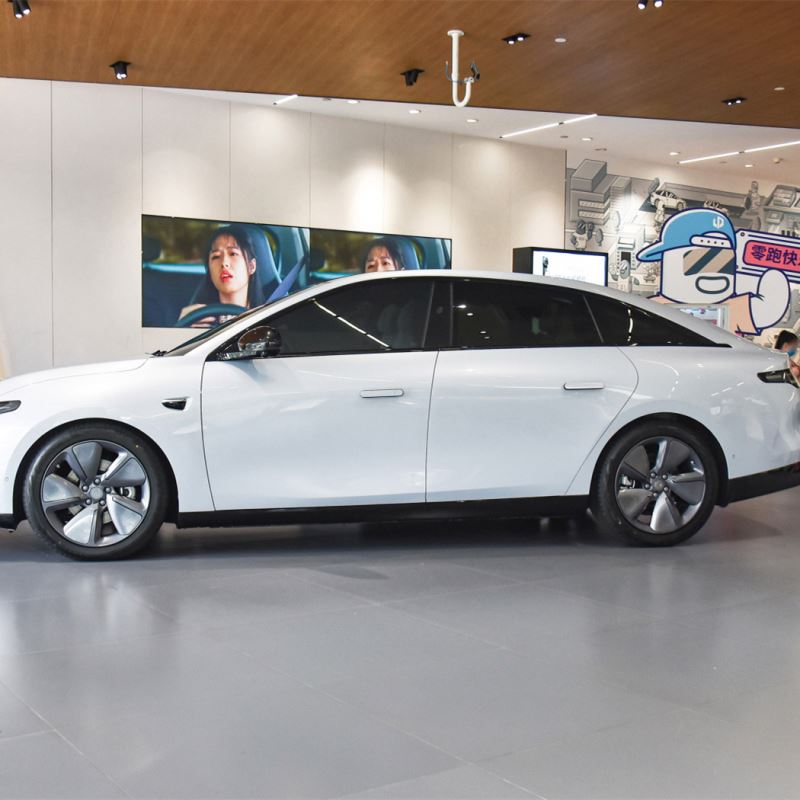

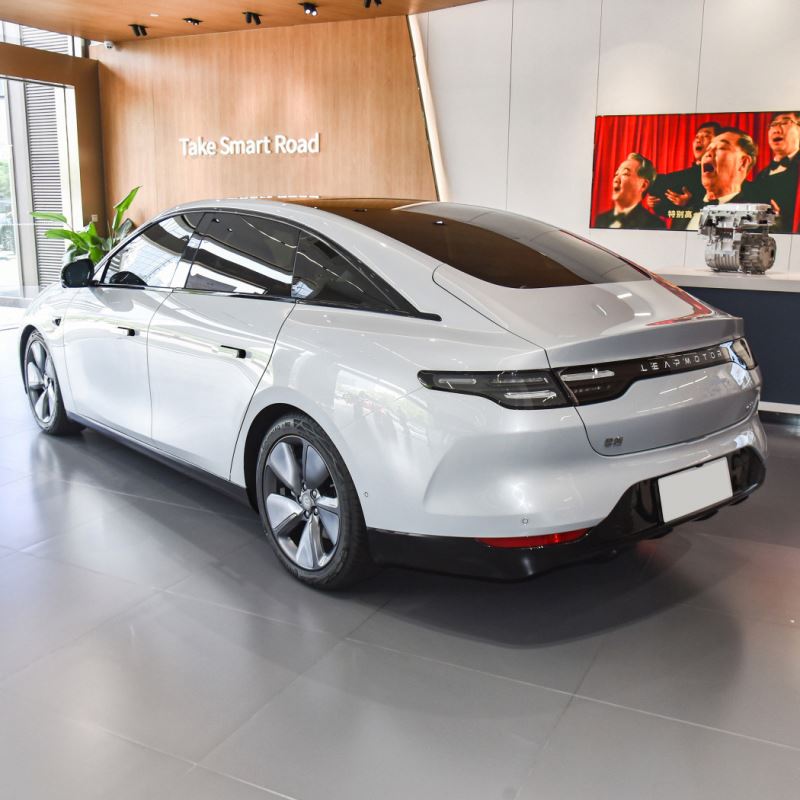

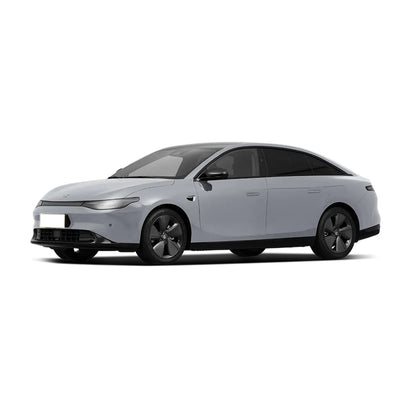

LEAPMOTOR C01 2024 extended range version 1.5L 316km exclusive version |
| Manufacturer |
LEAPMOTOR car |
| level |
Medium and large cars |
| Energy type |
Extended range pure electric |
| Environmental protection standards |
National VI |
| time to market |
2024-03-02 |
| CLTC pure electric range [km] |
316 |
| WLTC pure electric range [km] |
- |
| Fast charging time[h] |
0.5 |
| Fast charging capacity [%] |
30-80 |
| Slow charging time[h] |
3.8 |
| Slow charging capacity [%] |
30-80 |
| engine |
1.5L95 HP L4 |
| Motor[Ps] |
272 |
| gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
5050*1902*1515 |
| Body structure |
4-door, 5-seat sedan |
| Maximum speed [km/h] |
170 |
| Official 0-100km/h acceleration [s] |
7.8 |
| WLTC combined fuel consumption [Lkm] |
0.26 |
| Fuel consumption in low power state [Lkm] |
4.9 |
| Vehicle warranty |
4 years or 120,000 kilometers |
| Exterior color |
|
| interior color |
|
| body |
|
| Length[mm] |
5050 |
| Width[mm] |
1902 |
| Height[mm] |
1515 |
| Wheelbase [mm] |
2930 |
| Front wheelbase [mm] |
1608 |
| Rear wheelbase [mm] |
1604 |
| Car door opening method |
swing door |
| Number of doors |
4 |
| number of seats |
5 |
| Approach angle [°] |
15 |
| Departure angle [°] |
18 |
| Minimum ground clearance with full load [mm] |
118 |
| Minimum ground clearance without load [mm] |
140 |
| Drag coefficient [Cd] |
- |
| Fuel tank volume [L] |
47 |
| Official front trunk volume [L] |
- |
| Official trunk volume [L] |
449 |
| Curb weight [kg] |
2015 |
| Full load mass [kg] |
2390 |
| engine |
|
| engine model |
H15R |
| Displacement [mL] |
1499 |
| Displacement[L] |
1.5 |
| Intake form |
inhale naturally |
| Engine layout |
horizontal |
| Cylinder arrangement |
L |
| Number of cylinders [number] |
4 |
| Number of valves per cylinder [number] |
4 |
| Air Supply |
DOHC |
| Maximum power [kW] |
70 |
| Maximum horsepower[Ps] |
95 |
| Maximum net power [kW] |
68 |
| fuel grade |
No. 92 |
| Fuel supply method |
direct injection |
| Cylinder head material |
Aluminum alloy |
| Cylinder material |
Aluminum alloy |
| Environmental protection standards |
National VI |
| electric motor |
|
| Motor brand |
Jinhua LEAPMOTOR New Energy |
| Motor model |
TZ250XYLPPG1 |
| Number of drive motors |
single motor |
| Motor layout |
rear |
| Motor type |
Permanent magnet synchronization |
| Total motor power [kW] |
200 |
| Total motor horsepower [Ps] |
272 |
| Motor total torque [N·m] |
360 |
| Maximum power of front electric motor [kW] |
- |
| Maximum torque of front electric motor [N·m] |
- |
| Maximum power of rear electric motor [kW] |
200 |
| Maximum torque of rear electric motor [N·m] |
360 |
| Battery/recharge |
|
| Battery Type |
Ternary lithium battery |
| Battery brand |
AVIC Lithium Battery |
| Battery temperature management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
316 |
| WLTC pure electric range [km] |
- |
| CLTC comprehensive range [km] |
1276 |
| WLTC comprehensive range [km] |
- |
| Battery power [kWh] |
43.7 |
| Battery energy density [Wh/kg] |
- |
| Electricity consumption per 100 kilometers [kWhkm] |
18.7 |
| vehicle charging port |
●Slow charging port ●Fast charging port |
| Slow charging port location |
●Right rear side of car |
| Fast charging port location |
●Right rear side of car |
| Fast charging time[min] |
30 |
| Fast charging time[h] |
0.5 |
| Fast charging capacity [%] |
30-80 |
| Slow charging time[h] |
3.8 |
| Slow charging capacity [%] |
30-80 |
| Vehicle battery swap |
- |
| Home charging pile |
- |
| Car charging gun |
- |
| External discharge function |
● |
| Battery pack warranty |
8 years or 150,000 kilometers |
| gearbox |
|
| Gearbox description |
Electric vehicle single speed gearbox |
| Gearbox type |
Fixed gear ratio |
| Number of gears |
1 |
| chassis steering |
|
| Drive form |
rear wheel drive |
| four-wheel drive |
- |
| Center differential structure |
- |
| Front suspension type |
Double wishbone independent suspension |
| rear suspension type |
Five-link independent suspension |
| Assist type |
electric assist |
| Adjustable suspension features |
- |
| Adjustable suspension types |
- |
| Body structure |
Load-bearing |
| limited slip differential |
- |
| differential lock |
- |
| wheel brake |
|
| Front brake type |
●Ventilated disc type |
| rear brake type |
●Ventilated disc type |
| Parking brake type |
Electronic parking |
| Front tire specifications |
●245/45 R19 |
| Rear tire specifications |
●245/45 R19 |
| Spare tire |
●Tire repair tools only |
