| Basic Information |

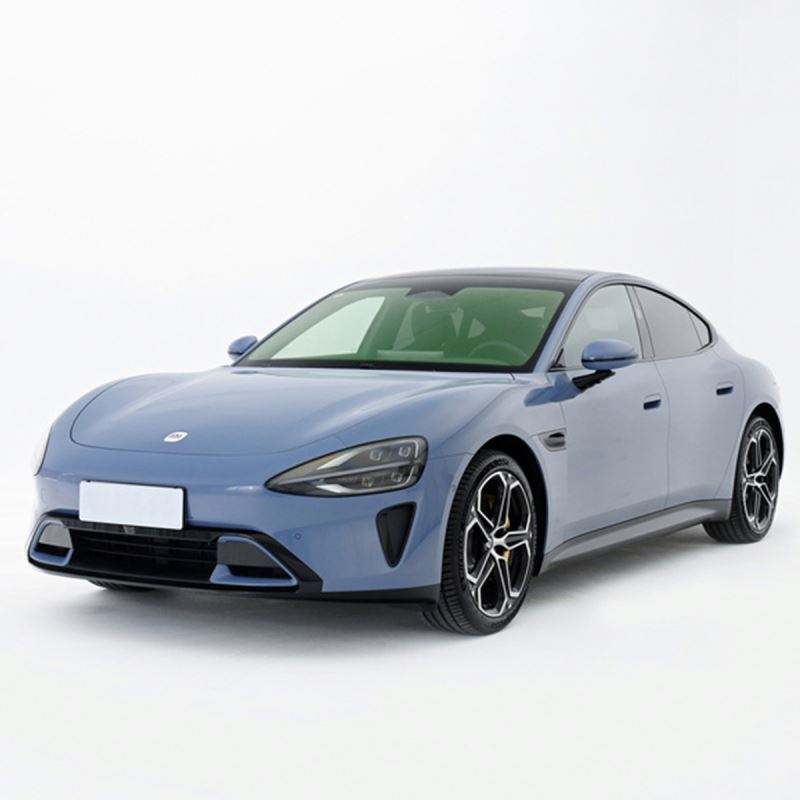

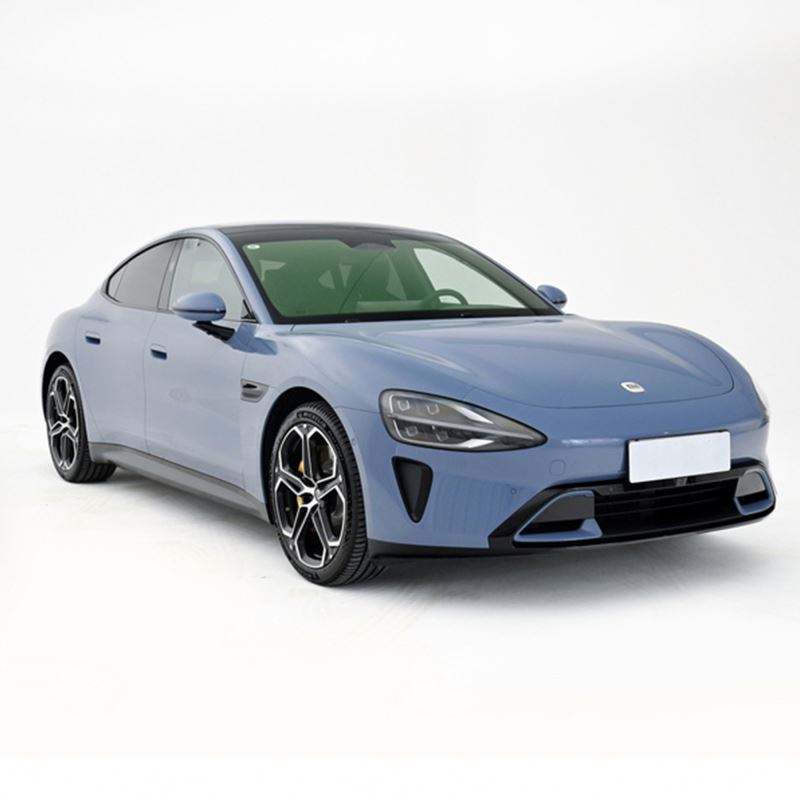

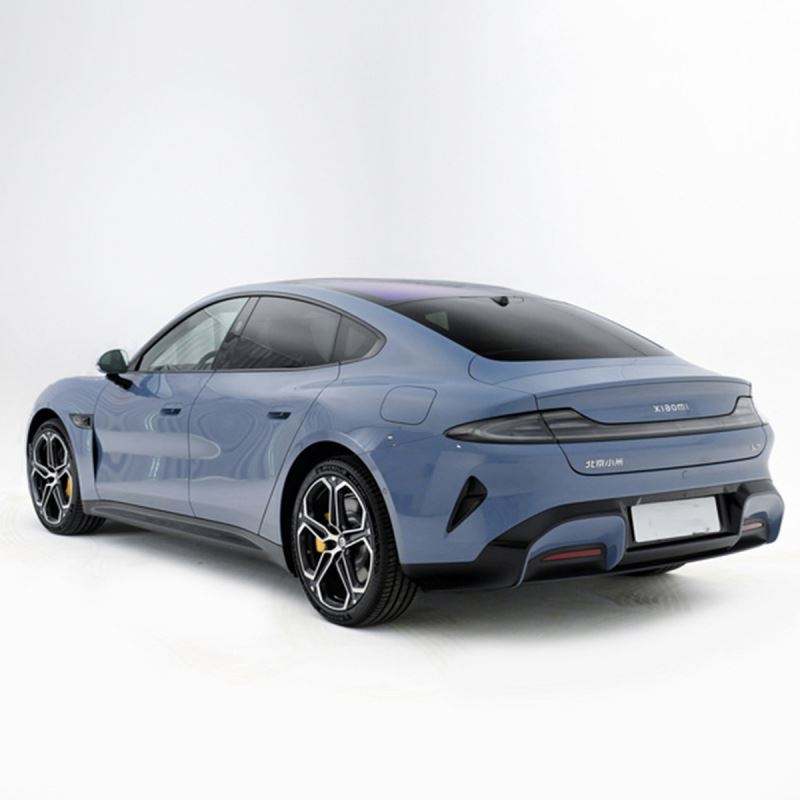

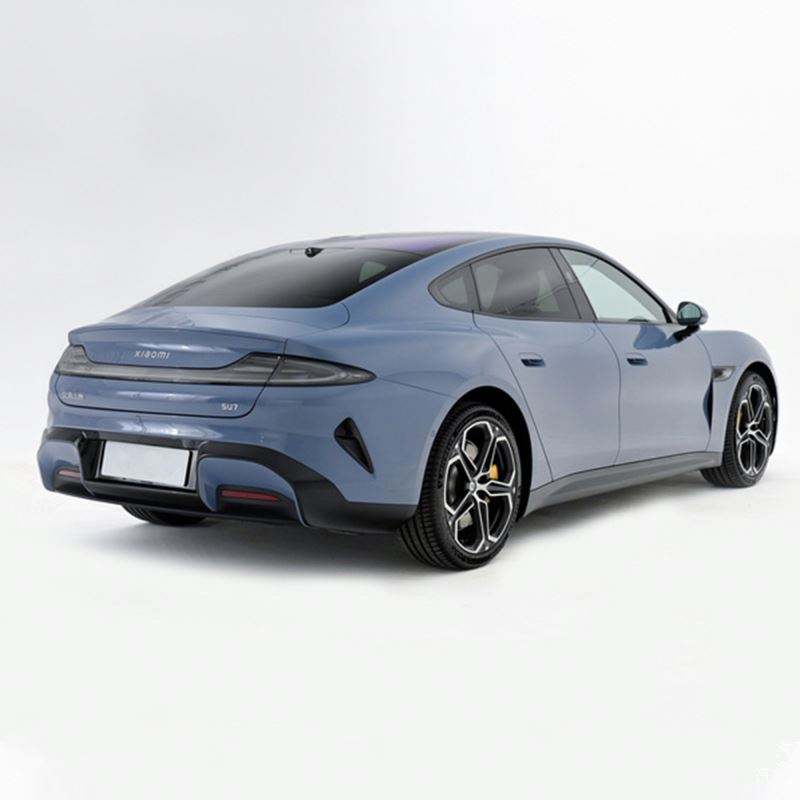

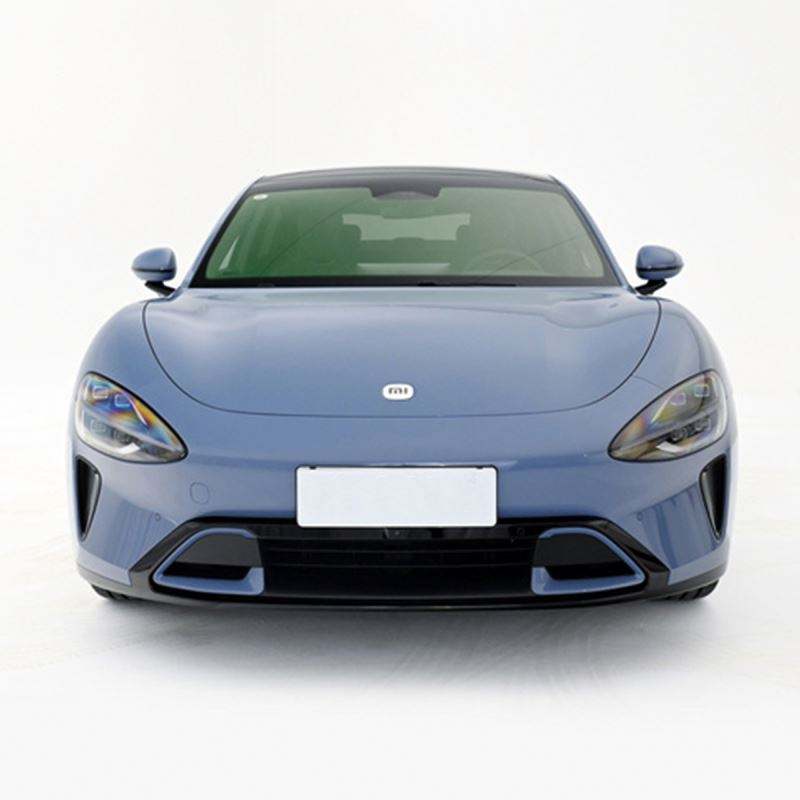

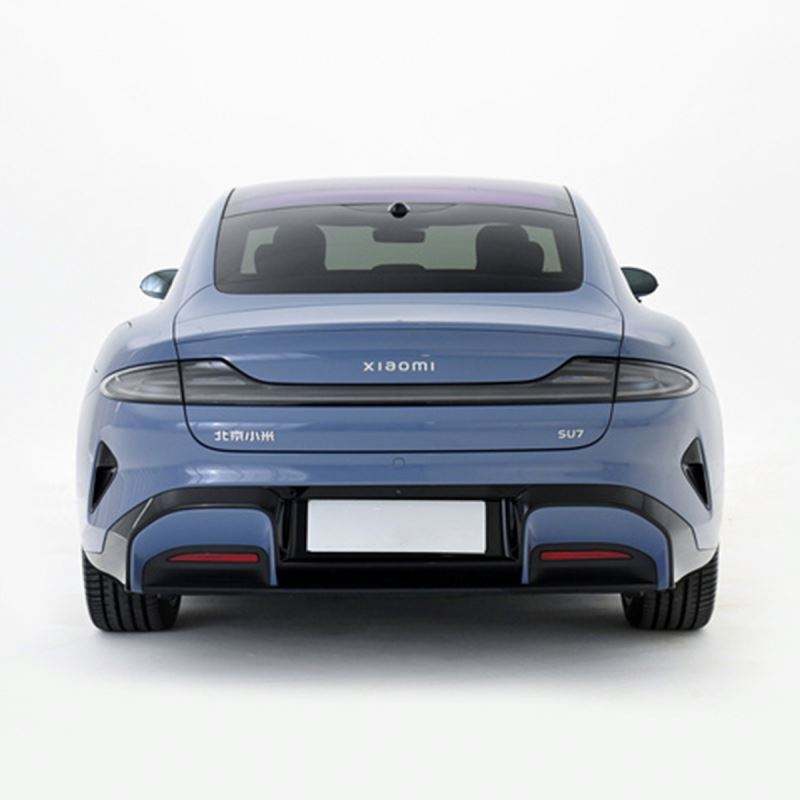

Mi SU7 2024 830km rear drive Pro ultra-long battery life high-end smart driving version |
| Manufacturer |
Mi car |
| level |
Medium and large cars |
| Energy type |
pure electricity |
| time to market |
2024-03-28 |
| CLTC pure electric range [km] |
830 |
| Fast charging time[h] |
0.5 |
| Fast charging capacity [%] |
10-80 |
| Motor[Ps] |
299 |
| gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4997*1963*1455 |
| Body structure |
4-door, 5-seat sedan |
| Maximum speed [km/h] |
210 |
| Official 0-100km/h acceleration [s] |
5.7 |
| Vehicle warranty |
5 years or 100,000 kilometers |
| Exterior color |
|
| interior color |
|
| Body |
|
| Length[mm] |
4997 |
| Width[mm] |
1963 |
| Height[mm] |
1455 |
| Wheelbase [mm] |
3000 |
| Front wheelbase [mm] |
1693 |
| Rear wheelbase [mm] |
1699 |
| Car door opening method |
swing door |
| Number of doors |
4 |
| number of seats |
5 |
| Approach angle [°] |
14 |
| Departure angle[°] |
16 |
| Minimum turning radius [m] |
5.7 |
| Drag coefficient [Cd] |
0.195 |
| Official front trunk volume [L] |
105 |
| Official trunk volume [L] |
517 |
| Curb weight [kg] |
2090 |
| Full load mass [kg] |
2540 |
| electric motor |
|
| Motor brand |
United Electronics |
| Motor model |
TZ220XS000 |
| Number of drive motors |
single motor |
| Motor layout |
rear |
| Motor type |
Permanent magnet synchronization |
| Total motor power [kW] |
220 |
| Total motor horsepower [Ps] |
299 |
| Motor total torque [N·m] |
400 |
| Maximum power of front electric motor [kW] |
- |
| Maximum torque of front electric motor [N·m] |
- |
| Maximum power of rear electric motor [kW] |
220 |
| Maximum torque of rear electric motor [N·m] |
400 |
| Battery/recharge |
|
| Battery Type |
Lithium iron phosphate battery |
| Battery brand |
Ningde era |
| Battery temperature management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
830 |
| Battery power [kWh] |
94.3 |
| Electricity consumption per 100 kilometers [kWhkm] |
- |
| vehicle charging port |
●Slow charging port ●Fast charging port |
| Slow charging port location |
●Car left rear side |
| Fast charging port location |
●Car left rear side |
| High voltage fast charging platform |
●400V platform |
| Energy replenishment speed |
Charging for 15 minutes, replenishing energy for 350 kilometers |
| Fast charging time[min] |
30 |
| Fast charging time[h] |
0.5 |
| Fast charging capacity [%] |
10-80 |
| Slow charging power [kW] |
11 |
| Vehicle battery swap |
- |
| Home charging pile |
○Optional 3999 yuan |
| Car charging gun |
○Optional 799 yuan |
| External discharge function |
● |
| External discharge power |
●3.5kW |
| Battery pack warranty |
8 years or 160,000 kilometers |
| gearbox |
|
| Gearbox description |
Electric vehicle single speed gearbox |
| Gearbox type |
Fixed gear ratio |
| Number of gears |
1 |
| chassis steering |
|
| Drive form |
rear wheel drive |
| four-wheel drive |
- |
| Center differential structure |
- |
| Front suspension type |
Double wishbone independent suspension |
| rear suspension type |
Five-link independent suspension |
| Assist type |
electric assist |
| Adjustable suspension features |
- |
| Adjustable suspension types |
- |
| Body structure |
Load-bearing |
| limited slip differential |
- |
| differential lock |
- |
| wheel brake |
|
| Front brake type |
●Ventilated disc type |
| rear brake type |
●Ventilated disc type |
| Parking brake type |
Electronic parking |
| Front tire specifications |
●245/45 R19○245/40 R20 |
| Rear tire specifications |
●245/45 R19○245/40 R20 |
| Spare tire |
●No spare tire |
