| Basic Information |

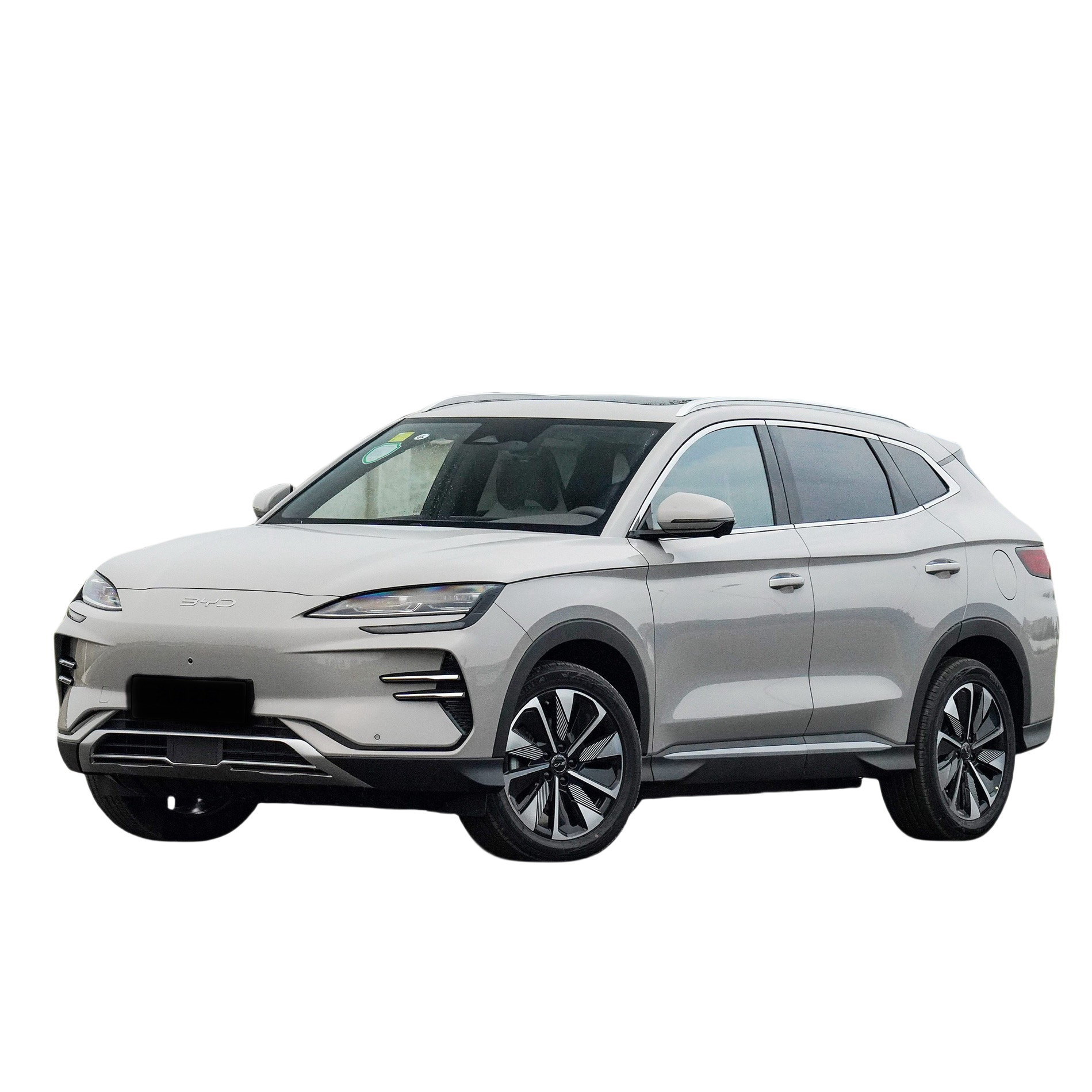

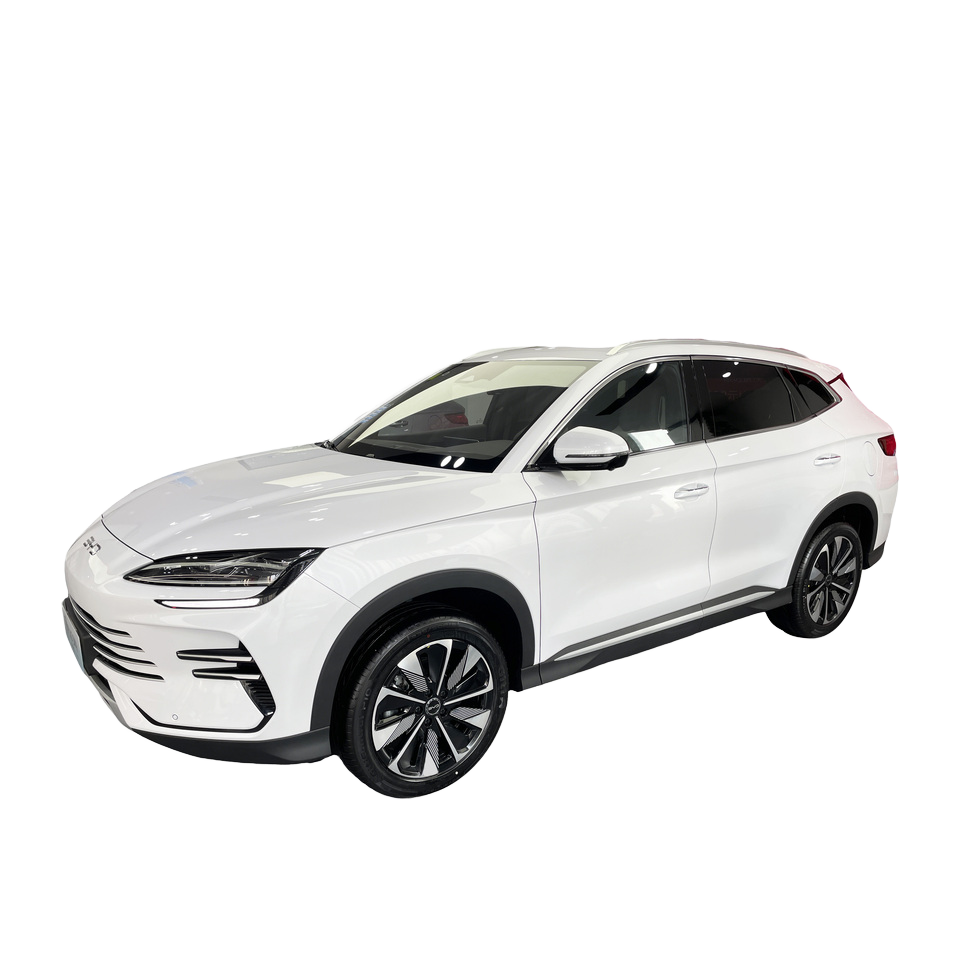

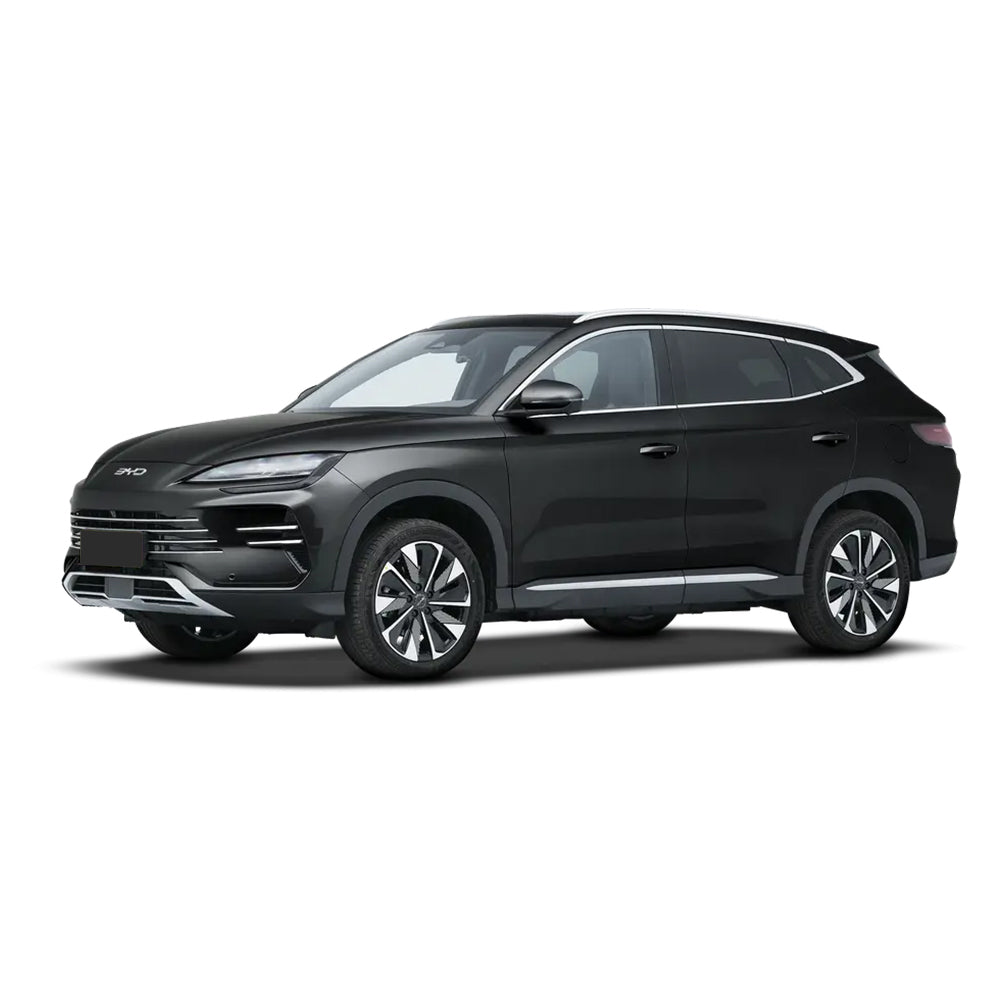

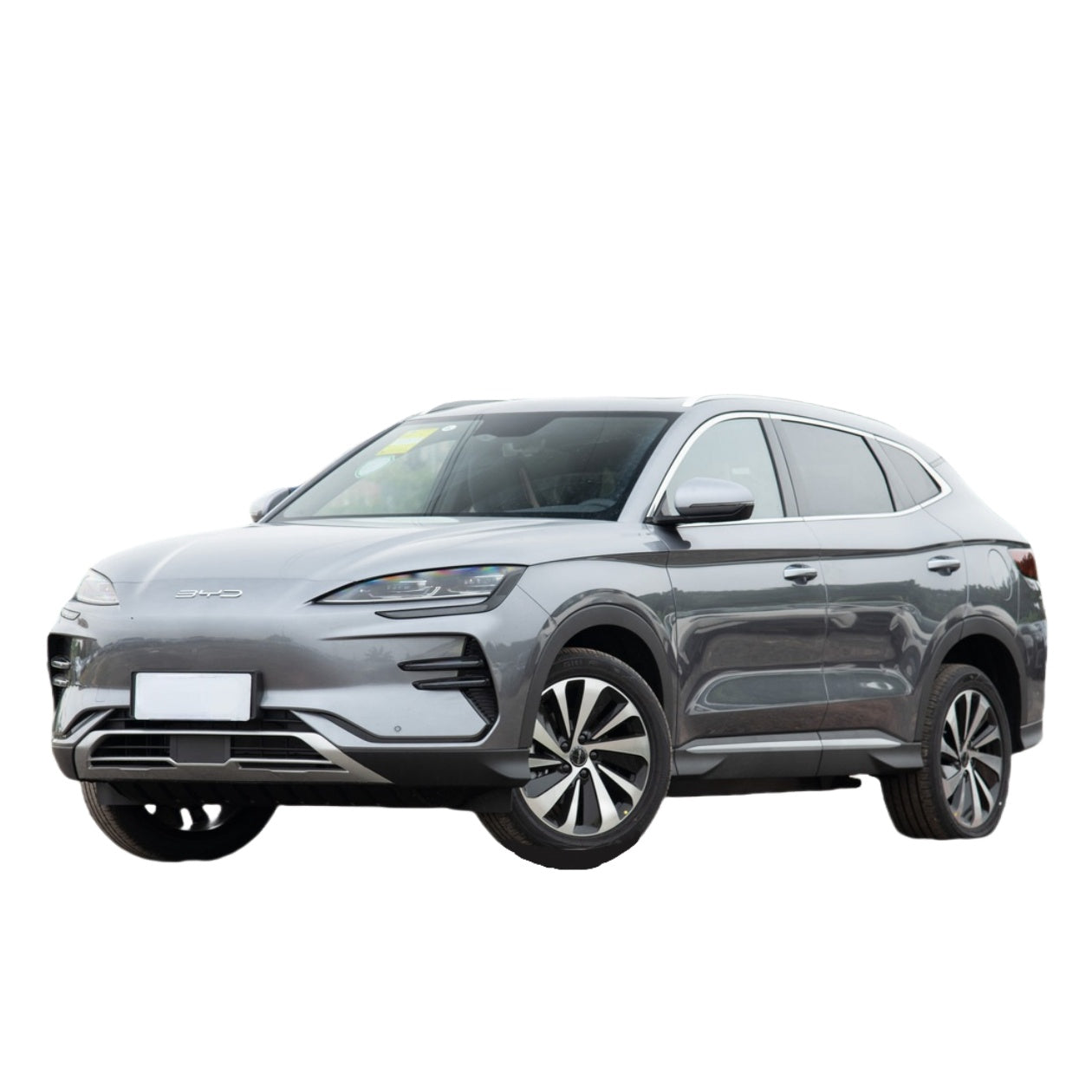

SONG PLUS New Energy 2025 EV Smart Driving Edition 520km Luxury Model |
| Manufacturer |
BYD New Energy |
| level |
Compact SUV |
| Energy Type |
Pure Electric |
| Environmental standards |
- |
| Availability |
2025-02-10 |
| CLTC pure electric cruising range [km] |
520 |
| WLTC pure electric range [km] |
- |
| Fast charging time [minutes] |
30 |
| Fast charge capacity[%] |
30-80 |
| Slow charging time [hours] |
10.2 |
| engine |
- |
| Maximum power [kW] |
- |
| Maximum torque [N·m] |
- |
| Motor [Ps] |
204 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4785*1890*1660 |
| Body structure |
5-door 5-seater SUV |
| Maximum speed [km/h] |
175 |
| Official 0-100km/h acceleration [s] |
- |
| WLTC low-power fuel consumption [Lkm] |
- |
| NEDC low-power fuel consumption [Lkm] |
- |
| Power consumption per 100 km [kWhkm] |
13.7 |
| Vehicle warranty |
6 years or 150,000 km |

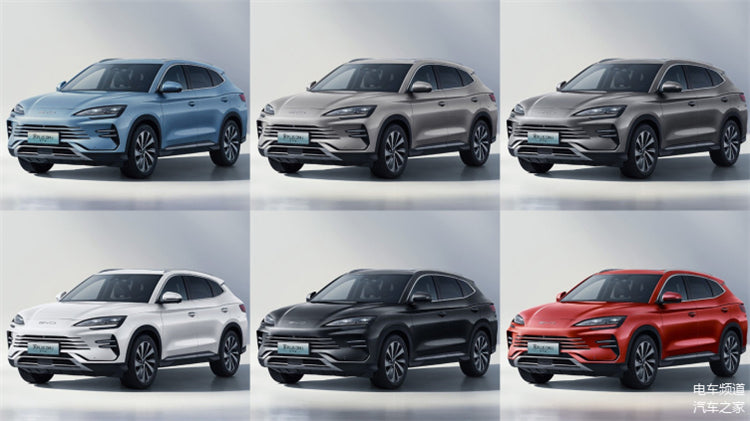

| Appearance Color |
|
| Interior Color |
|
| Body |
|
| Length [mm] |
4785 |
| Width [mm] |
1890 |
| Height [mm] |
1660 |
| Wheelbase [mm] |
2765 |
| Front track [mm] |
1630 |
| Rear track [mm] |
1630 |
| Door opening method |
Swing door |
| Number of doors |
5 |
| Seating capacity |
5 |
| Approach angle [°] |
19 |
| Departure angle [°] |
twenty two |
| Minimum turning radius [m] |
5.55 |
| Fuel tank capacity [L] |
- |
| Official trunk volume [L] |
574-1477 |
| Curb weight[kg] |
1920 |
| Full load mass [kg] |
2295 |
| engine |
|
| Engine Model |
- |
| Displacement [mL] |
- |
| Displacement [L] |
- |
| Air intake form |
- |
| Engine layout |
- |
| Cylinder arrangement |
- |
| Number of cylinders |
- |
| Number of valves per cylinder |
- |
| Valve mechanism |
- |
| Maximum power [kW] |
- |
| Maximum horsepower [Ps] |
- |
| Maximum torque [N·m] |
- |
| Maximum torque speed [rpm] |
- |
| Maximum net power [kW] |
- |
| Fuel grade |
- |
| Oil supply method |
- |
| Cylinder head material |
- |
| Cylinder material |
- |
| Environmental standards |
- |
| Electric Motor |
|
| Motor brand |
BYD |
| Motor Model |
TQ200XSQ |
| Number of drive motors |
Single motor |
| Motor layout |
Pre |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
150 |
| Total motor horsepower [Ps] |
204 |
| Total torque of the motor [N·m] |
310 |
| Maximum power of front motor [kW] |
150 |
| Maximum torque of front motor [N·m] |
310 |
| Battery/Energy Recharge |
|
| Battery Type |
Lithium iron phosphate battery |
| Battery brand |
Fudi |
| Battery Temperature Management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
520 |
| WLTC pure electric range [km] |
- |
| CLTC comprehensive endurance [km] |
- |
| Battery capacity [kWh] |
71.8 |
| Power consumption per 100 km [kWhkm] |
13.7 |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
●Right rear side of the vehicle |
| Fast charging port location |
● Left rear side of the vehicle |
| High voltage fast charging platform |
●400V platform |
| Fast charging power [kW] |
90 |
| Fast charging time[min] |
30 |
| Fast charging time[h] |
0.5 |
| Fast charge capacity[%] |
30-80 |
| Slow charging power [kW] |
7 |
| Slow charging time [h] |
10.2 |
| Vehicle battery replacement |
- |
| Home charging station |
- |
| On-board charging gun |
● |
| External discharge function |
● |
| VTOL external discharge power |
3.3kW |
| Battery Pack Warranty |
8 years or 150,000 km |
| First Owner Battery Pack Warranty |
Unlimited years/unlimited mileage (liability exemption clauses are subject to official regulations) |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Front front drive |
| Four-wheel drive |
- |
| Center differential structure |
- |
| Front suspension type |
McPherson independent suspension |
| Rear suspension type |
Multi-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
- |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
Solid disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
235/50 R19 |
| Rear tire specifications |
235/50 R19 |
| Spare tire |
●Tire repair tool only |
