| Basic Information |

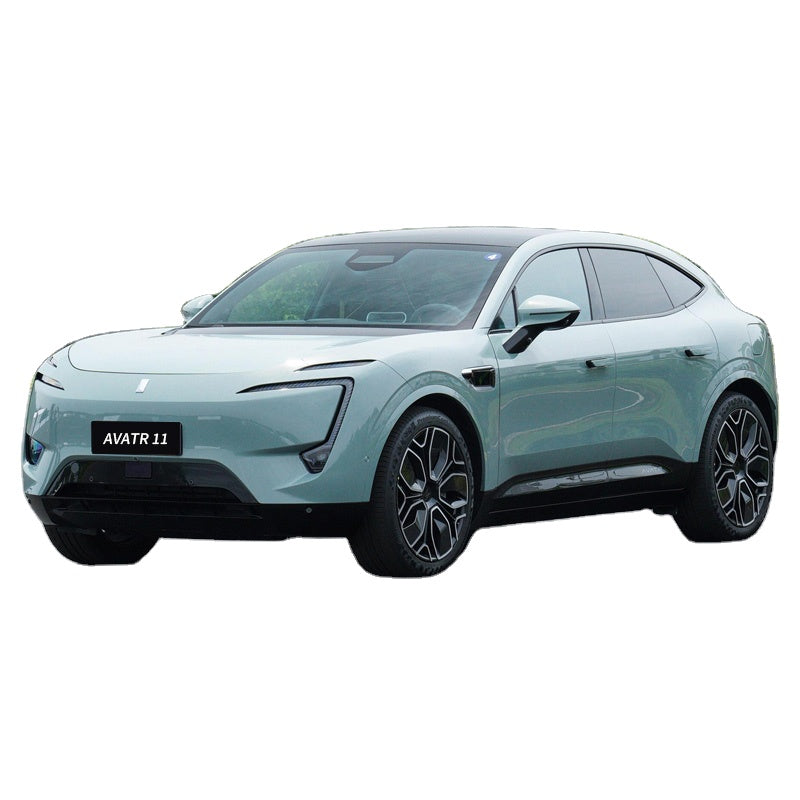

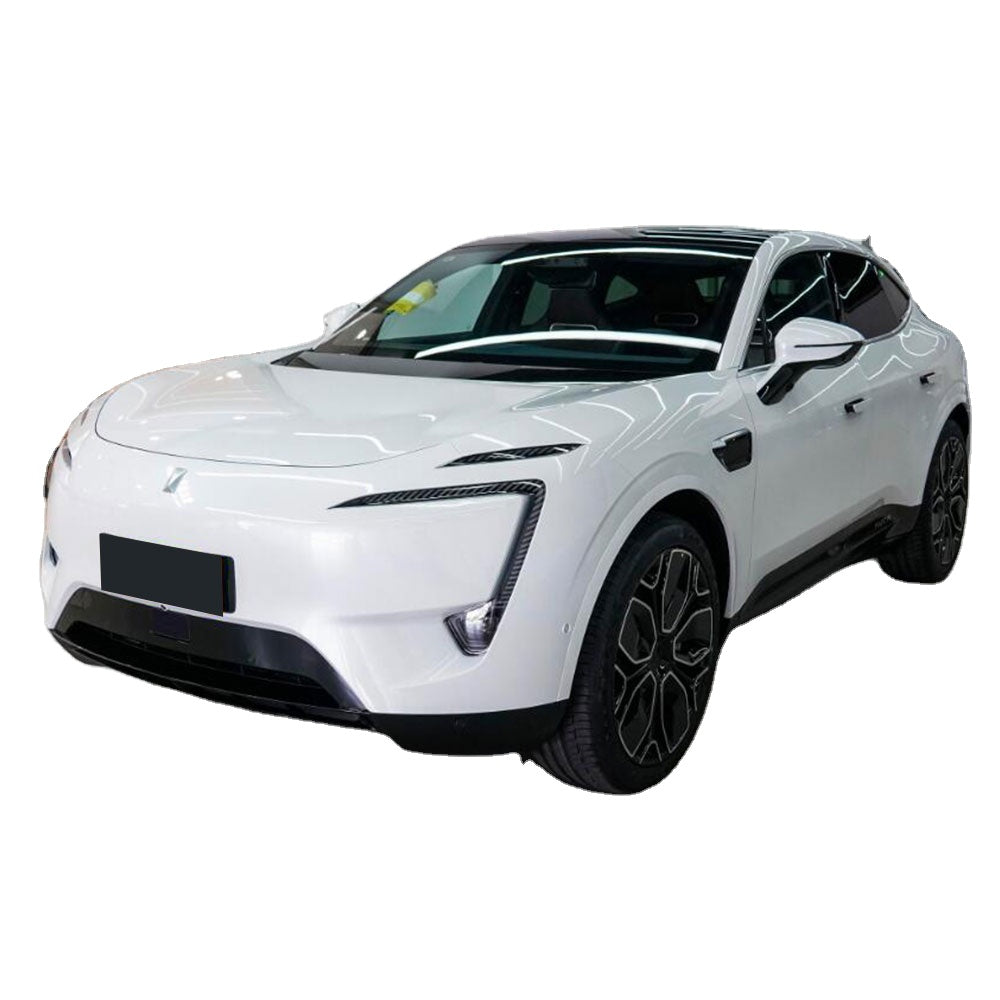

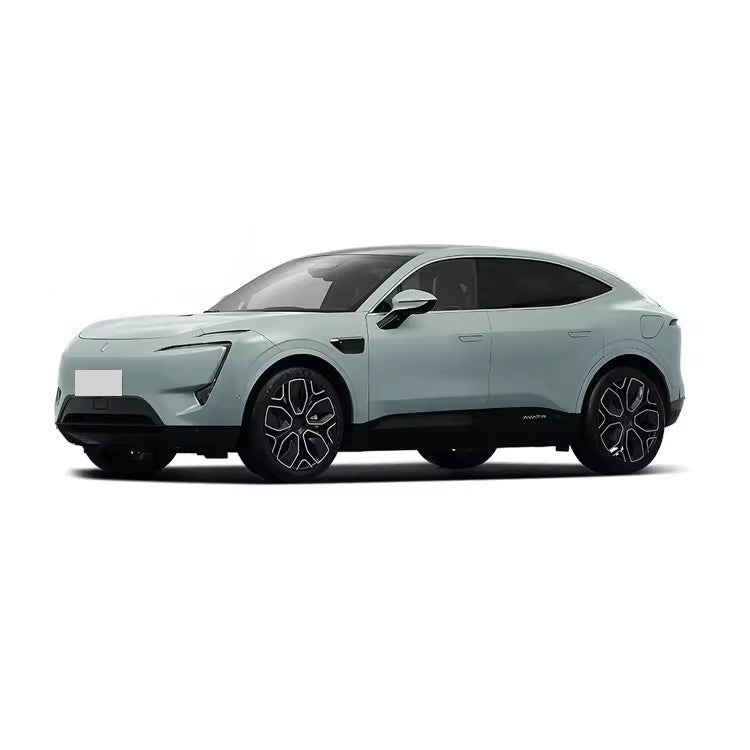

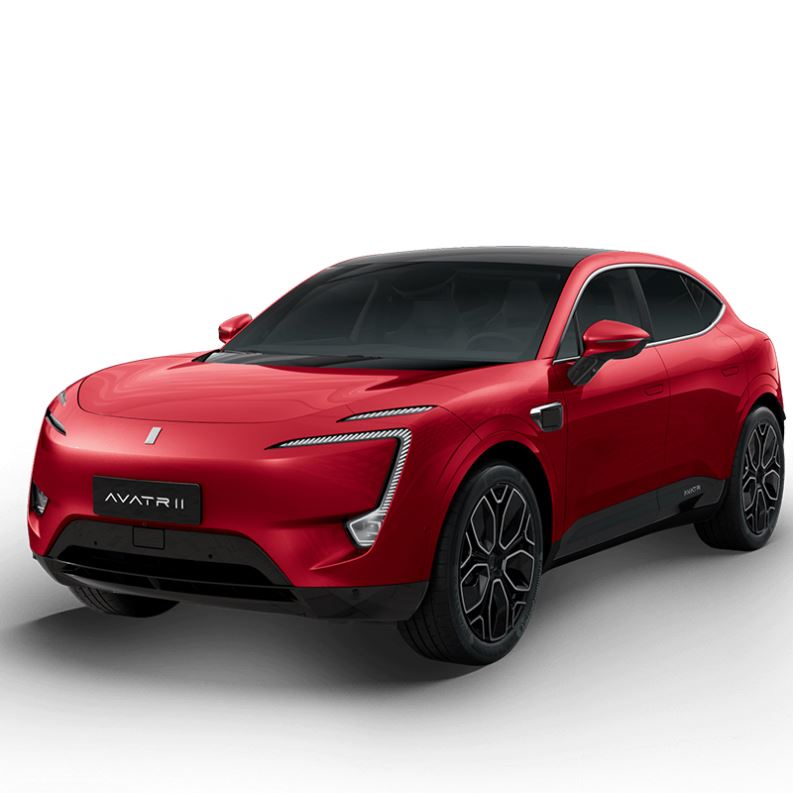

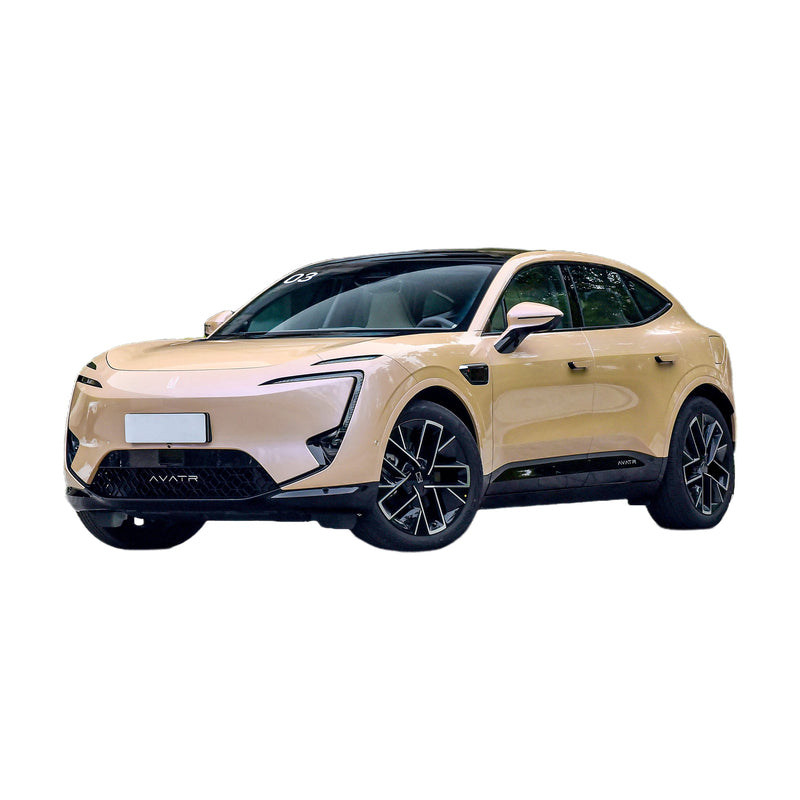

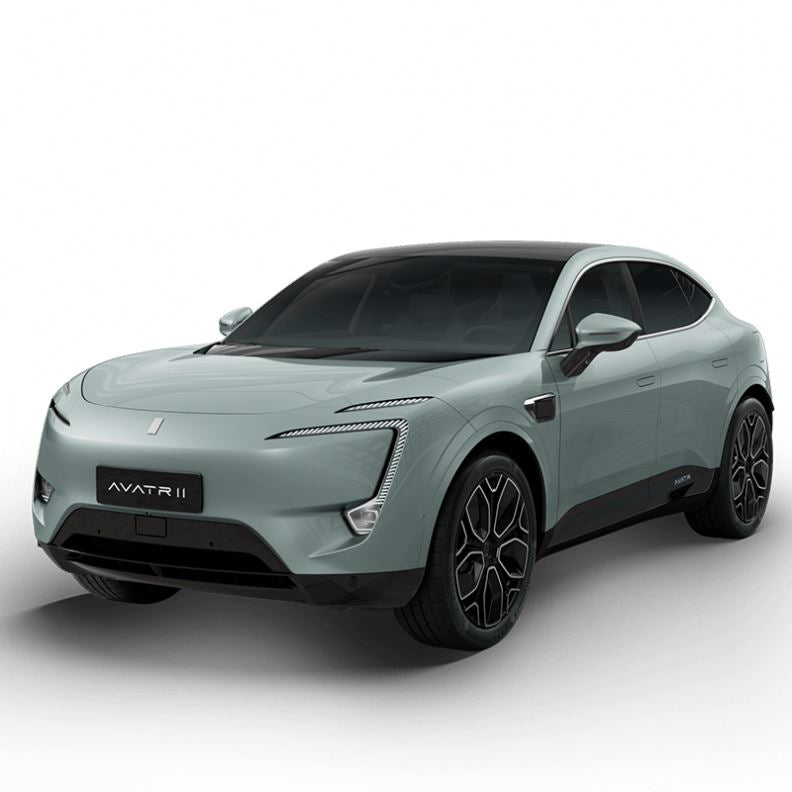

AVATR 11 2024 730km RWD Triple Laser Luxury Edition 5 Seaters |
| Manufacturer |
AVATR Technology |
| level |
Medium and large SUV |
| Energy Type |
Pure Electric |
| Environmental standards |
- |
| Availability |
2024-04-25 |
| CLTC pure electric cruising range [km] |
730 |
| Fast charging time [minutes] |
25 |
| Fast charge capacity[%] |
30-80 |
| Slow charging time [hours] |
13.5 |
| Slow charging capacity[%] |
0-100 |
| engine |
- |
| Maximum power [kW] |
- |
| Motor [Ps] |
313 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4880*1970*1601 |
| Body structure |
4-door 5-seater SUV |
| Maximum speed [km/h] |
200 |
| Official 0-100km/h acceleration [s] |
6.9 |
| Power consumption per 100 km [kWhkm] |
18.35 |
| Vehicle warranty |
5 years or 120,000 km |
| Appearance Color |
|
| Interior Color |
|
| Body |
|
| Length [mm] |
4880 |
| Width [mm] |
1970 |
| Height [mm] |
1601 |
| Wheelbase [mm] |
2975 |
| Front track [mm] |
1678 |
| Rear track [mm] |
1678 |
| Door opening method |
Swing door |
| Number of doors |
4 |
| Seating capacity |
5 |
| Approach angle [°] |
20 |
| Departure angle [°] |
twenty three |
| Official front trunk volume [L] |
95 |
| Official trunk volume [L] |
489 |
| Curb weight[kg] |
2240 |
| Full load mass [kg] |
2655 |
| engine |
|
| Engine Model |
- |
| Displacement [mL] |
- |
| Displacement [L] |
- |
| Air intake form |
- |
| Engine layout |
- |
| Cylinder arrangement |
- |
| Number of cylinders |
- |
| Number of valves per cylinder |
- |
| Valve mechanism |
- |
| Maximum power [kW] |
- |
| Maximum horsepower [Ps] |
- |
| Maximum net power [kW] |
- |
| Fuel grade |
- |
| Oil supply method |
- |
| Cylinder head material |
- |
| Cylinder material |
- |
| Environmental standards |
- |
| Electric Motor |
|
| Motor Brand |
Huawei Technologies |
| Motor Model |
TZ210XY584 |
| Number of drive motors |
Single motor |
| Motor layout |
Post |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
230 |
| Total motor horsepower [Ps] |
313 |
| Total torque of the motor [N·m] |
370 |
| Maximum power of front motor [kW] |
- |
| Maximum torque of front motor [N·m] |
- |
| Maximum power of rear motor [kW] |
230 |
| Maximum torque of rear motor [N·m] |
370 |
| Battery/Energy Recharge |
|
| Battery Type |
Ternary lithium battery |
| Battery brand |
CATL |
| Battery Temperature Management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
730 |
| CLTC comprehensive endurance [km] |
- |
| Battery capacity [kWh] |
116 |
| Battery energy density [Wh/kg] |
190 |
| Power consumption per 100 km [kWhkm] |
18.35 |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
● Left rear side of the vehicle |
| Fast charging port location |
● Left rear side of the vehicle |
| High voltage fast charging platform |
●800V platform |
| Energy replenishment speed |
10 minutes of charging, 200 km of range |
| Fast charging power [kW] |
240 |
| Fast charging time[min] |
25 |
| Fast charging time[h] |
0.42 |
| Fast charge capacity[%] |
30-80 |
| Slow charging power [kW] |
11 |
| Slow charging time[h] |
13.5 |
| Slow charging capacity[%] |
0-100 |
| Vehicle battery replacement |
- |
| Home charging station |
○ |
| On-board charging gun |
○ |
| External discharge function |
● |
| VTOL external discharge power |
3.3kW |
| Battery Pack Warranty |
8 years or 160,000 km |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Rear-engine, rear-wheel drive |
| Four-wheel drive |
- |
| Center differential structure |
- |
| Front suspension type |
Double wishbone independent suspension |
| Rear suspension type |
Five-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
- |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
●Ventilated disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
●265/45 R21○265/40 R22 |
| Rear tire specifications |
●265/45 R21○265/40 R22 |
| Spare tire |
No spare tire |
