| Basic Information |

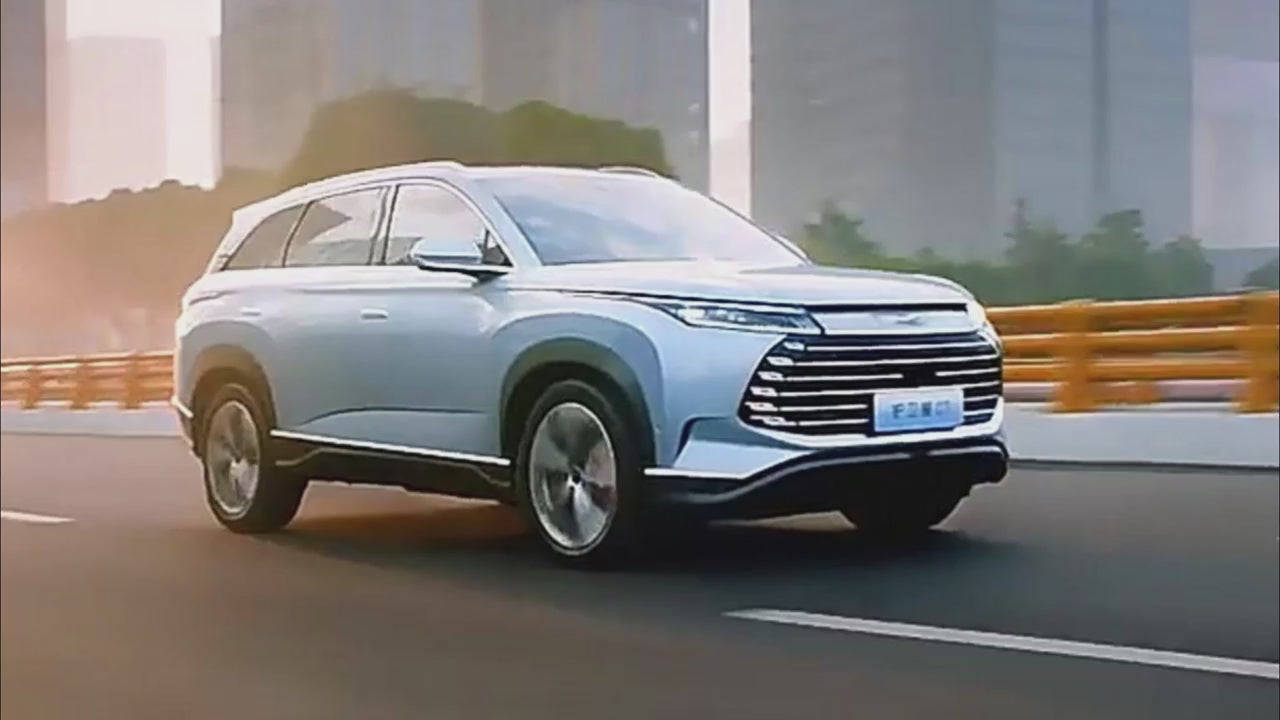

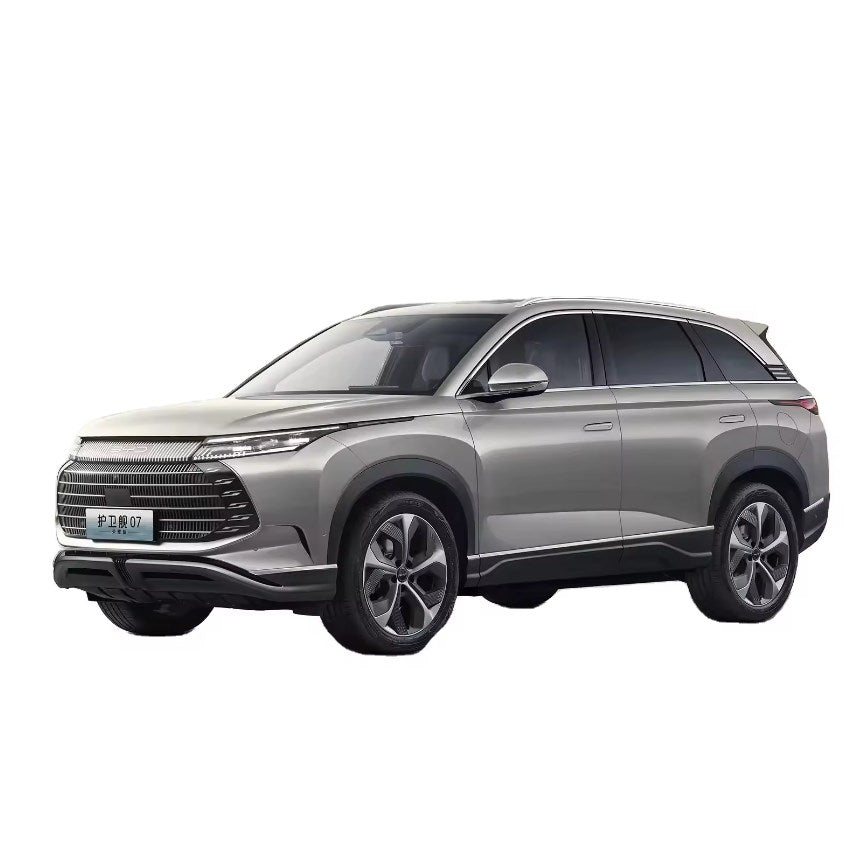

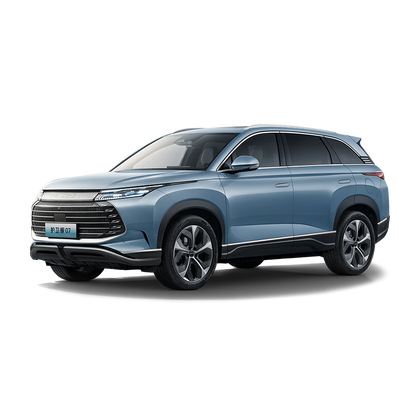

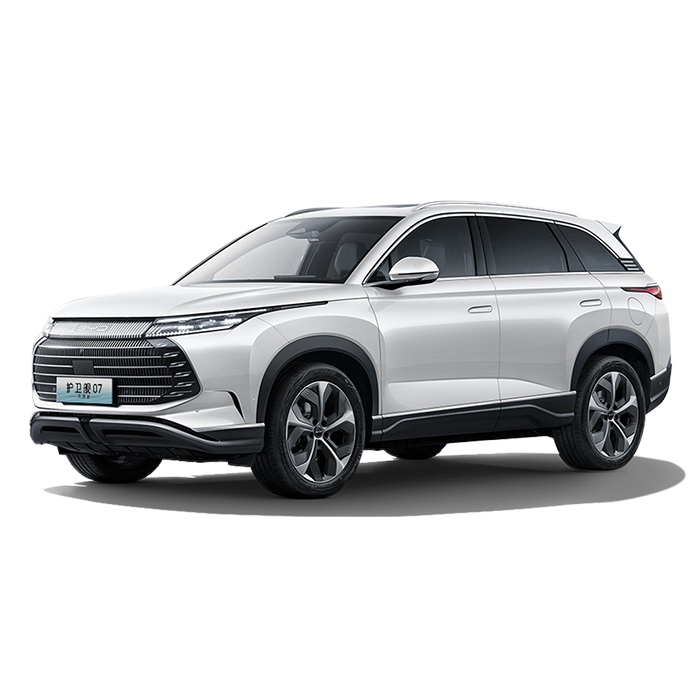

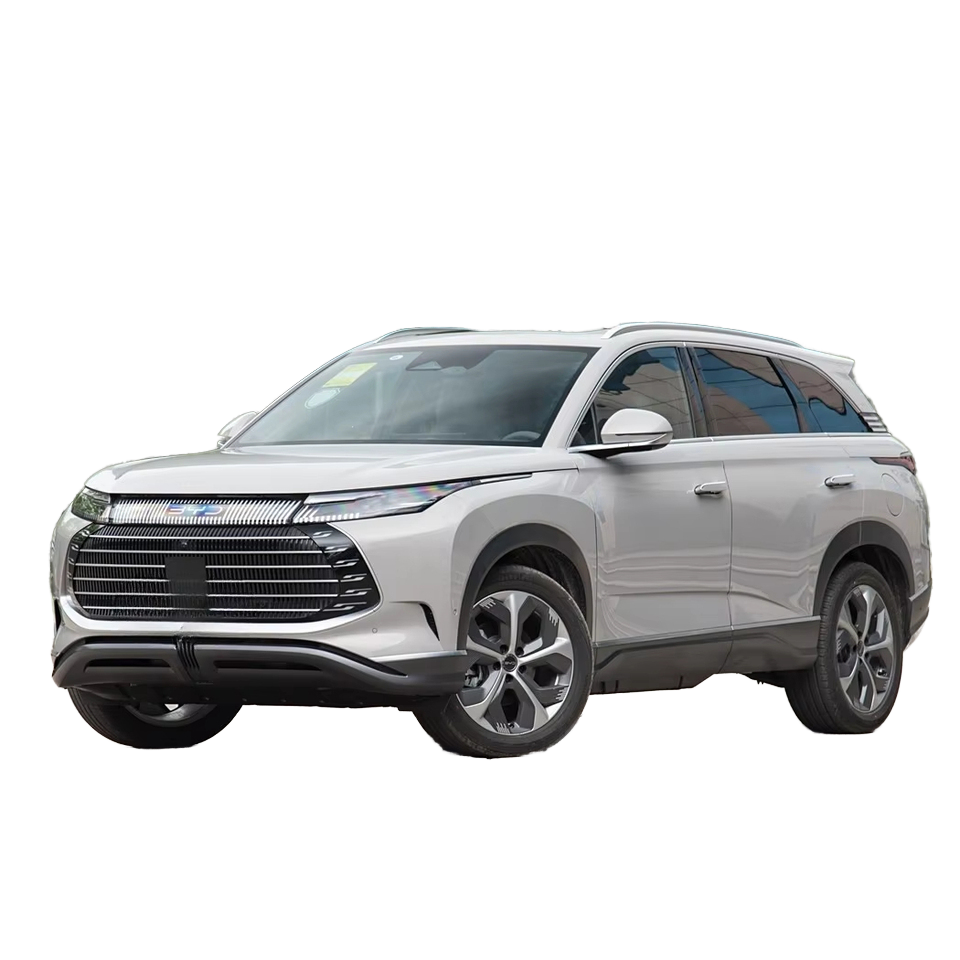

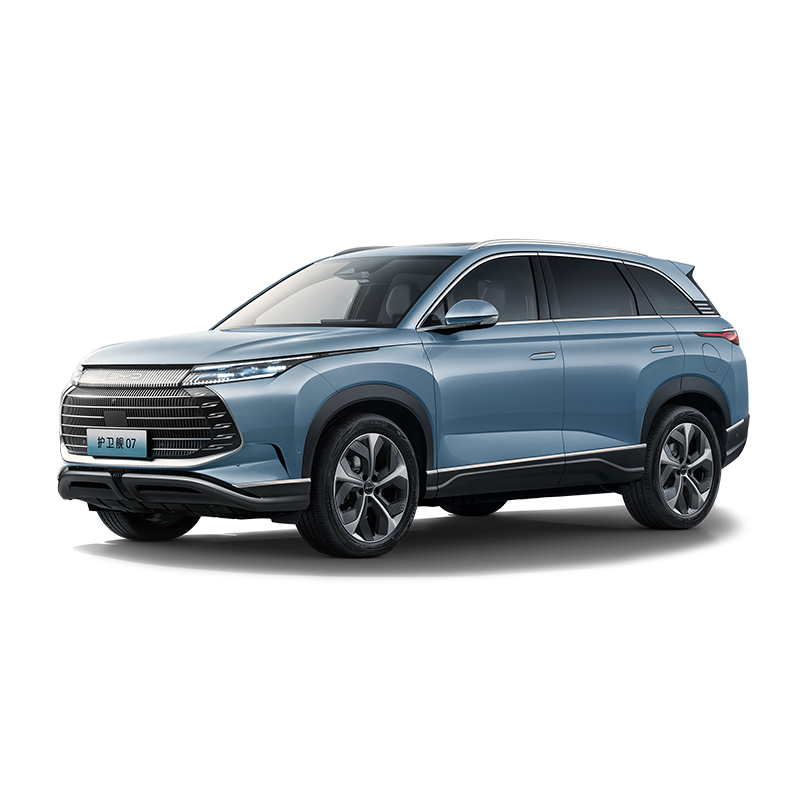

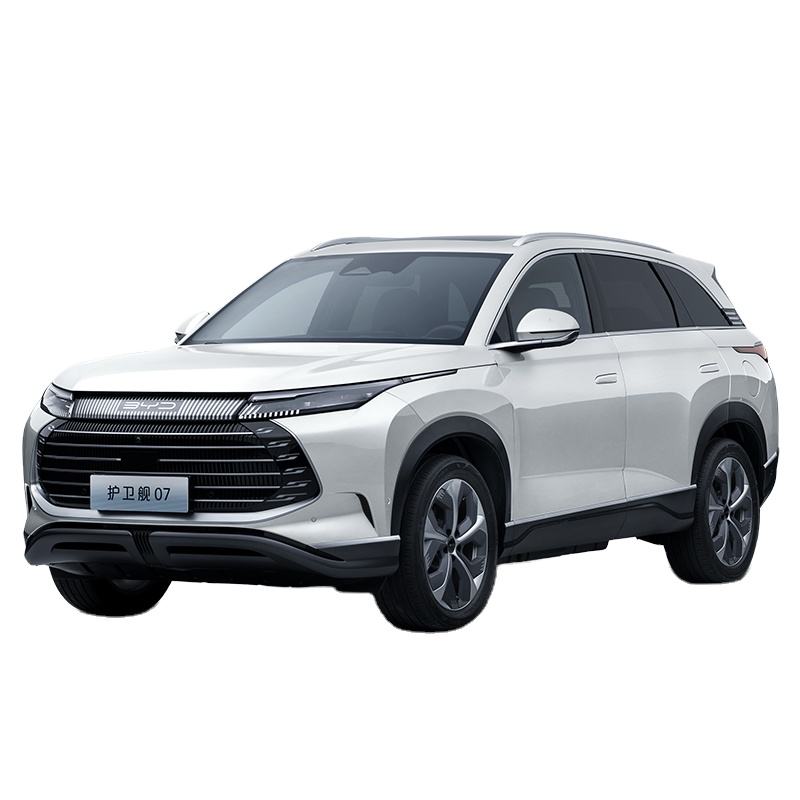

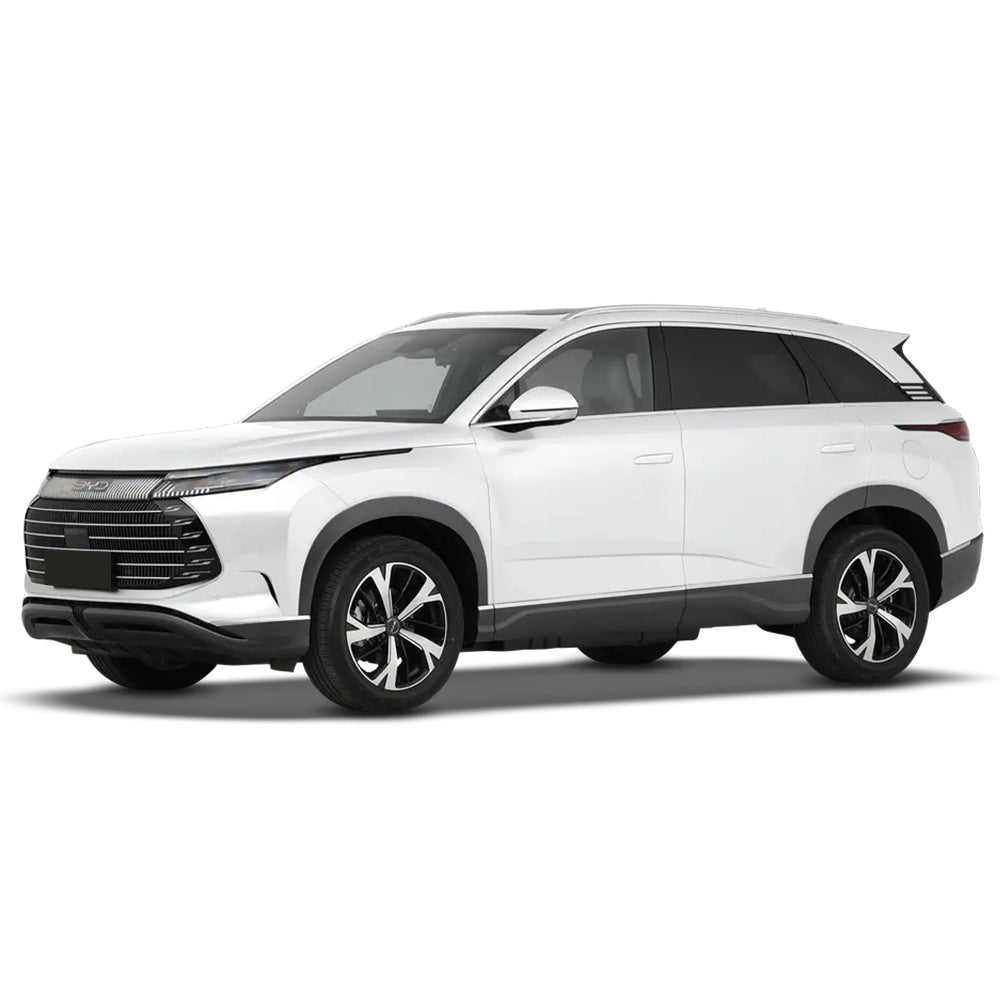

Frigate 07 2024 Honor version DM-i1.5T 205km two-wheel drive flagship model |
| Manufacturer |
BYD·New Energy |
| level |
Medium SUV |
| Energy type |
plug-in hybrid |
| Environmental protection standards |
National VI |
| time to market |
2024-03-18 |
| WLTC pure electric range [km] |
170 |
| NEDC pure electric range [km] |
205 |
| Fast charging time[h] |
0.33 |
| Fast charging capacity [%] |
30-80 |
| Slow charging time[h] |
5.5 |
| Slow charging capacity[%] |
0-100 |
| engine |
1.5T139 horsepower L4 |
| Maximum power/maximum torque |
102kWN·m |
| Motor[Ps] |
197 |
| gearbox |
Electronic continuously variable transmission (E-CVT) |
| Length*width*height[mm] |
4820*1920*1750 |
| Body structure |
5-door, 5-seater SUV |
| Maximum speed [km/h] |
180 |
| Official 0-100km/h acceleration [s] |
8.9 |
| WLTC combined fuel consumption [Lkm] |
1.42 |
| Fuel consumption in low power state [Lkm] |
5.8 |
| Vehicle warranty |
6 years or 150,000 kilometers |
| Exterior color |
|
| interior color |
|
| Body |
|
| Length[mm] |
4820 |
| Width[mm] |
1920 |
| Height[mm] |
1750 |
| Wheelbase [mm] |
2820 |
| Front wheelbase [mm] |
1640 |
| Rear wheelbase [mm] |
1640 |
| Car door opening method |
swing door |
| Number of doors |
5 |
| number of seats |
5 |
| Approach angle [°] |
19 |
| Departure angle[°] |
twenty two |
| Minimum ground clearance with full load [mm] |
150 |
| Minimum ground clearance without load [mm] |
180 |
| Minimum turning radius [m] |
5.8 |
| Fuel tank volume [L] |
60 |
| Official trunk volume [L] |
615-1865 |
| Curb weight [kg] |
2140 |
| Full load mass [kg] |
2515 |
| engine |
|
| engine model |
BYD476ZQC |
| Displacement [mL] |
1497 |
| Displacement[L] |
1.5 |
| Intake form |
turbocharging |
| Engine layout |
horizontal |
| Cylinder arrangement |
L |
| Number of cylinders [number] |
4 |
| Number of valves per cylinder [number] |
4 |
| Compression ratio |
12.5 |
| Air Supply |
DOHC |
| Maximum power [kW] |
102 |
| Maximum horsepower[Ps] |
139 |
| Maximum power speed [rpm] |
5200 |
| Maximum torque [N·m] |
231 |
| Maximum torque speed [rpm] |
1350-4000 |
| Maximum net power [kW] |
96 |
| fuel mark |
No. 92 |
| Fuel supply method |
direct injection |
| Cylinder head material |
Aluminum alloy |
| Cylinder material |
Aluminum alloy |
| Environmental protection standards |
National VI |
| electric motor |
|
| Motor brand |
BYD |
| Motor model |
TZ220XYG |
| Number of drive motors |
single motor |
| Motor layout |
prefix |
| Motor type |
Permanent magnet synchronization |
| Total motor power [kW] |
145 |
| Total motor horsepower [Ps] |
197 |
| Motor total torque [N·m] |
316 |
| Maximum power of front electric motor [kW] |
145 |
| Maximum torque of front electric motor [N·m] |
316 |
| Maximum power of rear electric motor [kW] |
- |
| Maximum torque of rear electric motor [N·m] |
- |
| Battery/recharge |
|
| Battery Type |
Lithium iron phosphate battery |
| Battery brand |
Xi'an Zhongdi |
| Battery temperature management |
●Low temperature heating ●Liquid cooling |
| WLTC pure electric range [km] |
170 |
| NEDC pure electric range [km] |
205 |
| Battery power [kWh] |
36.8 |
| Electricity consumption per 100 kilometers [kWhkm] |
22.1 |
| vehicle charging port |
●Slow charging port ●Fast charging port |
| Slow charging port location |
●Right rear side of car |
| Fast charging port location |
●Right rear side of car |
| High voltage fast charging platform |
●400V platform |
| Fast charging power [kW] |
75 |
| Fast charging time[min] |
20 |
| Fast charging time[h] |
0.33 |
| Fast charging capacity [%] |
30-80 |
| Slow charging time[h] |
5.5 |
| Slow charging capacity[%] |
0-100 |
| Vehicle battery swap |
- |
| Home charging pile |
● |
| Car charging gun |
● |
| External discharge function |
● |
| External discharge power |
●6kW |
| Battery pack warranty |
8 years or 150,000 kilometers |
| First owner battery pack warranty |
Unlimited years/unlimited mileage (the liability exemption clause shall be subject to the official) |
| gearbox |
|
| Gearbox description |
E-CVT continuously variable transmission |
| Gearbox type |
Electronic continuously variable transmission (E-CVT) |
| Number of gears |
- |
| chassis steering |
|
| Drive form |
Front wheel drive |
| four-wheel drive |
- |
| Center differential structure |
- |
| Front suspension type |
MacPherson independent suspension |
| rear suspension type |
Multi-link independent suspension |
| Assist type |
electric assist |
| Adjustable suspension features |
●Soft and hard adjustment |
| Adjustable suspension types |
- |
| Body structure |
Load-bearing |
| limited slip differential |
- |
| differential lock |
- |
| wheel brake |
|
| Front brake type |
●Ventilated disc type |
| rear brake type |
●Solid disc type |
| Parking brake type |
Electronic parking |
| Front tire specifications |
●245/50 R20 |
| Rear tire specifications |
●245/50 R20 |
| Spare tire |
●Tire repair tools only |
