| Basic Information |

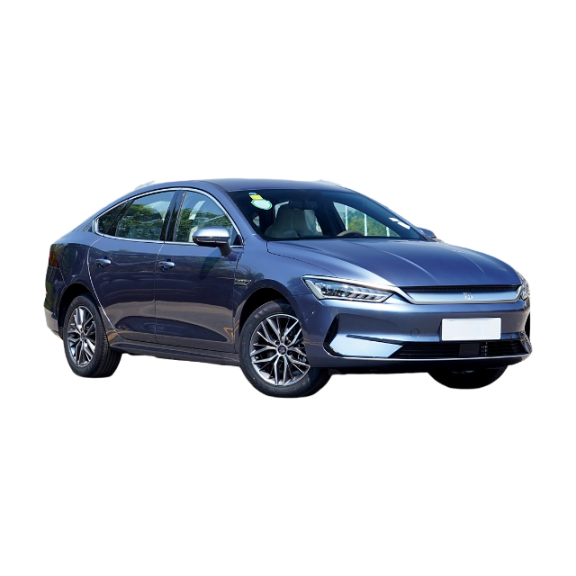

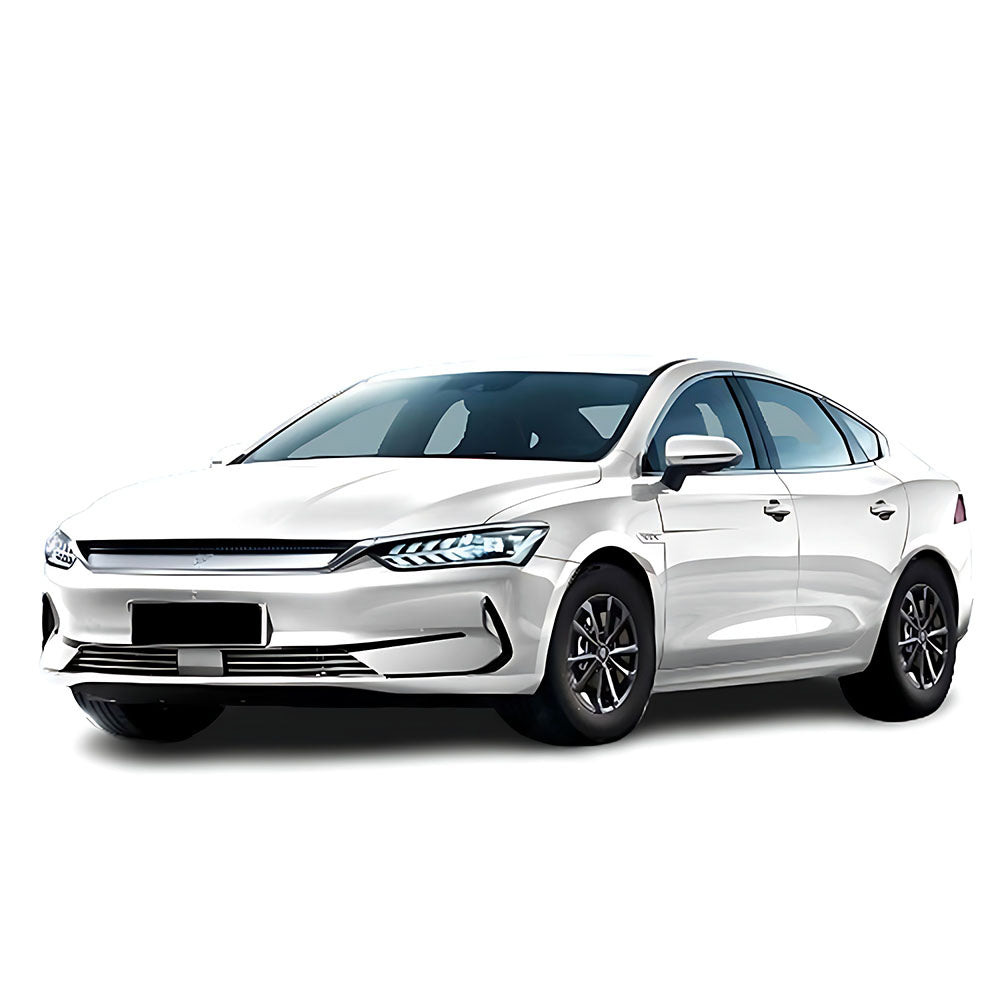

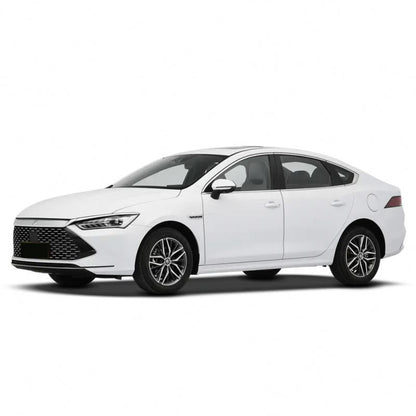

QIN PLUS New Energy 2025 DM-i Intelligent Driving Edition 1.5L 120km Beyond Edition |
| Manufacturer |
BYD New Energy |
| level |
Compact car |
| Energy Type |
Plug-in hybrid |
| Environmental standards |
National VI |
| Availability |
2025-02-10 |
| CLTC pure electric cruising range [km] |
120 |
| WLTC pure electric range [km] |
- |
| NEDC pure electric range [km] |
- |
| Fast charging time [minutes] |
- |
| Fast charge capacity[%] |
- |
| Slow charging time [hours] |
5.55 |
| engine |
1.5L 101HP L4 |
| Maximum power [kW] |
74 |
| Maximum torque [N·m] |
126 |
| Motor [Ps] |
163 |
| Gearbox |
Electronic Continuously Variable Transmission (E-CVT) |
| Length*width*height[mm] |
4780*1837*1515 |
| Body structure |
4-door 5-seater sedan |
| Maximum speed [km/h] |
180 |
| Official 0-100km/h acceleration [s] |
7.6 |
| WLTC comprehensive fuel consumption [Lkm] |
- |
| WLTC low-power fuel consumption [Lkm] |
- |
| CLTC low battery fuel consumption [Lkm] |
3.98 |
| NEDC low-power fuel consumption [Lkm] |
3.08 |
| Power consumption per 100 km [kWhkm] |
- |
| Vehicle warranty |
6 years or 150,000 km |
| Appearance Color |
|
| Interior Color |
|
| Body |
|
| Length [mm] |
4780 |
| Width [mm] |
1837 |
| Height [mm] |
1515 |
| Wheelbase [mm] |
2718 |
| Front track [mm] |
1580 |
| Rear track [mm] |
1590 |
| Door opening method |
Swing door |
| Number of doors |
4 |
| Seating capacity |
5 |
| Approach angle [°] |
13 |
| Departure angle [°] |
16 |
| Minimum turning radius [m] |
5.5 |
| Fuel tank capacity [L] |
65 |
| Official trunk volume [L] |
500 |
| Curb weight[kg] |
1580 |
| Full load mass [kg] |
1955 |
| engine |
|
| Engine Model |
BYD472QC |
| Displacement [mL] |
1498 |
| Displacement [L] |
1.5 |
| Air intake form |
Naturally Aspirated |
| Engine layout |
Sideways |
| Cylinder arrangement |
L |
| Number of cylinders |
4 |
| Number of valves per cylinder |
4 |
| Compression ratio |
- |
| Valve mechanism |
DOHC |
| Maximum power [kW] |
74 |
| Maximum horsepower [Ps] |
101 |
| Maximum power speed [rpm] |
- |
| Maximum torque [N·m] |
126 |
| Maximum torque speed [rpm] |
- |
| Maximum net power [kW] |
70 |
| Fuel grade |
No. 92 |
| Oil supply method |
Multi-point EFI |
| Cylinder head material |
Aluminum Alloy |
| Cylinder material |
Aluminum Alloy |
| Environmental standards |
National VI |
| Electric Motor |
|
| Motor brand |
BYD |
| Motor Model |
TZ210QYA |
| Number of drive motors |
Single motor |
| Motor layout |
Pre |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
120 |
| Total motor horsepower [Ps] |
163 |
| Total torque of the motor [N·m] |
210 |
| Maximum power of front motor [kW] |
120 |
| Maximum torque of front motor [N·m] |
210 |
| Battery/Energy Recharge |
|
| Battery Type |
Lithium iron phosphate battery |
| Battery brand |
Fudi |
| Battery Temperature Management |
●Low temperature heating ●Refrigerant cooling |
| CLTC pure electric range [km] |
120 |
| WLTC pure electric range [km] |
- |
| NEDC pure electric range [km] |
- |
| Battery capacity [kWh] |
15.87 |
| Battery energy density [Wh/kg] |
- |
| Power consumption per 100 km [kWhkm] |
- |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
●Right rear side of the vehicle |
| Fast charging port location |
●Right rear side of the vehicle |
| High voltage fast charging platform |
●400V platform |
| Fast charging power [kW] |
15 |
| Fast charging time[min] |
- |
| Fast charging time[h] |
- |
| Fast charge capacity[%] |
- |
| Slow charging power [kW] |
3.3 |
| Slow charging time [h] |
5.55 |
| Vehicle battery replacement |
- |
| Home charging station |
- |
| On-board charging gun |
● |
| External discharge function |
● |
| VTOL external discharge power |
3.3kW |
| Battery Pack Warranty |
8 years or 150,000 km |
| First Owner Battery Pack Warranty |
Unlimited years/unlimited mileage (liability exemption clauses are subject to official regulations) |
| Gearbox |
|
| Gearbox Description |
E-CVT continuously variable transmission |
| Gearbox Type |
Electronic Continuously Variable Transmission (E-CVT) |
| Number of gears |
- |
| Chassis steering |
|
| Drive type |
Front front drive |
| Four-wheel drive |
- |
| Center differential structure |
- |
| Front suspension type |
McPherson independent suspension |
| Rear suspension type |
Torsion beam non-independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
- |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
Solid disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
225/60 R16 |
| Rear tire specifications |
225/60 R16 |
| Spare tire |
No spare tire |
