| Basic Information |

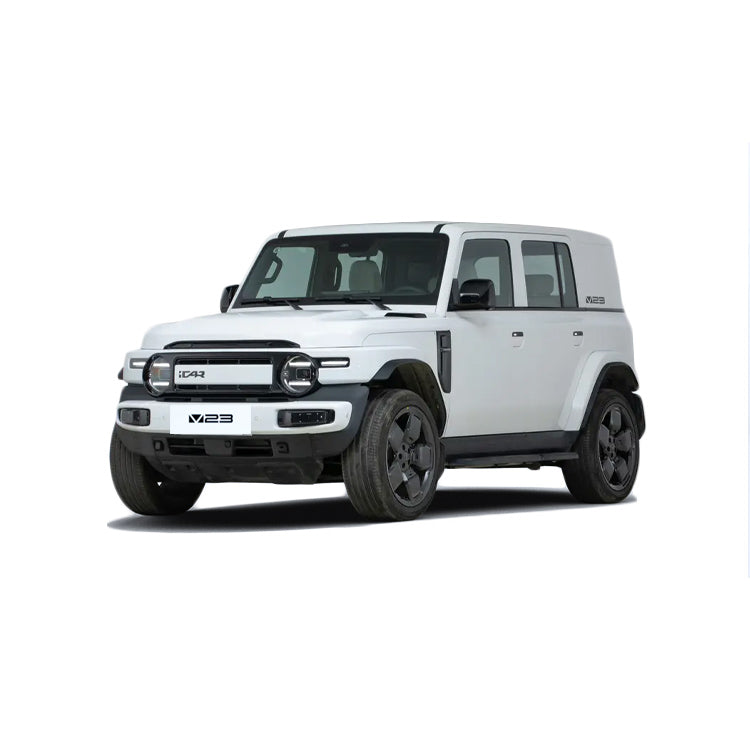

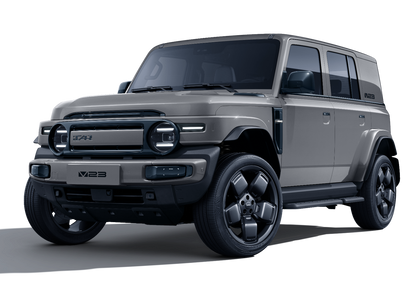

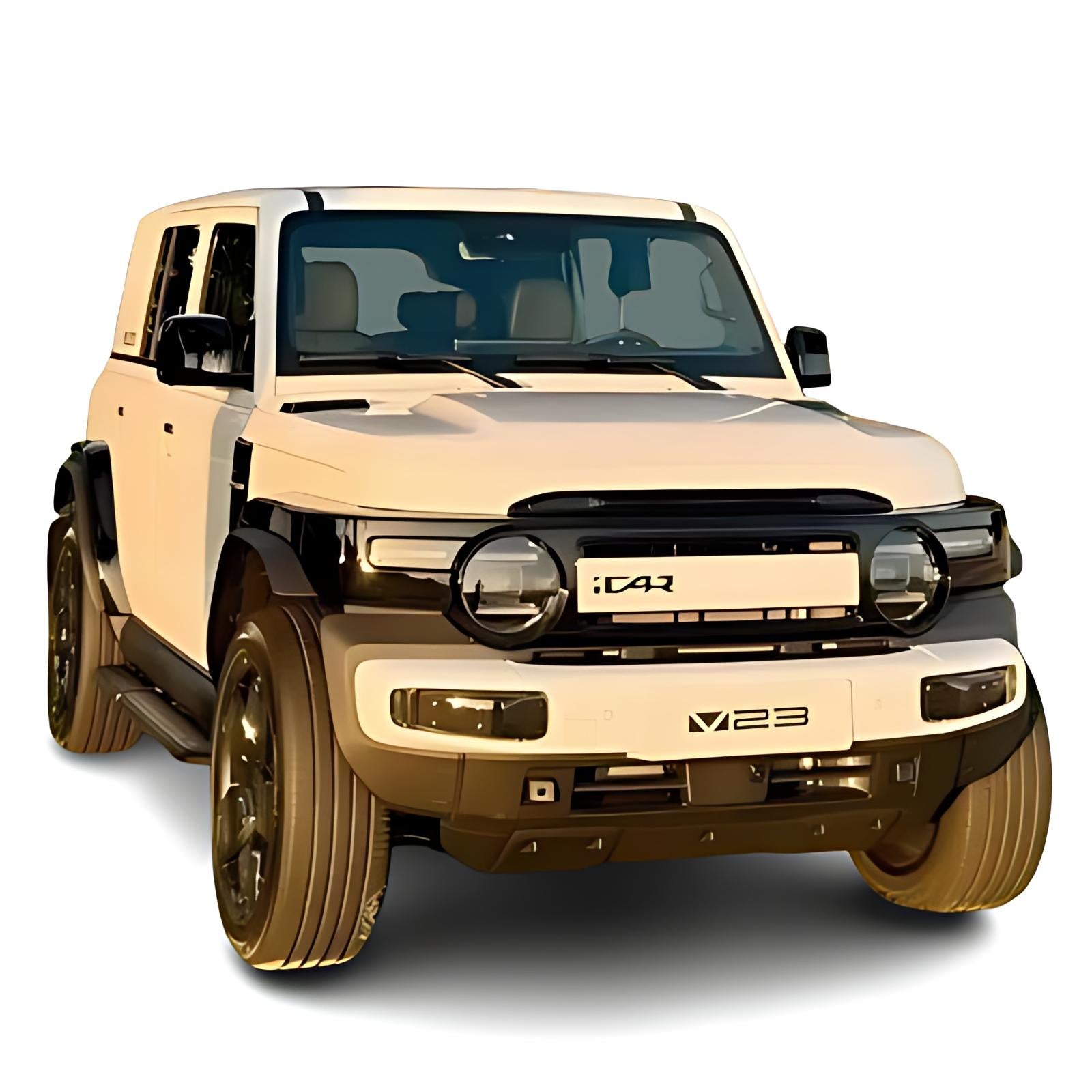

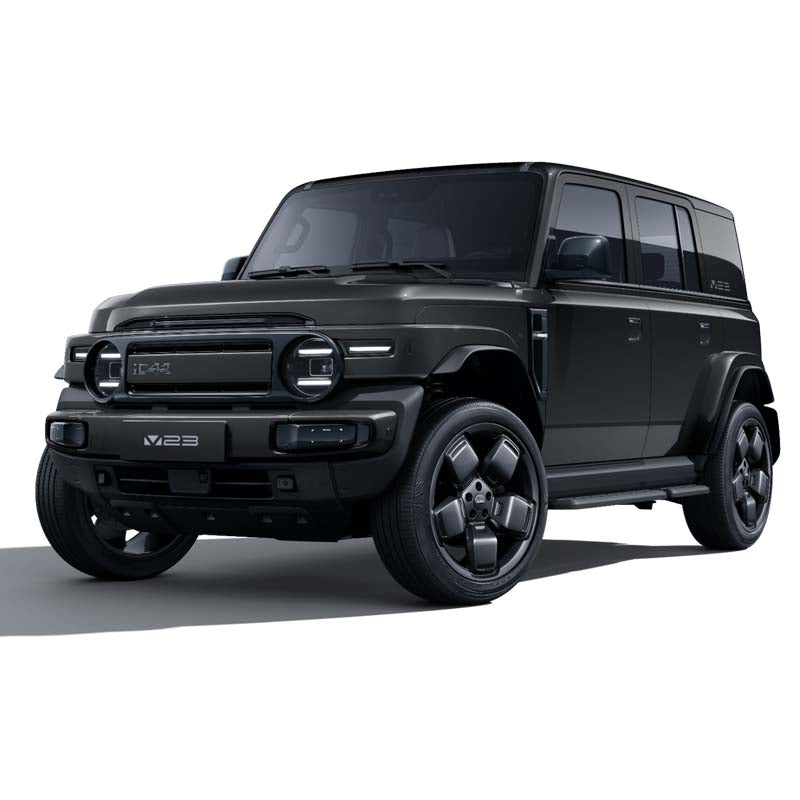

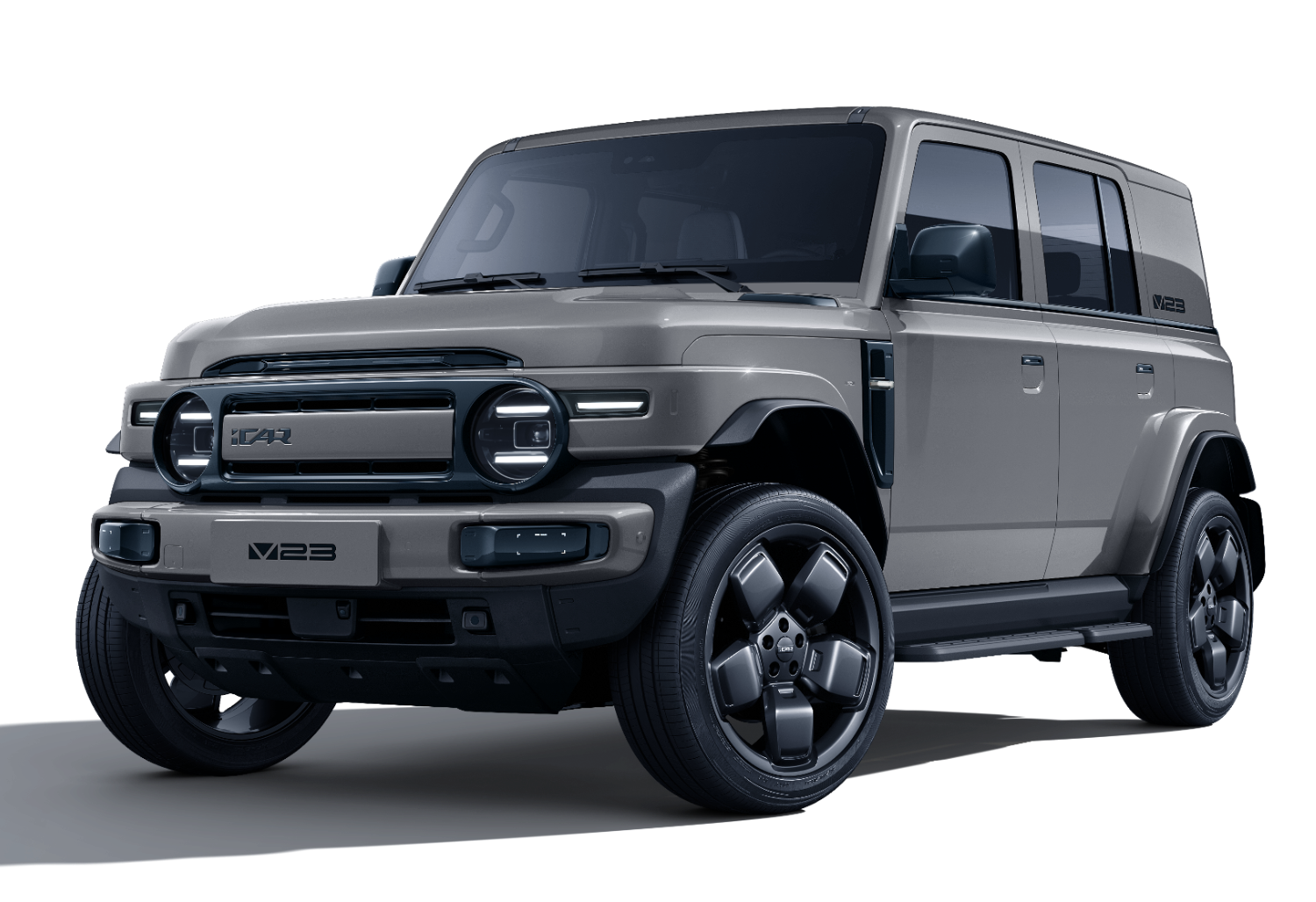

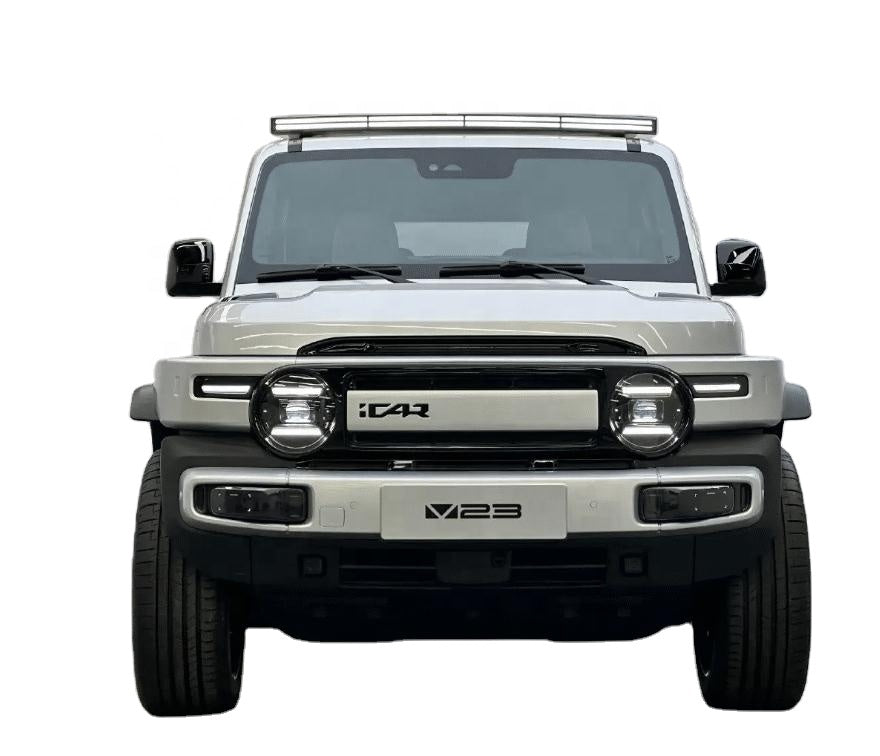

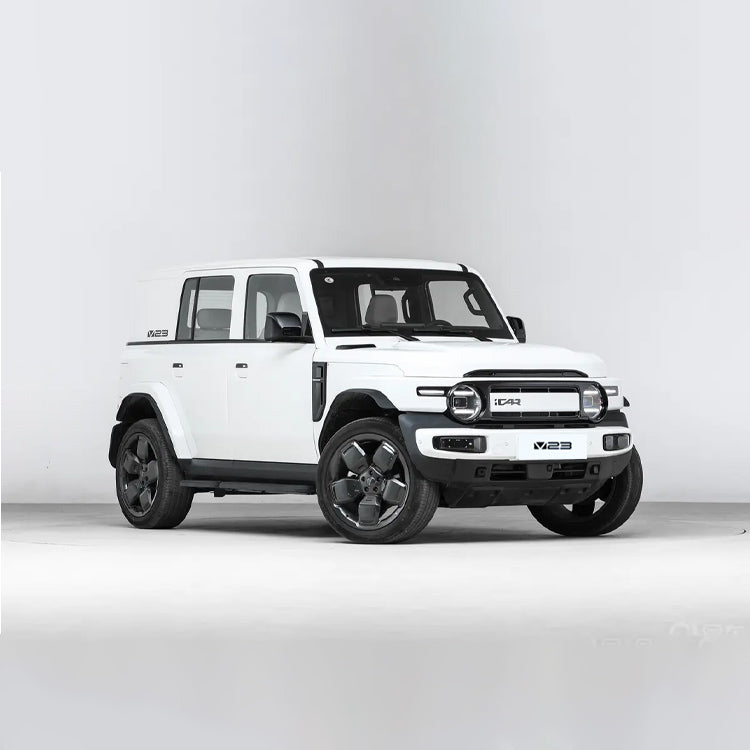

iCAR V23 2025 501km 4WD Advanced Intelligent Driving Edition |
| Manufacturer |
iCAR Car |
| level |
Compact SUV |
| Energy Type |
Pure Electric |
| Availability |
2025-01-06 |
| CLTC pure electric cruising range [km] |
501 |
| Fast charging time [minutes] |
30 |
| Fast charge capacity[%] |
30-80 |
| Slow charging time [hours] |
14 |
| Motor [Ps] |
211 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4220*1915*1845 |
| Body structure |
5-door 5-seater SUV |
| Maximum speed [km/h] |
140 |
| Power consumption per 100 km [kWhkm] |
17.3 |
| Vehicle warranty |
4 years or 120,000 km |
| First Owner Warranty Policy |
Unlimited years/unlimited mileage (liability exemption clauses are subject to official regulations) |
| Appearance Color |
|
| Interior Color |
|
| Body |
|
| Length [mm] |
4220 |
| Width [mm] |
1915 |
| Height [mm] |
1845 |
| Wheelbase [mm] |
2735 |
| Front track [mm] |
1613 |
| Rear track [mm] |
1641 |
| Door opening method |
Swing door |
| Number of doors |
5 |
| Seating capacity |
5 |
| Approach angle [°] |
43 |
| Departure angle [°] |
41 |
| Minimum ground clearance without load [mm] |
210 |
| Official trunk volume [L] |
234-744 |
| Curb weight[kg] |
1825 |
| Full load mass [kg] |
2200 |
| Electric Motor |
|
| Motor brand |
Chery New Energy |
| Motor Model |
Front 112AB7/Back 112AB9 |
| Number of drive motors |
Dual motors |
| Motor layout |
Front + rear |
| Motor Type |
Front AC asynchronous/rear permanent magnet synchronous |
| Total motor power [kW] |
155 |
| Total motor horsepower [Ps] |
211 |
| Total torque of the motor [N·m] |
292 |
| Maximum power of front motor [kW] |
55 |
| Maximum torque of front motor [N·m] |
112 |
| Maximum power of rear motor [kW] |
100 |
| Maximum torque of rear motor [N·m] |
180 |
| Battery/Energy Recharge |
|
| Battery Type |
Ternary lithium battery |
| Battery brand |
CATL |
| Battery Temperature Management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
501 |
| Battery capacity [kWh] |
81.76 |
|
Power consumption per 100 km [kWh럼km]
|
17.3 |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
●Right rear side of the vehicle |
| Fast charging port location |
●Right rear side of the vehicle |
| Fast charging time[min] |
30 |
| Fast charging time[h] |
0.5 |
| Fast charge capacity[%] |
30-80 |
| Slow charging time[h] |
14 |
| Vehicle battery replacement |
- |
| Home charging station |
- |
| On-board charging gun |
- |
| External discharge function |
● |
| VTOL external discharge power |
3.3kW |
| Battery Pack Warranty |
8 years or 150,000 km |
| First Owner Battery Pack Warranty |
Unlimited years/unlimited mileage (liability exemption clauses are subject to official regulations) |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Dual motor four-wheel drive |
| Four-wheel drive |
Electric four-wheel drive |
| Center differential structure |
- |
| Front suspension type |
McPherson independent suspension |
| Rear suspension type |
Five-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
- |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Maximum wading depth [mm] |
600 |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
Solid disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
265/45 R21 |
| Rear tire specifications |
265/45 R21 |
| Spare tire |
No spare tire |
