| Basic Information |

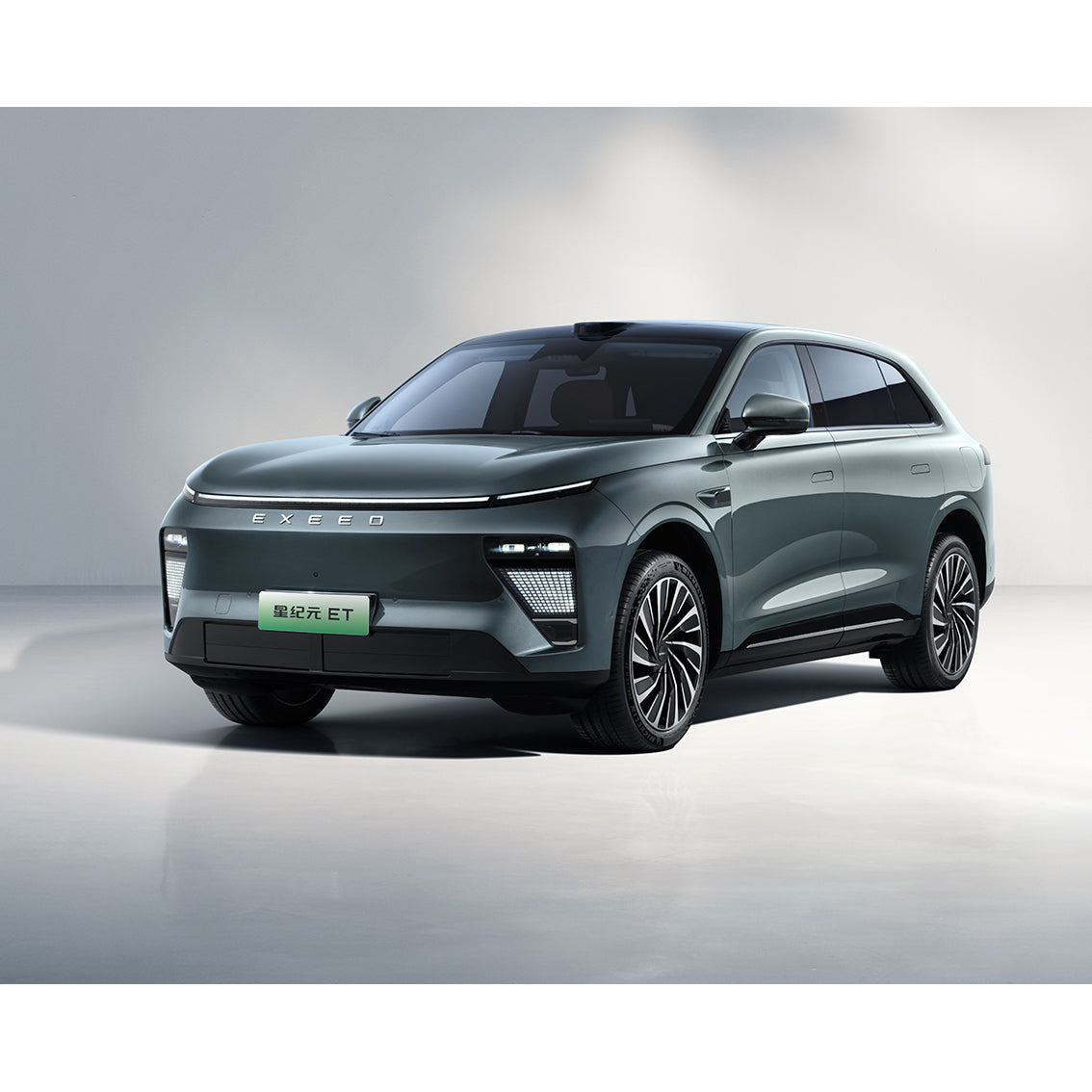

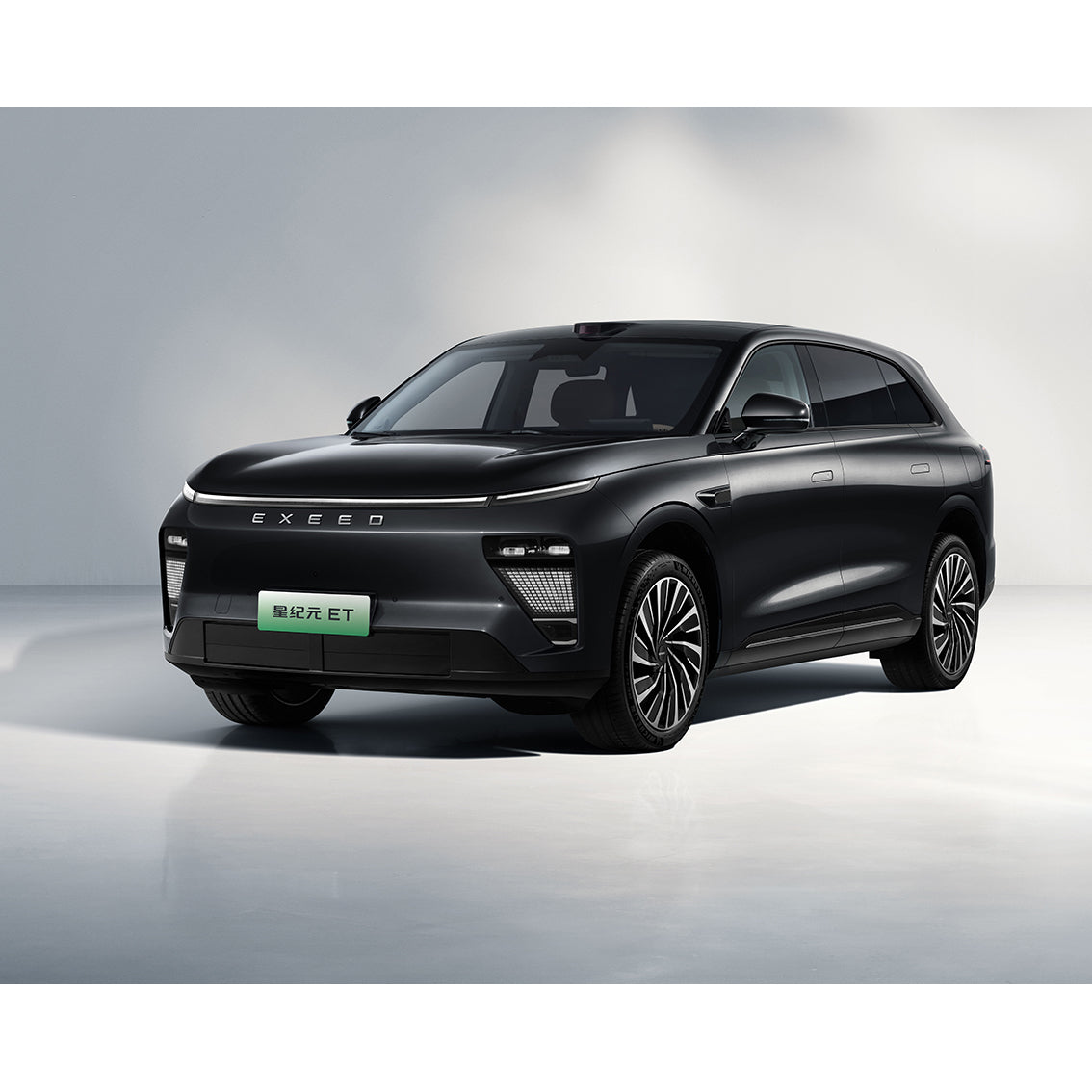

Chery EXEED STERRA ET 2025 Extended Range 1.5T 240km 4WD Premium Edition |
| Manufacturer |
Xingtu New Energy |
| level |
Medium and large SUV |
| Energy Type |
Extended range pure electric |
| Environmental standards |
National VI |
| Availability |
2025-04-08 |
| CLTC pure electric cruising range [km] |
240 |
| WLTC pure electric range [km] |
200 |
| Fast charging time [min] |
14 |
| Fast charge capacity[%] |
30-80 |
| Slow charging time [hours] |
6.8 |
| Slow charging capacity[%] |
5-100 |
| engine |
1.5T156HPL4 |
| Maximum power [kW] |
115 |
| Maximum torque [N·m] |
220 |
| Motor [Ps] |
469 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4955*1975*1698 |
| Body structure |
5-door 5-seater SUV |
| Maximum speed [km/h] |
195 |
| Official 0-100km/h acceleration [s] |
4.8 |
| WLTC comprehensive fuel consumption [L/km] |
0.71 |
| WLTC low-power fuel consumption [L/km] |
5.9 |
| Power consumption per 100 km [kWh/km] |
20.8 |
| Vehicle warranty |
4 years or 120,000 km |
| First Owner Warranty Policy |
Unlimited years/unlimited mileage (liability exemption clauses are subject to official regulations) |
| Length [mm] |
4955 |
| Width [mm] |
1975 |
| Height [mm] |
1698 |
| Wheelbase[mm] |
3000 |
| Front wheel track[mm] |
1690 |
| Rear track [mm] |
1695 |
| Door opening method |
Swing door |
| Number of doors |
5 |
| Seating capacity |
5 |
| Approach angle [°] |
17 |
| Departure angle [°] |
twenty one |
| Minimum ground clearance when fully loaded [mm] |
177 |
| Minimum turning radius [m] |
5.65 |
| Drag coefficient [Cd] |
0.26 |
| Fuel tank capacity [L] |
67 |
| Official front trunk volume [L] |
- |
| Official trunk volume [L] |
546-1835 |
| Curb weight[kg] |
2380 |
| Full load mass [kg] |
2845 |
| engine |
|
| Engine Model |
SQRH4J15B |
| Displacement [mL] |
1499 |
| Displacement [L] |
1.5 |
| Air intake form |
Turbocharger |
| Engine layout |
Sideways |
| Cylinder arrangement |
L |
| Number of cylinders |
4 |
| Number of valves per cylinder |
4 |
| Compression ratio |
14.5 |
| Valve mechanism |
DOHC |
| Maximum power [kW] |
115 |
| Maximum horsepower [Ps] |
156 |
| Maximum power speed [rpm] |
5200 |
| Maximum torque [N·m] |
220 |
| Maximum torque speed [rpm] |
2500 |
| Maximum net power [kW] |
105 |
| Fuel grade |
No. 92 |
| Oil supply method |
Direct Injection |
| Cylinder head material |
Aluminum Alloy |
| Cylinder material |
Aluminum Alloy |
| Environmental standards |
National VI |
| Electric Motor |
|
| Motor Brand |
Front Eco Power/Back Suzhou Huichuan |
| Motor Model |
Front KPTZ220YMDA0/Rear TZ190XY105 |
| Number of drive motors |
Dual motors |
| Motor layout |
Front + rear |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
345 |
| Total motor horsepower [Ps] |
469 |
| Total torque of the motor [N·m] |
634 |
| Maximum power of front motor [kW] |
150 |
| Maximum torque of front motor [N·m] |
310 |
| Maximum power of rear motor [kW] |
195 |
| Maximum torque of rear motor [N·m] |
324 |
| System total power [kW] |
- |
| System comprehensive horsepower [Ps] |
- |
| Battery/Energy Recharge |
|
| Battery Type |
Lithium iron phosphate battery |
| Battery brand |
Guoxuan High-tech |
| Battery Temperature Management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
240 |
| WLTC pure electric range [km] |
200 |
| CLTC comprehensive endurance [km] |
1500 |
| WLTC comprehensive range [km] |
1300 |
| Battery capacity [kWh] |
41.16 |
| Battery energy density [Wh/kg] |
126 |
| Power consumption per 100 km [kWh/km] |
20.8 |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
● Left rear side of the vehicle |
| Fast charging port location |
● Left rear side of the vehicle |
| High voltage fast charging platform |
●400V platform |
| Energy replenishment speed |
- |
| Fast charging power [kW] |
107 |
| Fast charging time[min] |
14 |
| Fast charging time[h] |
0.24 |
| Fast charge capacity[%] |
30-80 |
| Slow charging power [kW] |
- |
| Slow charging time[h] |
6.8 |
| Slow charging capacity[%] |
5-100 |
| Vehicle battery replacement |
- |
| Home charging station |
○ |
| On-board charging gun |
- |
| External discharge function |
● |
| VTOL external discharge power |
3.3kW |
| Minimum allowable value of external discharge [%] |
15 |
| Battery Pack Warranty |
8 years or 160,000 km |
| First Owner Battery Pack Warranty |
Unlimited years/unlimited mileage (liability exemption clauses are subject to official regulations) |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Dual motor four-wheel drive |
| Four-wheel drive |
Electric four-wheel drive |
| Center differential structure |
- |
| Front suspension type |
Double wishbone independent suspension |
| Rear suspension type |
Five-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
●Height adjustment ●Softness and hardness adjustment |
| Adjustable suspension type |
Air suspension |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Maximum wading depth [mm] |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
●Ventilated disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
255/R20 |
| Rear tire specifications |
255/R20 |
| Spare tire |
No spare tire |
