| Basic Information |

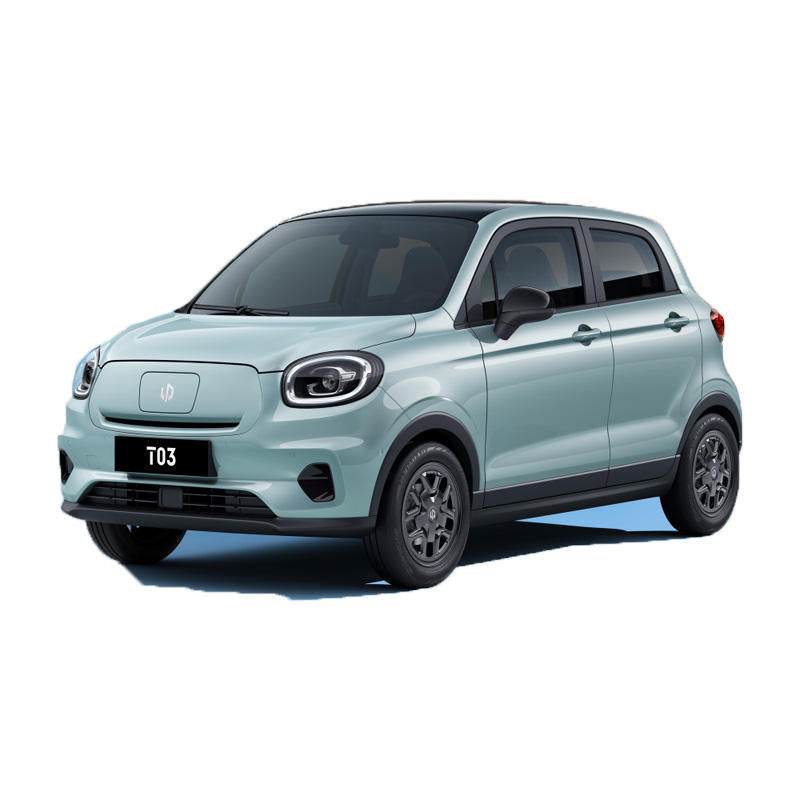

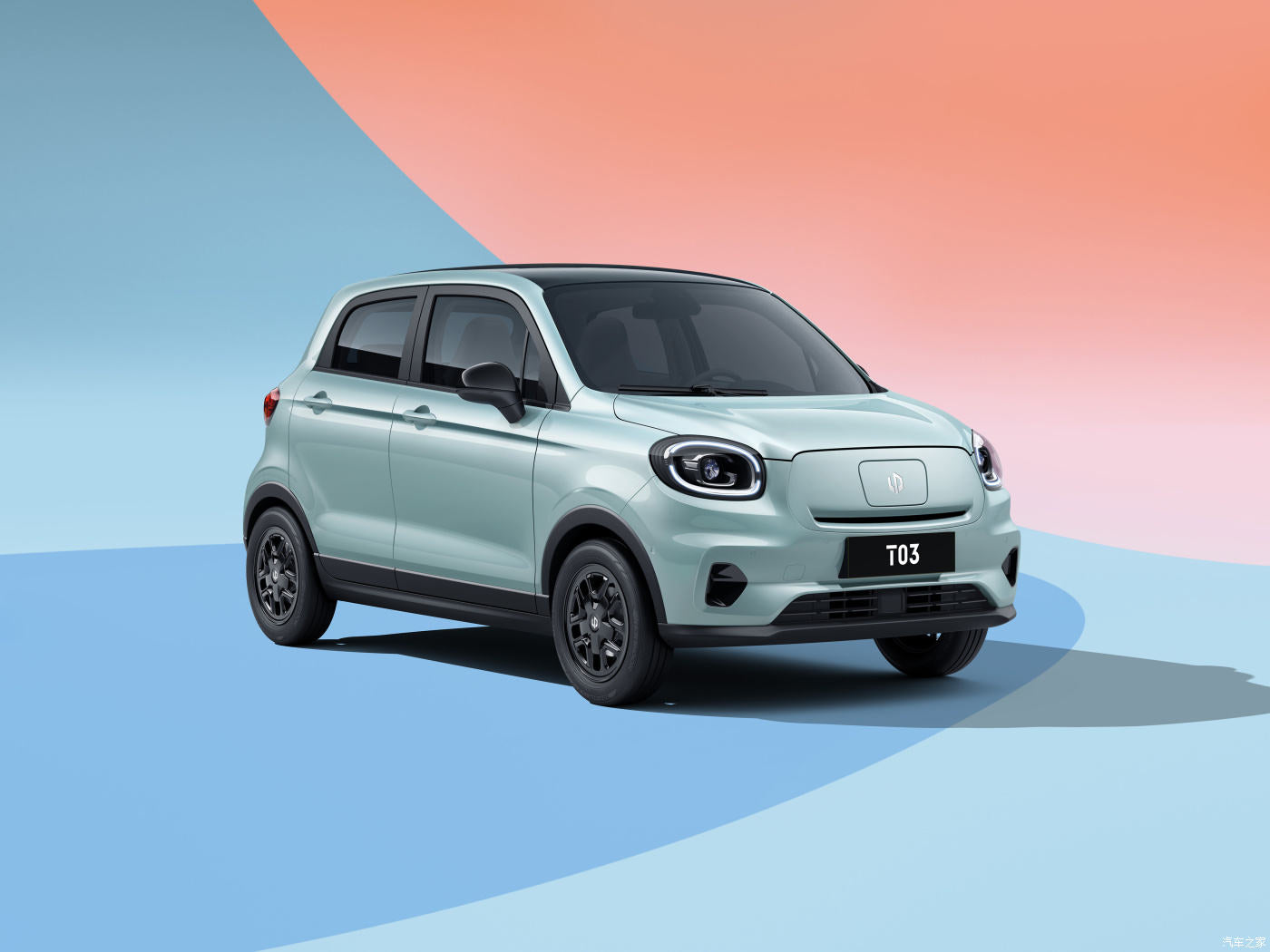

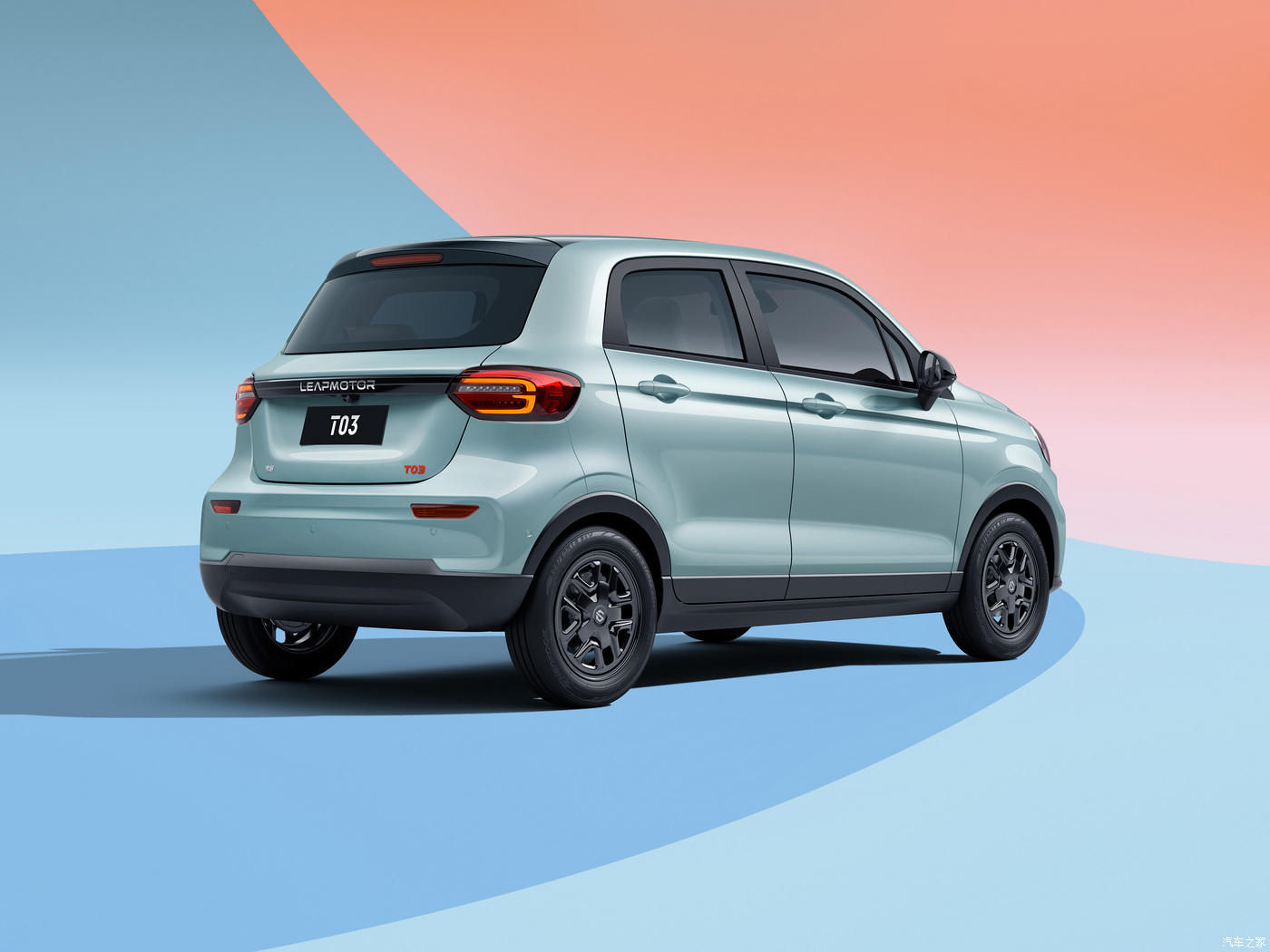

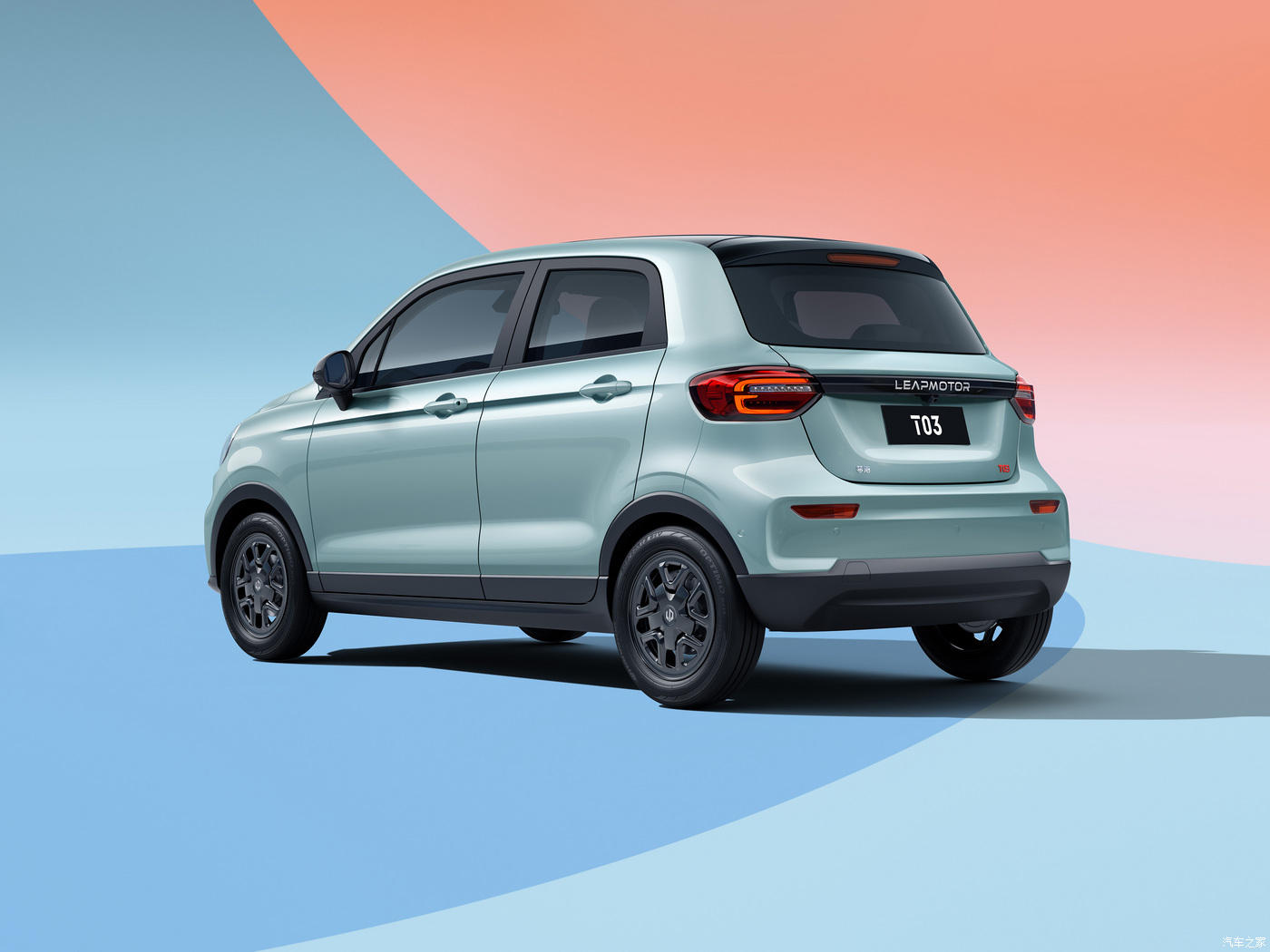

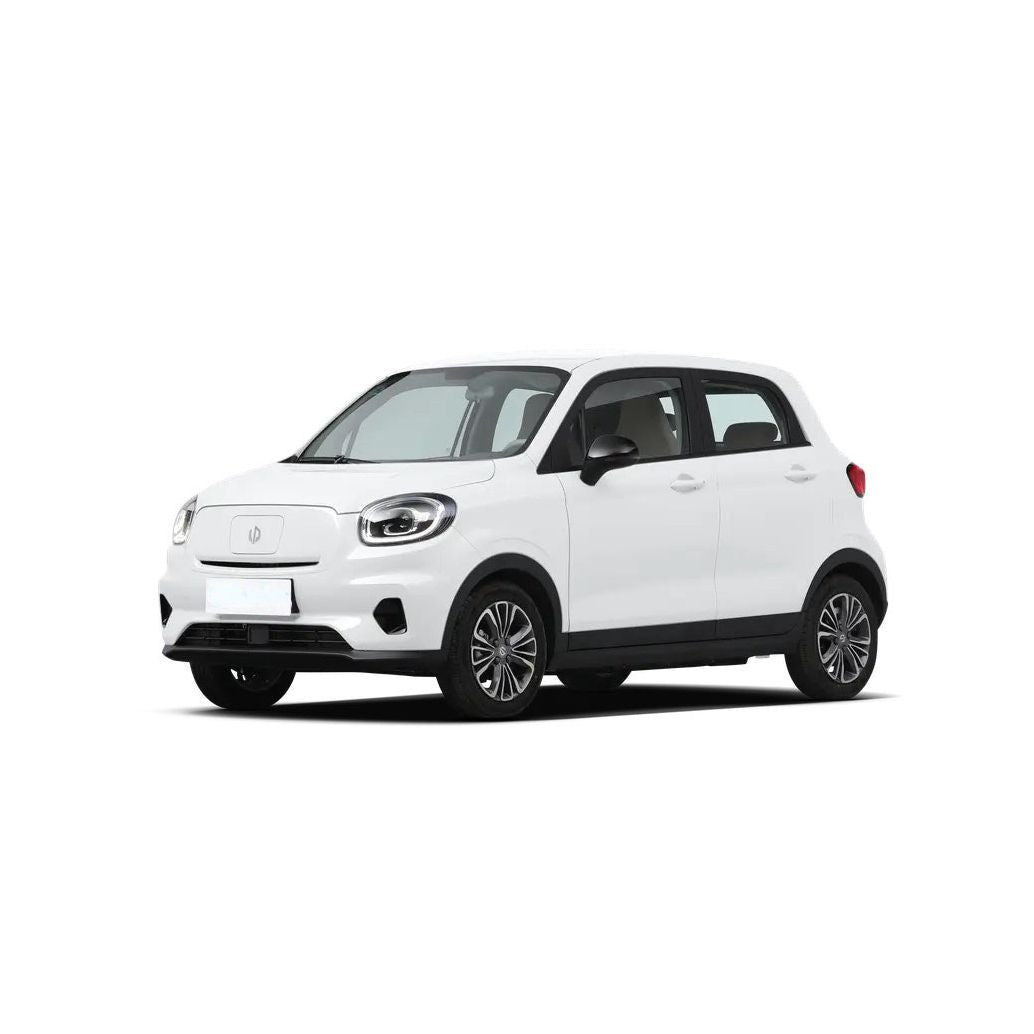

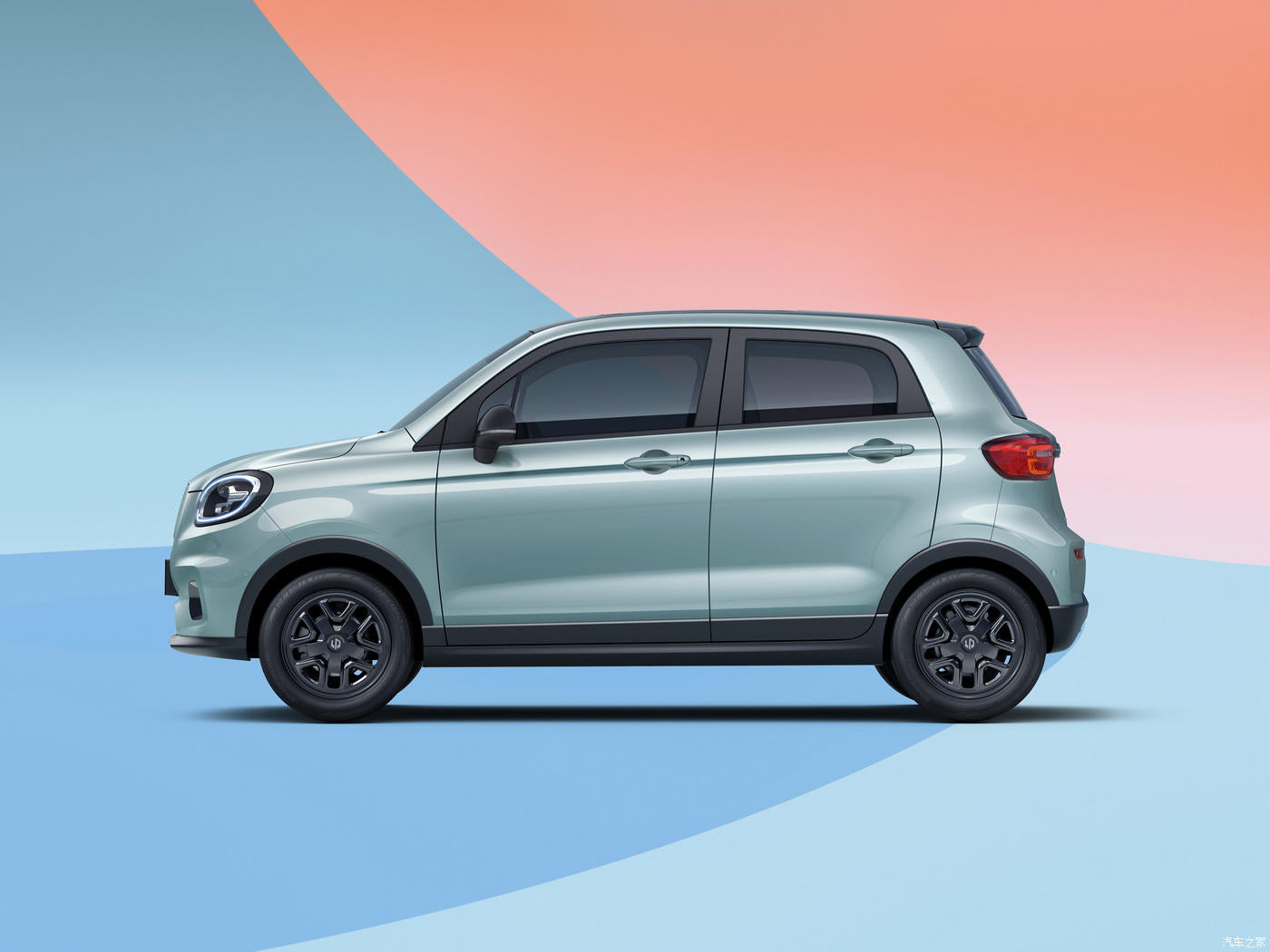

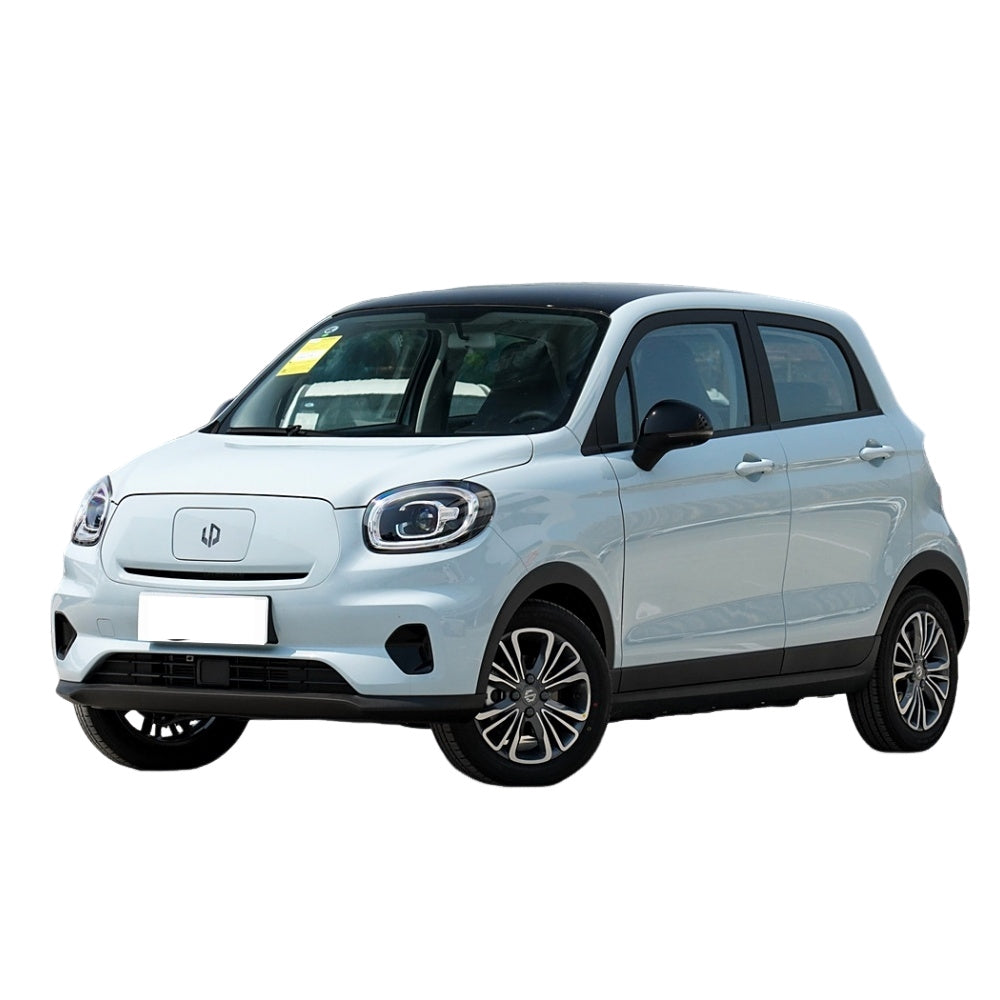

LEAPMOTOR T03 2025 403km403 Comfort Edition |
| Manufacturer |
Leapmotor |
| level |
Mini car |
| Energy Type |
Pure Electric |
| Availability |
2025-02-21 |
| CLTC pure electric cruising range [km] |
403 |
| Fast charging time [minutes] |
36 |
| Fast charge capacity[%] |
30-80 |
| Slow charging time [hours] |
3.5 |
| Slow charging capacity[%] |
30-80 |
| Motor [Ps] |
109 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
3620*1652*1592 |
| Body structure |
5-door 4-seater hatchback |
| Maximum speed [km/h] |
100 |
| Vehicle warranty |
3 years or 120,000 km |
| Length [mm] |
3620 |
| Width [mm] |
1652 |
| Height [mm] |
1592 |
| Wheelbase [mm] |
2400 |
| Front track [mm] |
1410 |
| Rear track [mm] |
1410 |
| Door opening method |
Swing door |
| Number of doors |
5 |
| Seating capacity |
4 |
| Approach angle [°] |
18 |
| Departure angle [°] |
34 |
| Official trunk volume [L] |
210-508 |
| Curb weight[kg] |
1190 |
| Full load mass [kg] |
1490 |
| Electric Motor |
|
| Motor Brand |
Jinhua Leapmotor New Energy |
| Motor Model |
TZ180XSLPT03B |
| Number of drive motors |
Single motor |
| Motor layout |
Pre |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
80 |
| Total motor horsepower [Ps] |
109 |
| Total torque of the motor [N·m] |
158 |
| Maximum power of front motor [kW] |
80 |
| Maximum torque of front motor [N·m] |
158 |
| Battery/Energy Recharge |
|
| Battery Type |
Lithium iron phosphate battery |
| Battery brand |
Guoxuan High-tech |
| Battery Temperature Management |
● Low temperature heating |
| CLTC pure electric range [km] |
403 |
| Battery capacity [kWh] |
41.3 |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
● Front |
| Fast charging port location |
● Front |
| Fast charging time[min] |
36 |
| Fast charging time[h] |
0.6 |
| Fast charge capacity[%] |
30-80 |
| Slow charging time[h] |
3.5 |
| Slow charging capacity[%] |
30-80 |
| Vehicle battery replacement |
- |
| Home charging station |
- |
| On-board charging gun |
- |
| First Owner Battery Pack Warranty |
Unlimited years/unlimited mileage (liability exemption clauses are subject to official regulations) |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Front front drive |
| Four-wheel drive |
- |
| Central differential structure |
- |
| Front suspension type |
McPherson independent suspension |
| Rear suspension type |
Torsion beam non-independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
- |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
Solid disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
165/R15 |
| Rear tire specifications |
165/R15 |
| Spare tire |
No spare tire |
