| Basic Information |

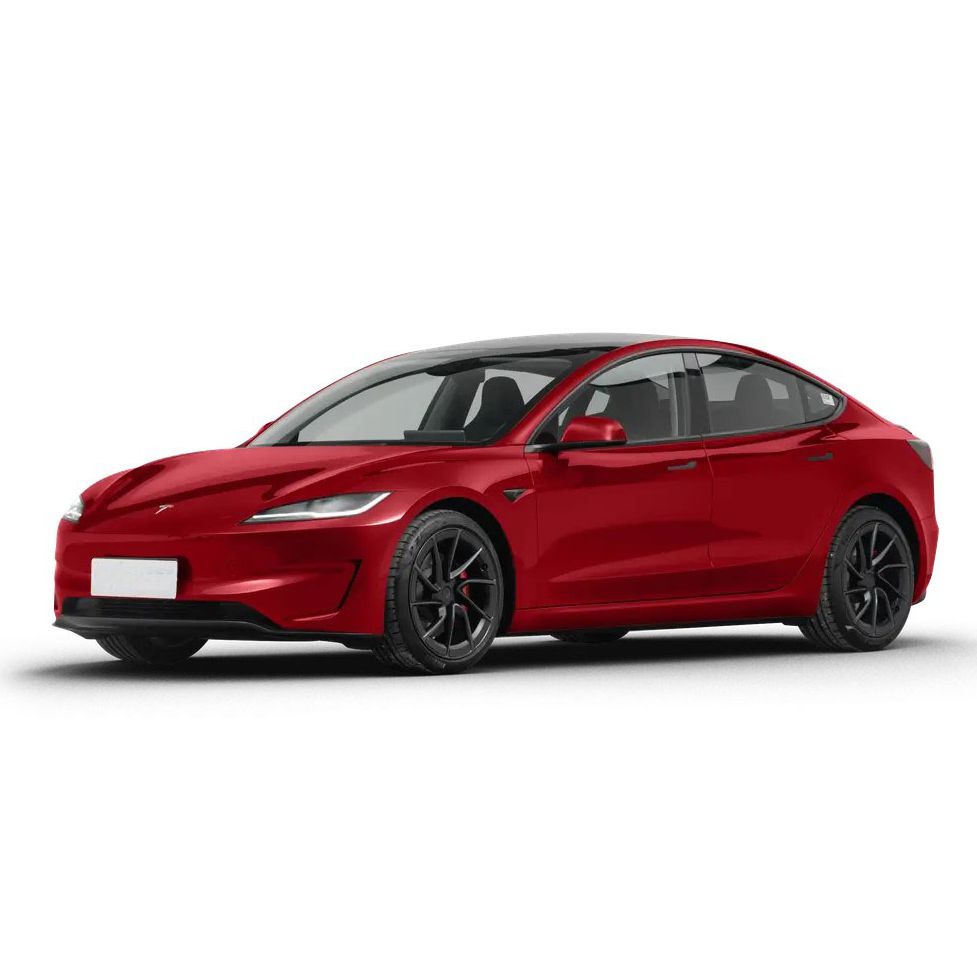

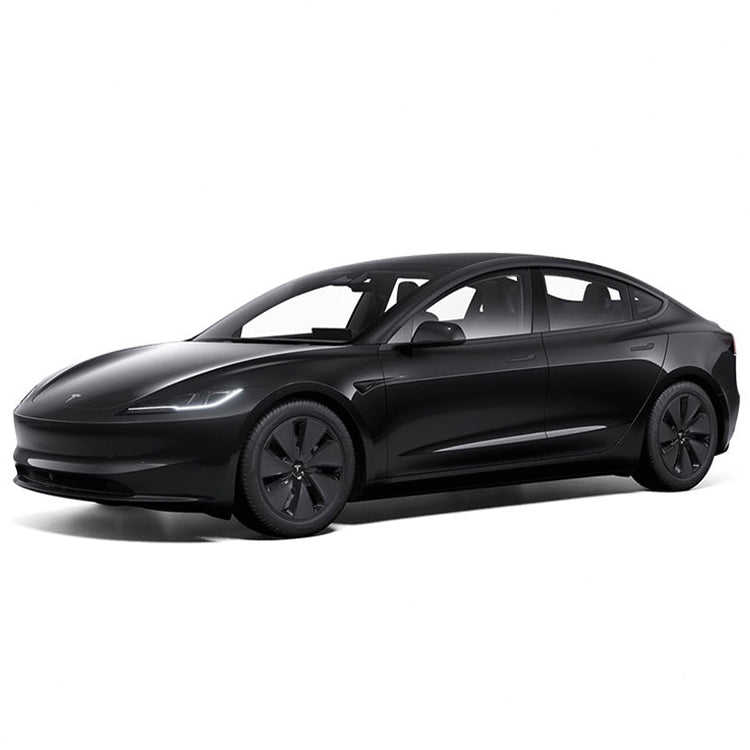

Model 3 2025 634km rear-wheel drive version |
| Manufacturer |
Tesla China |
| level |
Mid-size car |
| Energy Type |
Pure Electric |
| Availability |
2025-01-10 |
| CLTC pure electric cruising range [km] |
634 |
| Motor [Ps] |
264 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4720*1848*1442 |
| Body structure |
4-door 5-seater sedan |
| Maximum speed [km/h] |
200 |
| Official 0-100km/h acceleration [s] |
6.1 |
| Power consumption per 100 km [kWhkm] |
- |
| Vehicle warranty |
4 years or 80,000 km |

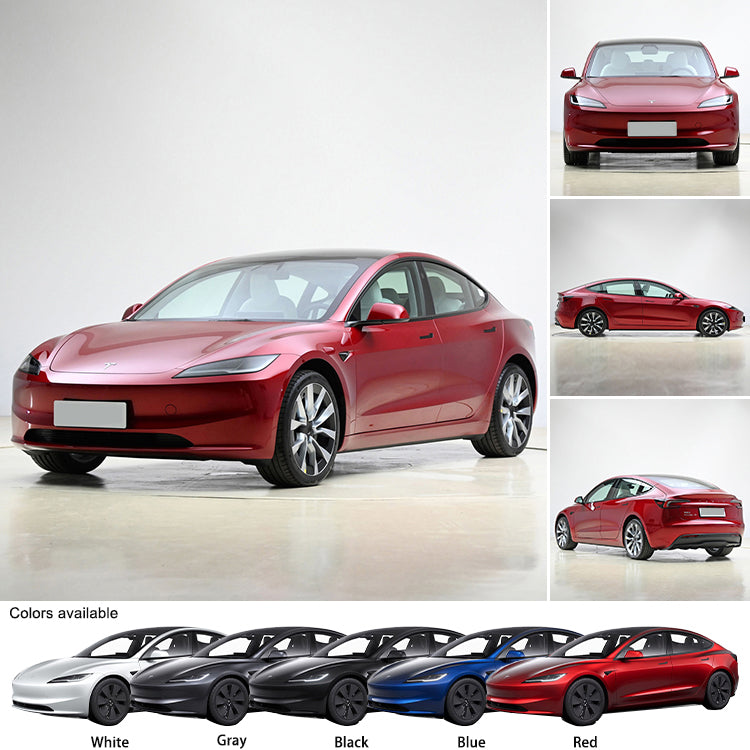

| Appearance Color |
|

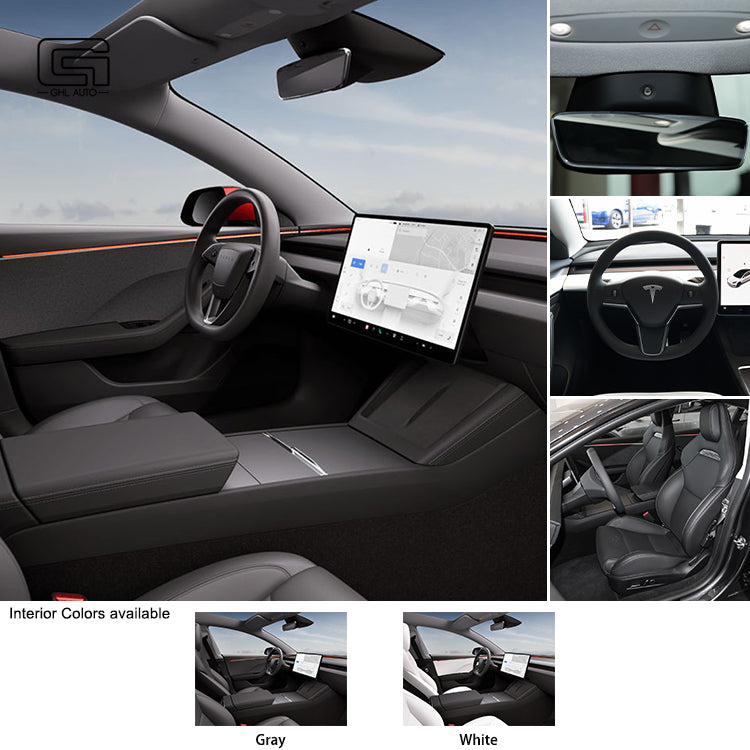

| Interior Color |
|
| Body |
|
| Length [mm] |
4720 |
| Width [mm] |
1848 |
| Height [mm] |
1442 |
| Wheelbase [mm] |
2875 |
| Front track [mm] |
1584 |
| Rear track [mm] |
1584 |
| Door opening method |
Swing door |
| Number of doors |
4 |
| Seating capacity |
5 |
| Approach angle [°] |
13 |
| Departure angle [°] |
12 |
| Minimum ground clearance when fully loaded [mm] |
138 |
| Minimum turning radius [m] |
5.8 |
| Drag coefficient [Cd] |
0.22 |
| Official front trunk volume [L] |
88 |

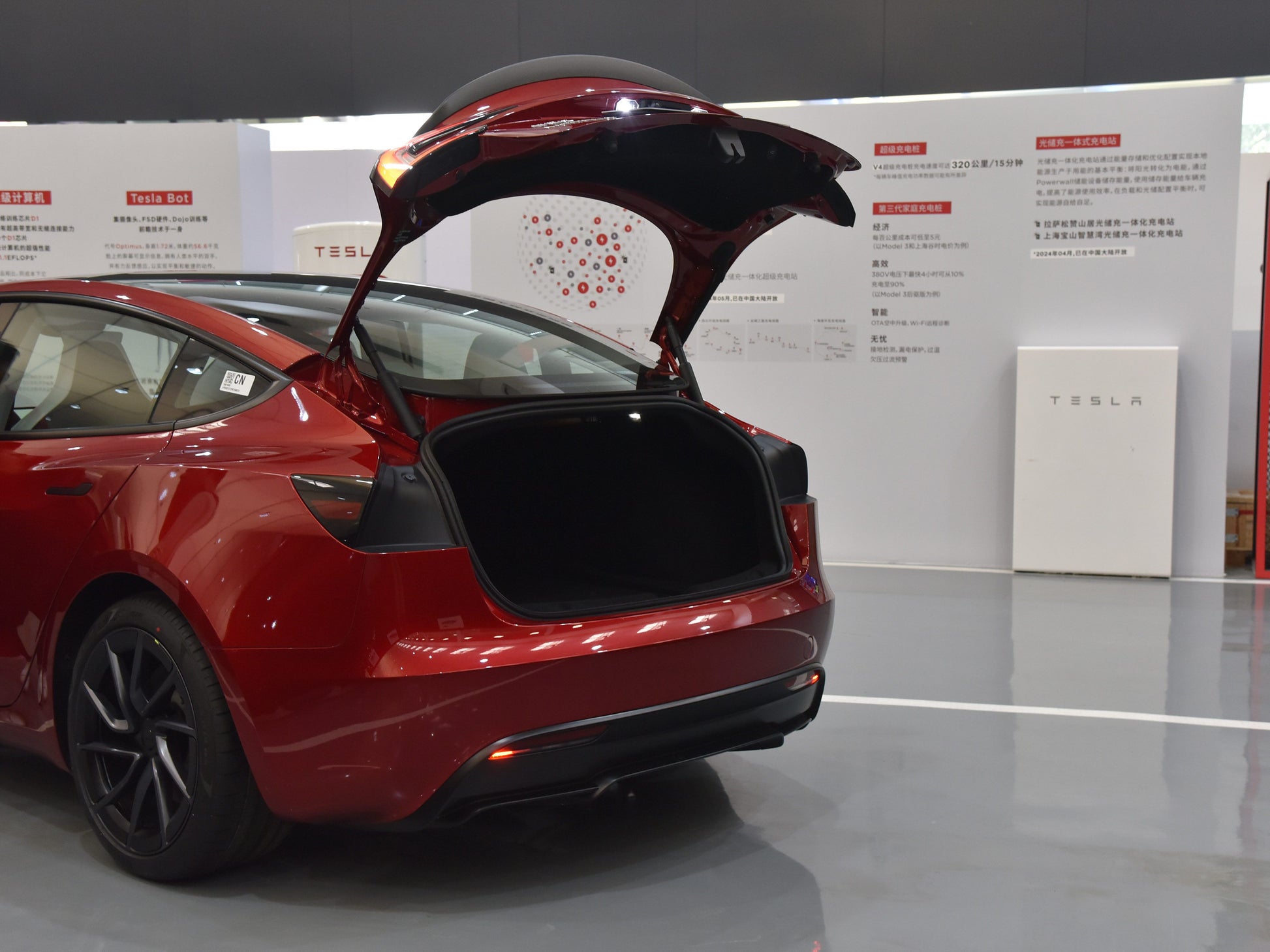

| Official trunk volume [L] |
594 |
| Curb weight[kg] |
1760 |
| Full load mass [kg] |
2192 |
| Electric Motor |
|
| Motor Brand |
Tesla |
| Motor Model |
3D7 |
| Number of drive motors |
Single motor |
| Motor layout |
Post |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
194 |
| Total motor horsepower [Ps] |
264 |
| Total torque of the motor [N·m] |
340 |
| Maximum power of front motor [kW] |
- |
| Maximum torque of front motor [N·m] |
- |
| Maximum power of rear motor [kW] |
194 |
| Maximum torque of rear motor [N·m] |
340 |
| Battery/Energy Recharge |
|
| Battery Type |
Lithium iron phosphate battery |
| Battery brand |
CATL |
| Battery Temperature Management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
634 |
| Battery capacity [kWh] |
62.5 |
| Power consumption per 100 km [kWhkm] |
- |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
● Left rear side of the vehicle |
| Fast charging port location |
● Left rear side of the vehicle |
| Fast charging power [kW] |
170 |
| Vehicle battery replacement |
- |
| Home charging station |
○ |
| On-board charging gun |
○ |
| External discharge function |
- |
| Battery Pack Warranty |
8 years or 160,000 km |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Rear-engine, rear-wheel drive |
| Four-wheel drive |
- |
| Center differential structure |
- |
| Front suspension type |
Double wishbone independent suspension |
| Rear suspension type |
Multi-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
- |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
●Ventilated disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
●235/45 R18 ○235/40 R19 |
| Rear tire specifications |
●235/45 R18 ○235/40 R19 |
| Spare tire |
No spare tire |
