| Basic Information |

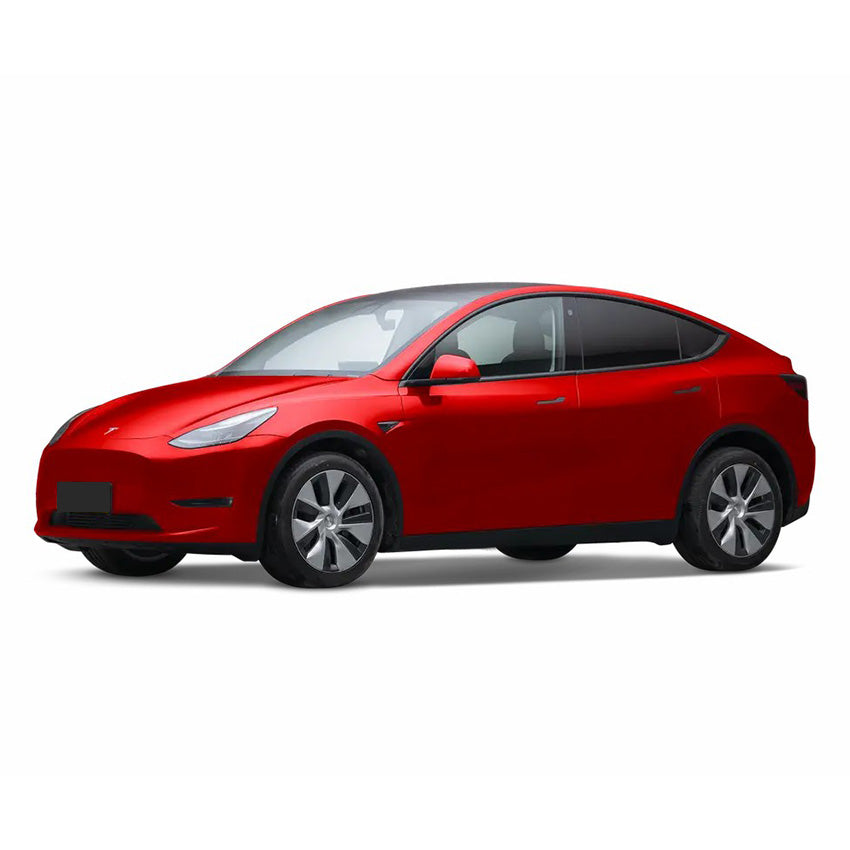

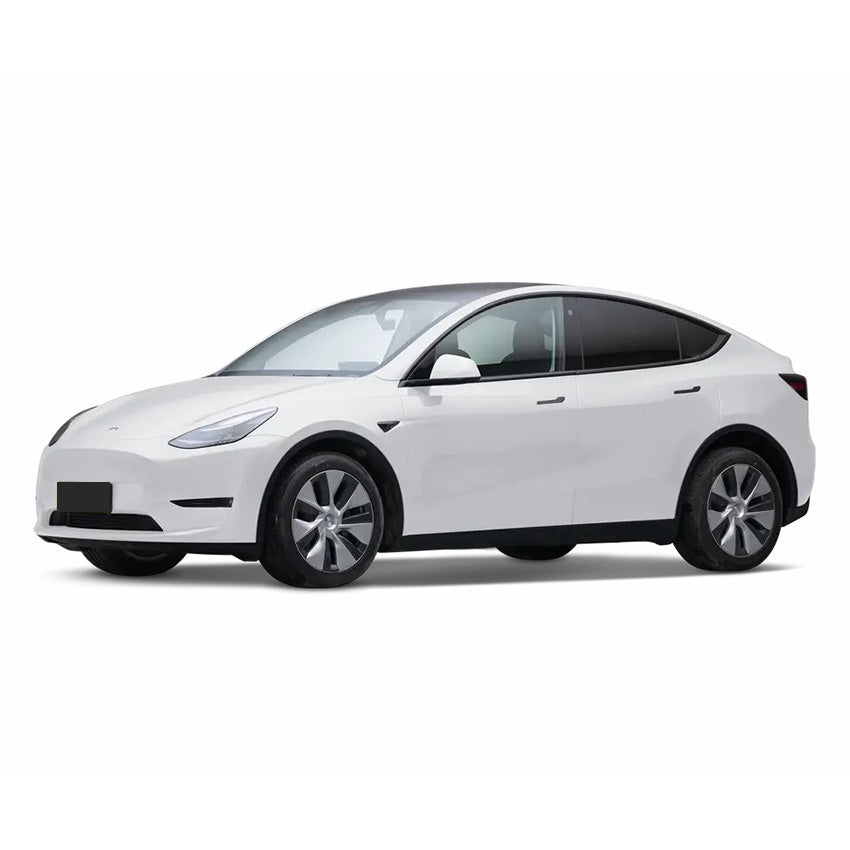

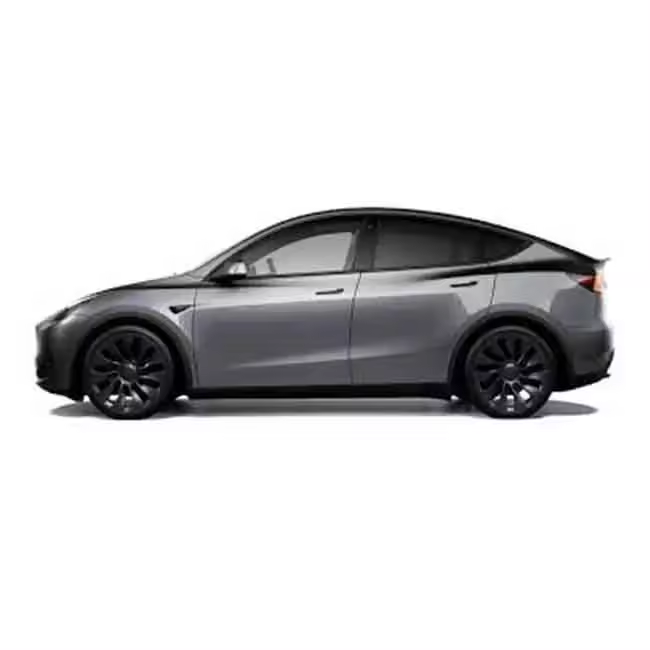

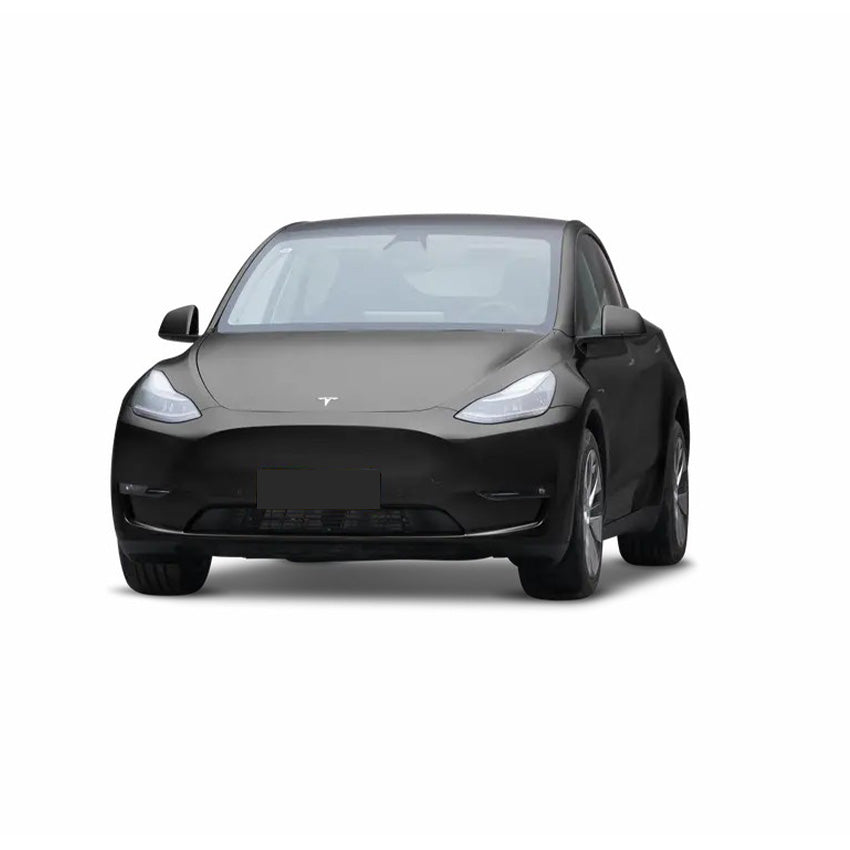

Model Y 2024 688km long-range all-wheel drive version |
| Manufacturer |
Tesla China |
| level |
Mid-size SUV |
| Energy Type |
Pure Electric |
| Availability |
2024-02-01 |
| CLTC pure electric cruising range [km] |
688 |
| Fast charging time [minutes] |
60 |
| Slow charging time [hours] |
10 |
| Motor [Ps] |
450 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4750*1921*1624 |
| Body structure |
5-door 5-seater SUV |
| Maximum speed [km/h] |
217 |
| Official 0-100km/h acceleration [s] |
5 |
| Power consumption per 100 km [kWhkm] |
13.4 |
| Vehicle warranty |
4 years or 80,000 km |
| Appearance Color |
|

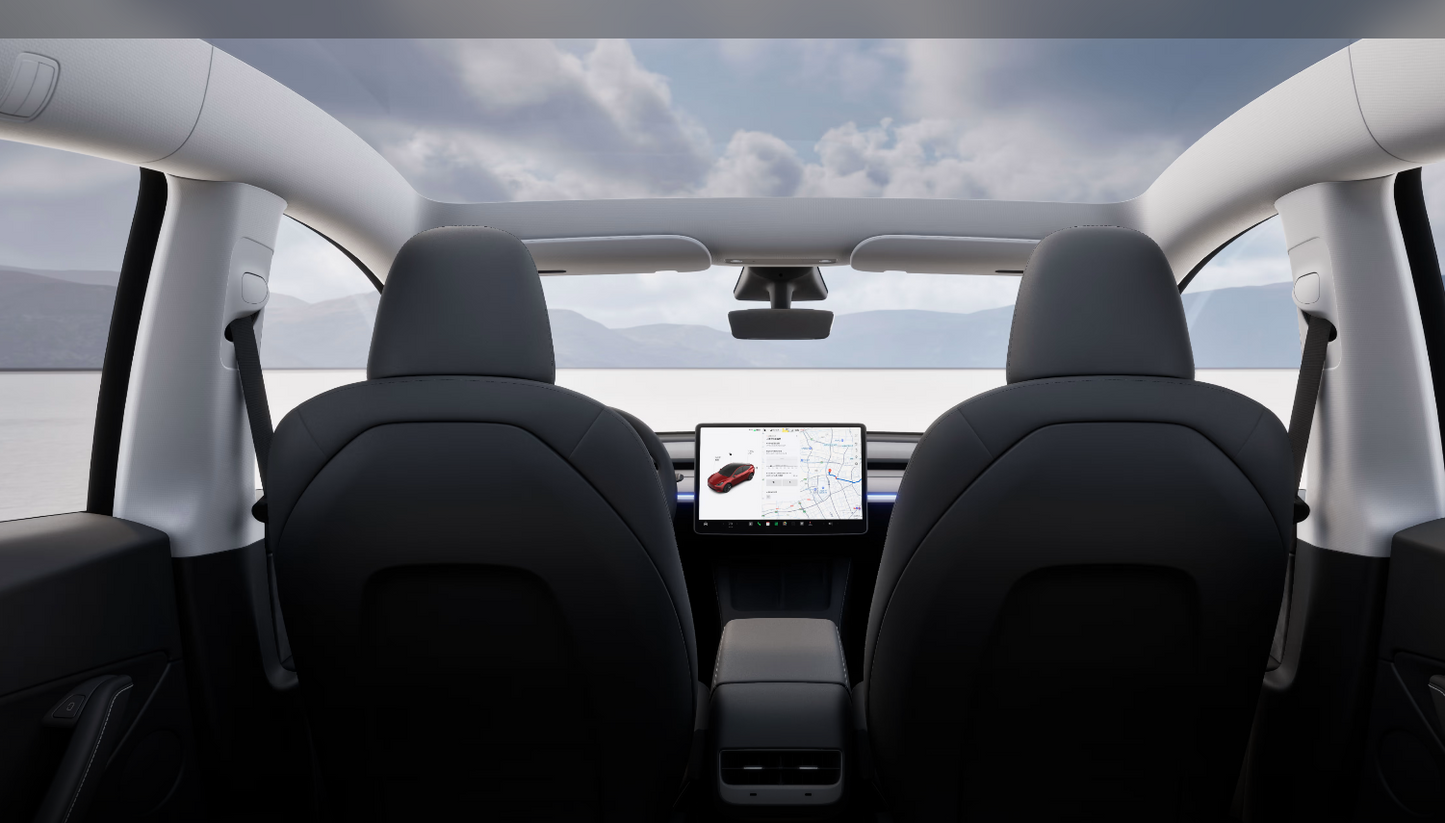

| Interior Color |
|
| Body |
|
| Length [mm] |
4750 |
| Width [mm] |
1921 |
| Height [mm] |
1624 |
| Wheelbase [mm] |
2890 |
| Front track [mm] |
1636 |
| Rear track [mm] |
1636 |
| Door opening method |
Swing door |
| Number of doors |
5 |
| Seating capacity |
5 |
| Approach angle [°] |
17 |
| Departure angle [°] |
18 |
| Minimum ground clearance when fully loaded [mm] |
167 |
| Minimum turning radius [m] |
6.07 |
| Drag coefficient [Cd] |
0.23 |
| Official front trunk volume [L] |
117 |

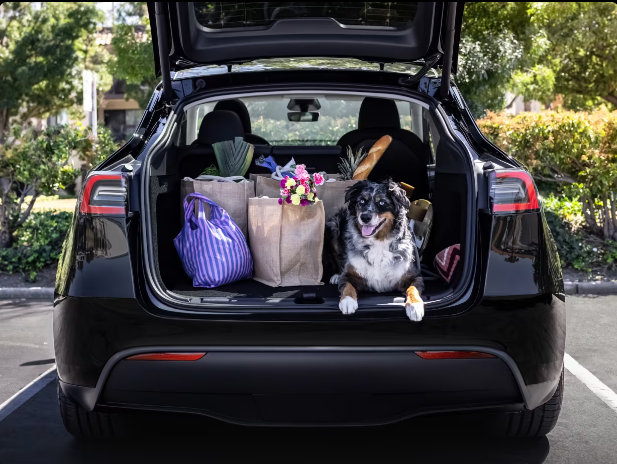

| Official trunk volume [L] |
971-2158 |
| Curb weight[kg] |
1981 |
| Full load mass [kg] |
2403 |
| Electric Motor |
|
| Motor Brand |
Tesla |
| Motor Model |
Front 3D3/Rear 3D7 |
| Number of drive motors |
Dual motors |
| Motor layout |
Front + rear |
| Motor Type |
Front induction asynchronous/rear permanent magnet synchronous |
| Total motor power [kW] |
331 |
| Total motor horsepower [Ps] |
450 |
| Total torque of the motor [N·m] |
559 |
| Maximum power of front motor [kW] |
137 |
| Maximum torque of front motor [N·m] |
219 |
| Maximum power of rear motor [kW] |
194 |
| Maximum torque of rear motor [N·m] |
340 |
| Battery/Energy Recharge |
|
| Battery Type |
Ternary lithium battery |
| Battery brand |
LG Electrochemical |
| Battery Temperature Management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
688 |
| Battery capacity [kWh] |
78.4 |
| Battery energy density [Wh/kg] |
168 |
| Power consumption per 100 km [kWhkm] |
13.4 |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
● Left rear side of the vehicle |
| Fast charging port location |
● Left rear side of the vehicle |
| High voltage fast charging platform |
●400V platform |
| Fast charging power [kW] |
- |
| Fast charging time[min] |
60 |
| Fast charging time[h] |
1 |
| Slow charging time[h] |
10 |
| Vehicle battery replacement |
- |
| Home charging station |
○ |
| On-board charging gun |
○ |
| Battery Pack Warranty |
8 years or 192,000 km |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Dual motor four-wheel drive |
| Four-wheel drive |
Electric four-wheel drive |
| Central differential structure |
- |
| Front suspension type |
Double wishbone independent suspension |
| Rear suspension type |
Multi-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
- |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
●Ventilated disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
●255/45 R19○255/40 R20 |
| Rear tire specifications |
●255/45 R19○255/40 R20 |
| Spare tire |
No spare tire |
