| Basic Information |

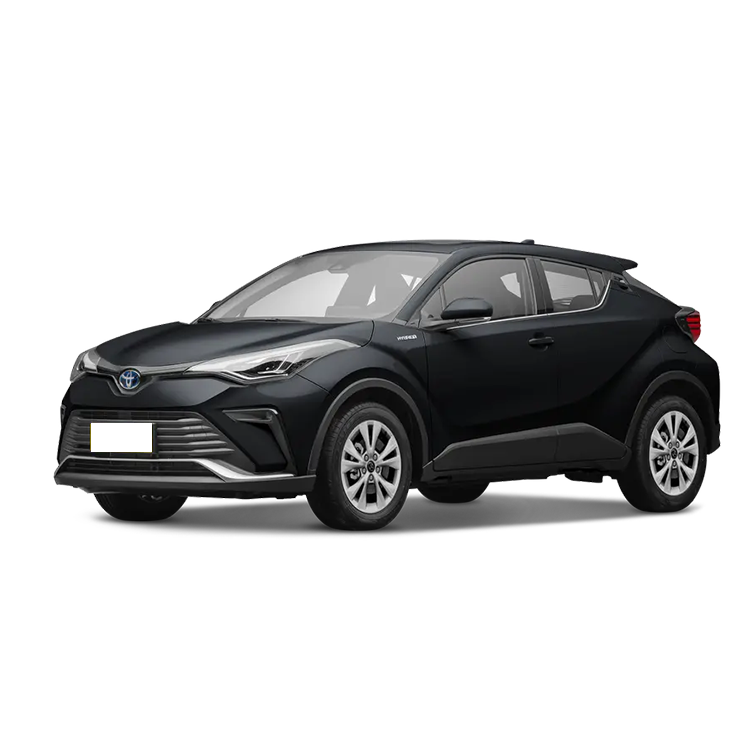

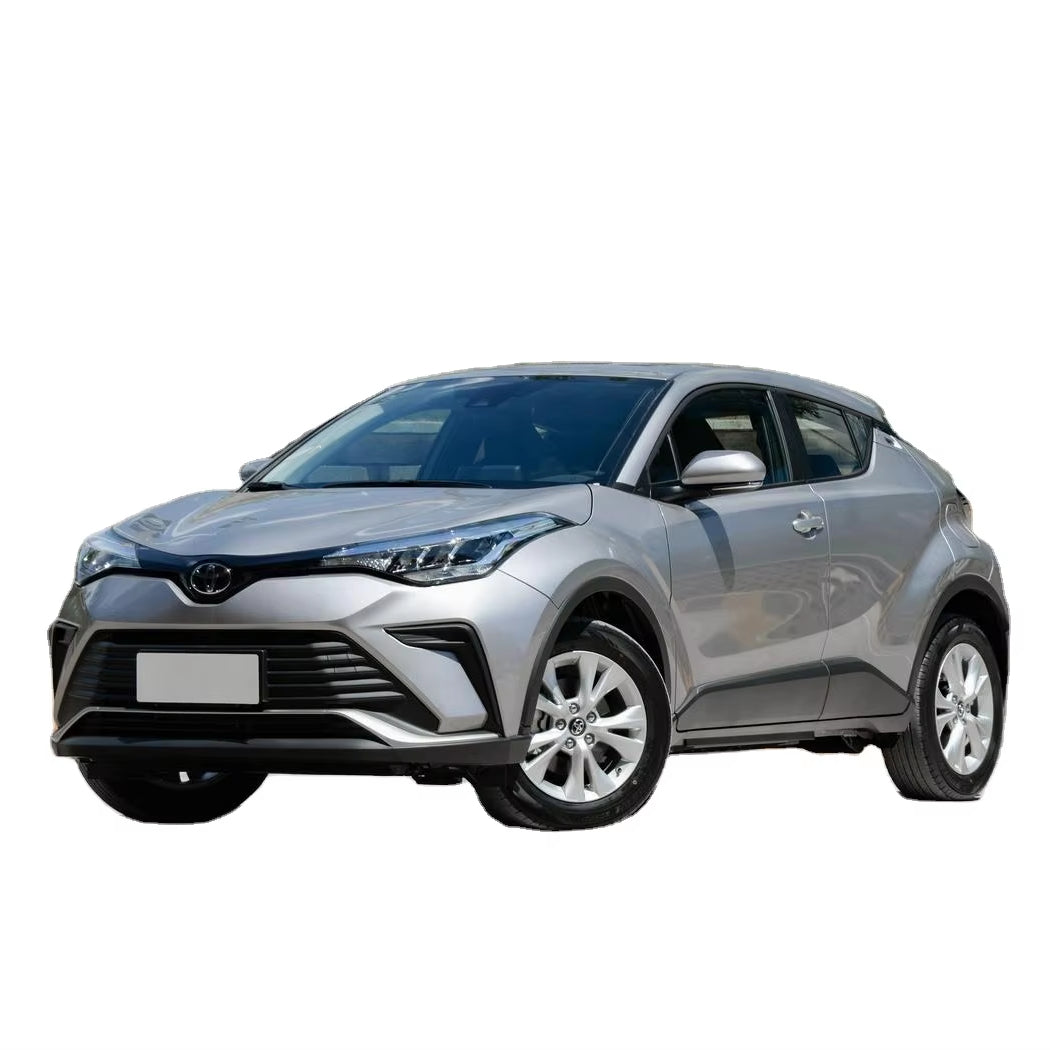

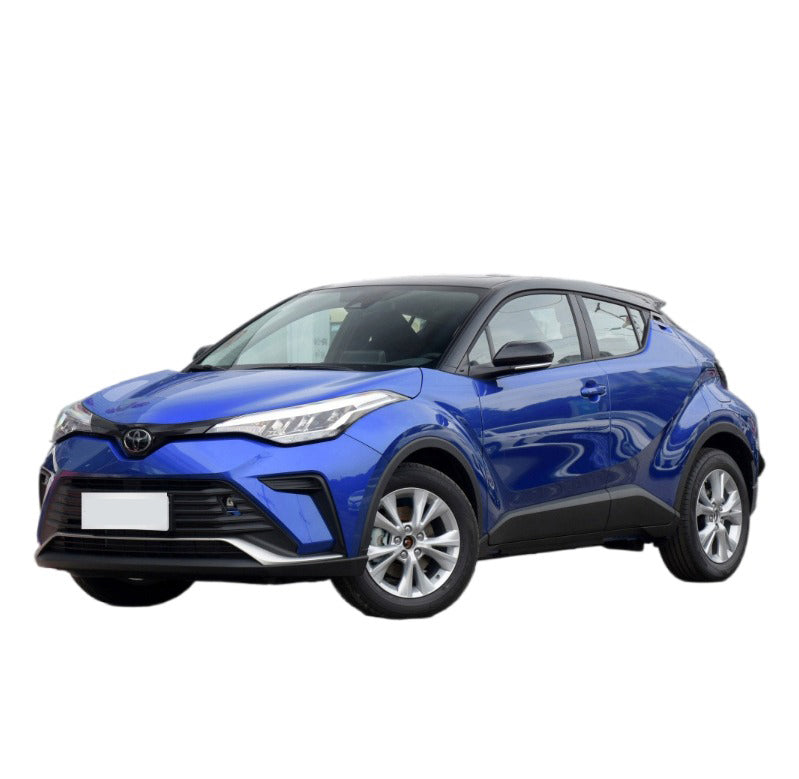

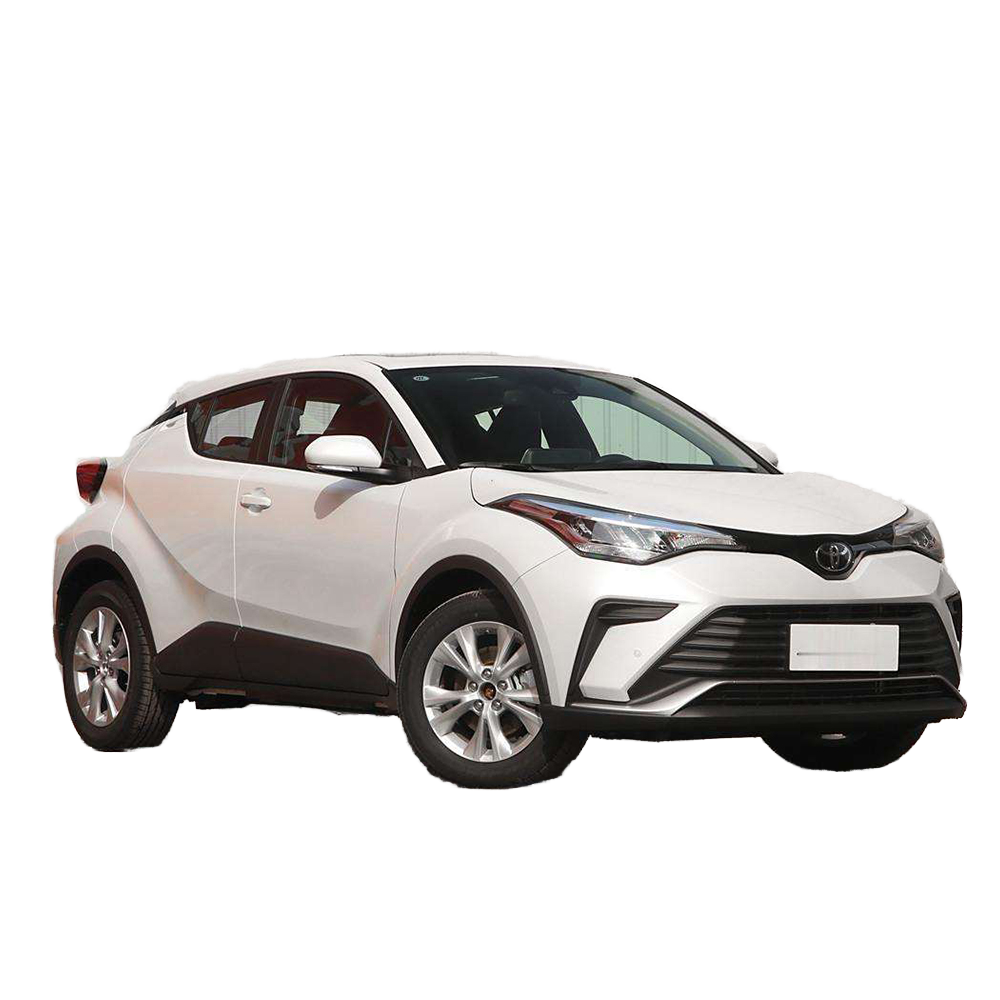

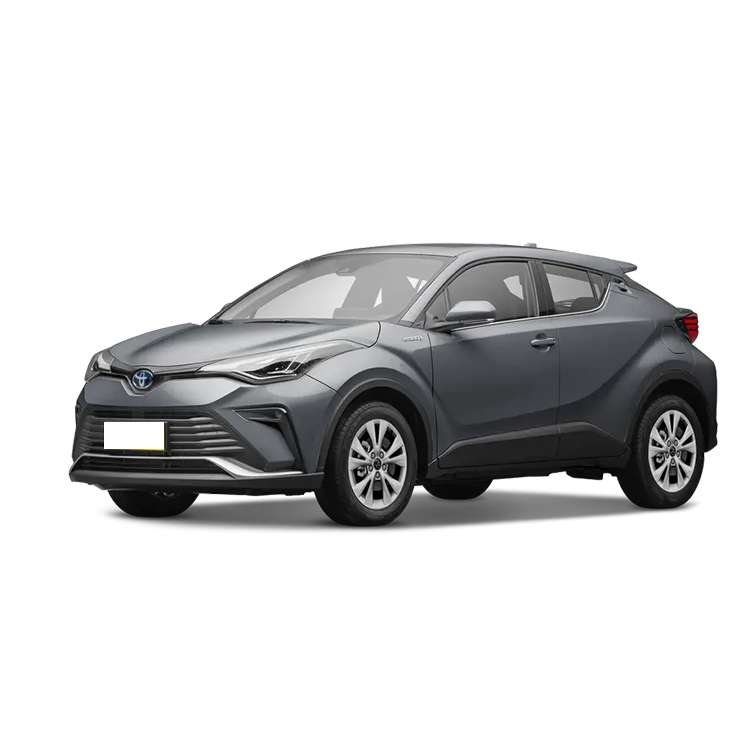

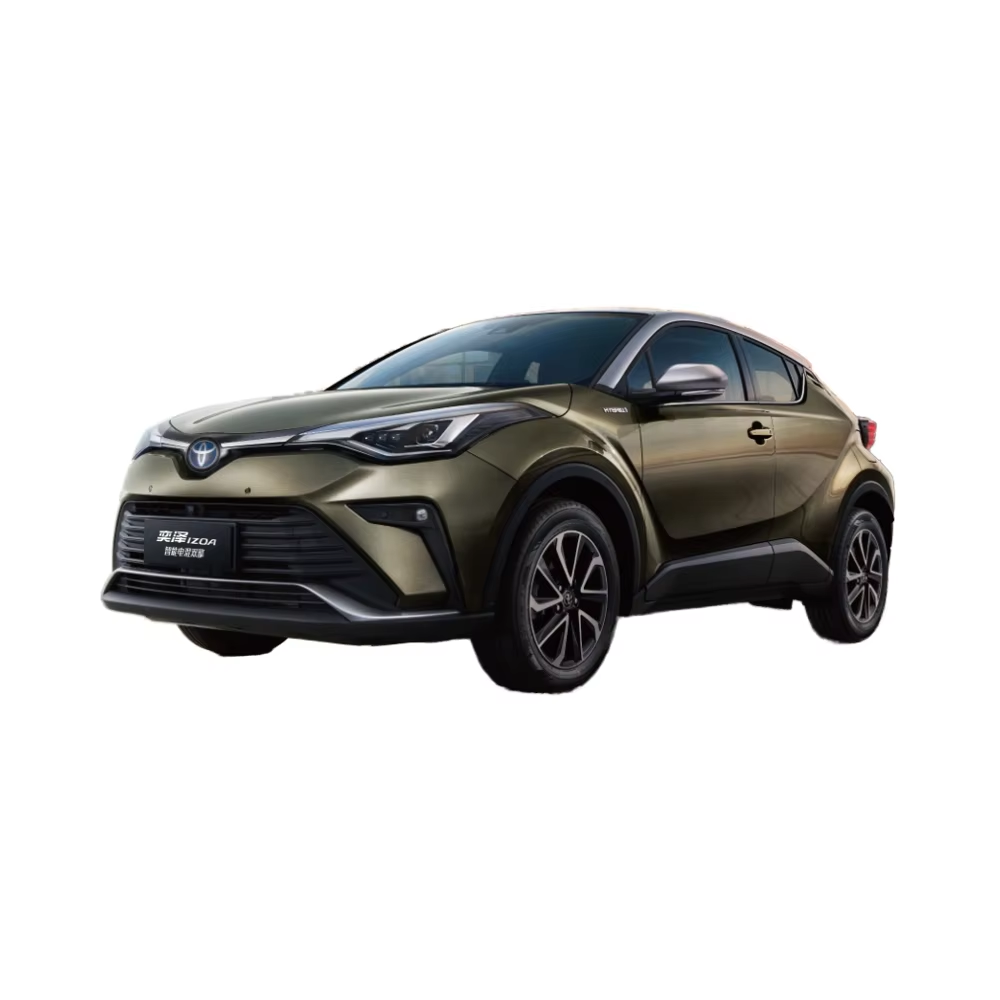

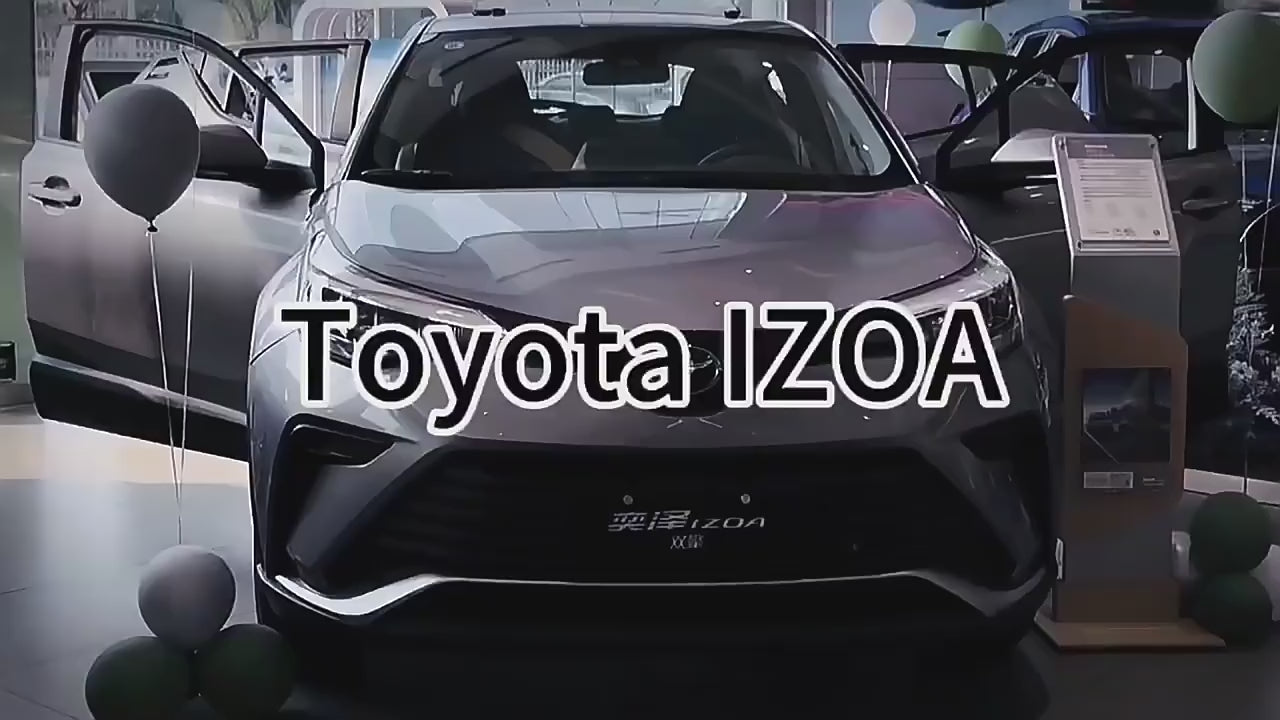

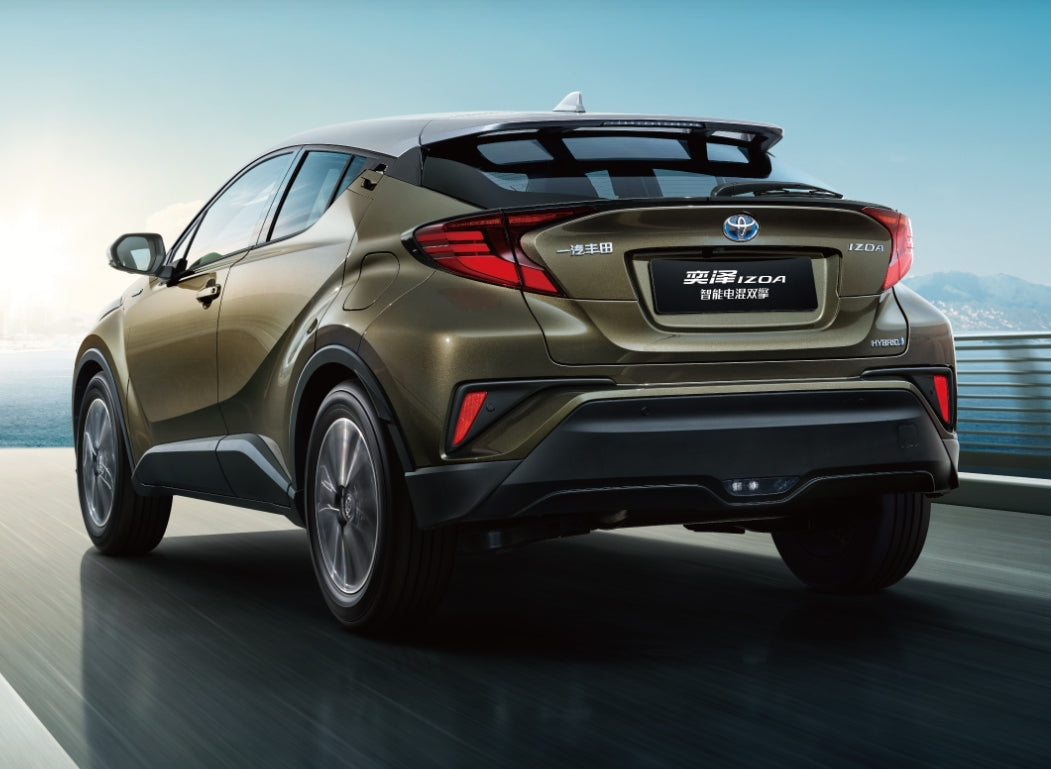

IZOA 2023 Dual Engine 2.0L Yixiang Edition |
| Manufacturer |
a Toyota |
| level |
small SUV |
| Energy type |
Gas-electric hybrid |
| Environmental protection standards |
National VI |
| time to market |
2023-05-25 |
| engine |
2.0L146 horsepower L4 |
| Maximum power/maximum torque |
107kWN·m |
| Motor[Ps] |
109 |
| gearbox |
Electronic continuously variable transmission (E-CVT) |
| Length*width*height[mm] |
4390*1795*1565 |
| Body structure |
5-door, 5-seater SUV |
| Maximum speed [km/h] |
175 |
| Official 0-100km/h acceleration [s] |
10.1 |
| WLTC combined fuel consumption [Lkm] |
5.11 |
| Vehicle warranty |
3 years or 100,000 kilometers |
| Exterior color |
|

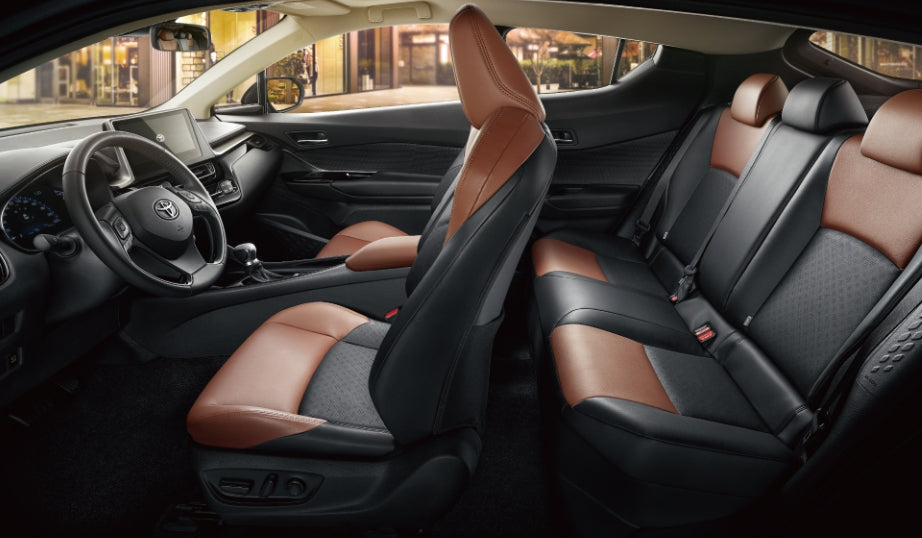

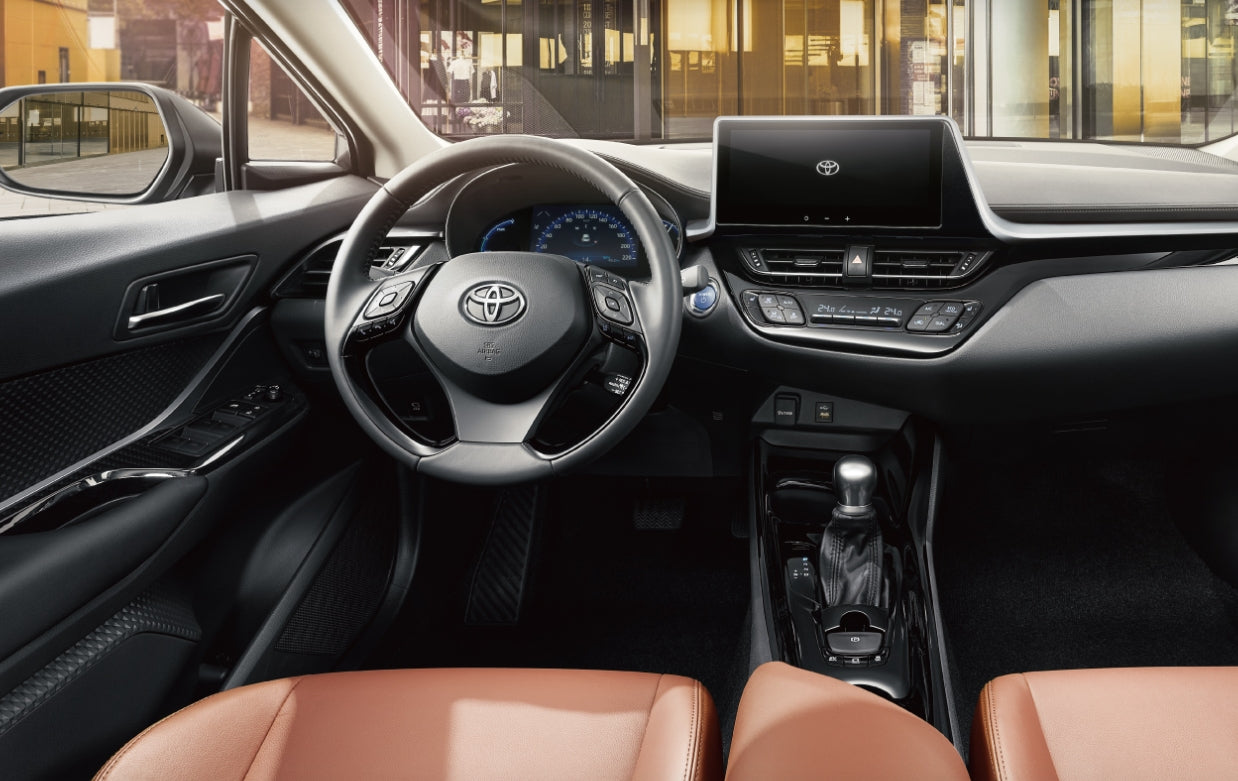

| interior color |
|
| Body |
|
| Length[mm] |
4390 |
| Width[mm] |
1795 |
| Height[mm] |
1565 |
| Wheelbase [mm] |
2640 |
| Front wheelbase [mm] |
1550 |
| Rear wheelbase [mm] |
1550 |
| Car door opening method |
swing door |
| Number of doors |
5 |
| number of seats |
5 |
| Approach angle [°] |
14 |
| Departure angle[°] |
20 |
| Minimum ground clearance without load [mm] |
149 |
| Minimum turning radius [m] |
5.2 |
| Fuel tank volume [L] |
43 |
| Official trunk volume [L] |
289 |
| Curb weight [kg] |
1570 |
| Full load mass [kg] |
2010 |
| engine |
|
| engine model |
M20B |
| Displacement [mL] |
1987 |
| Displacement[L] |
2.0 |
| Intake form |
inhale naturally |
| Engine layout |
horizontal |
| Cylinder arrangement |
L |
| Number of cylinders [number] |
4 |
| Number of valves per cylinder [number] |
4 |
| Air Supply |
DOHC |
| Maximum power [kW] |
107 |
| Maximum horsepower[Ps] |
146 |
| Maximum power speed [rpm] |
6000 |
| Maximum torque [N·m] |
188 |
| Maximum torque speed [rpm] |
4400-5200 |
| Maximum net power [kW] |
107 |
| fuel mark |
No. 92 |
| Fuel supply method |
mixed jet |
| Cylinder head material |
Aluminum alloy |
| Cylinder material |
Aluminum alloy |
| Environmental protection standards |
National VI |
| electric motor |
|
| Number of drive motors |
single motor |
| Motor layout |
frontload |
| Motor type |
Permanent magnet synchronization |
| Total motor power [kW] |
80 |
| Total motor horsepower [Ps] |
109 |
| Motor total torque [N·m] |
202 |
| Maximum power of front electric motor [kW] |
80 |
| Maximum torque of front electric motor [N·m] |
202 |
| System comprehensive power [kW] |
135 |
| System comprehensive horsepower [Ps] |
184 |
| Battery/recharge |
|
| Battery Type |
NiMH batteries |
| Battery temperature management |
- |
| Vehicle battery swap |
- |
| Battery pack warranty |
8 years or 200,000 kilometers |
| gearbox |
|
| Gearbox description |
E-CVT continuously variable transmission |
| Gearbox type |
Electronic continuously variable transmission (E-CVT) |
| Number of gears |
- |
| chassis steering |
|
| Drive form |
Front wheel drive |
| four-wheel drive |
- |
| Center differential structure |
- |
| Front suspension type |
MacPherson independent suspension |
| rear suspension type |
Multi-link independent suspension |
| Assist type |
electric assist |
| Adjustable suspension features |
- |
| Adjustable suspension types |
- |
| Body structure |
Load-bearing |
| limited slip differential |
- |
| differential lock |
- |
| wheel brake |
|
| Front brake type |
●Ventilated disc type |
| rear brake type |
●Solid disc type |
| Parking brake type |
Electronic parking |
| Front tire specifications |
●215/60 R17 |
| Rear tire specifications |
●215/60 R17 |
| Spare tire |
●Not full size |
| Spare tire placement |
●In the trunk |
