| Basic Information |

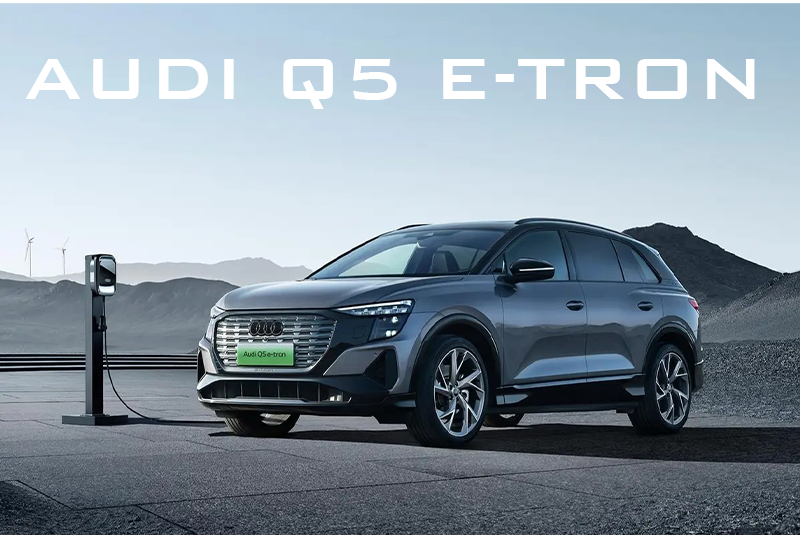

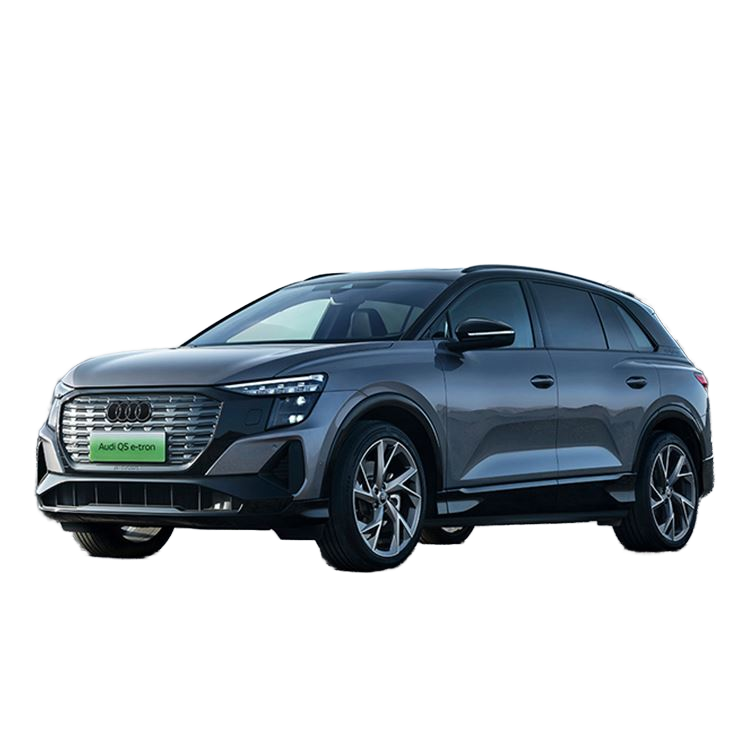

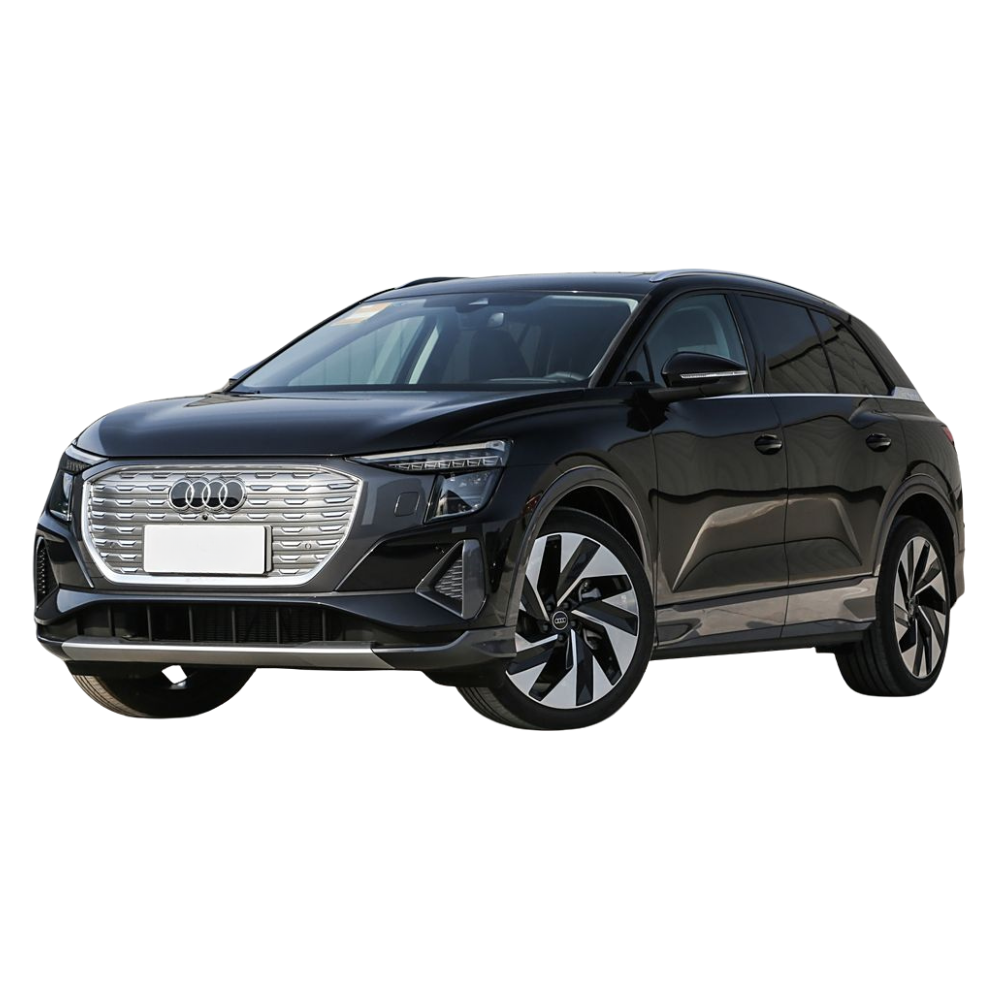

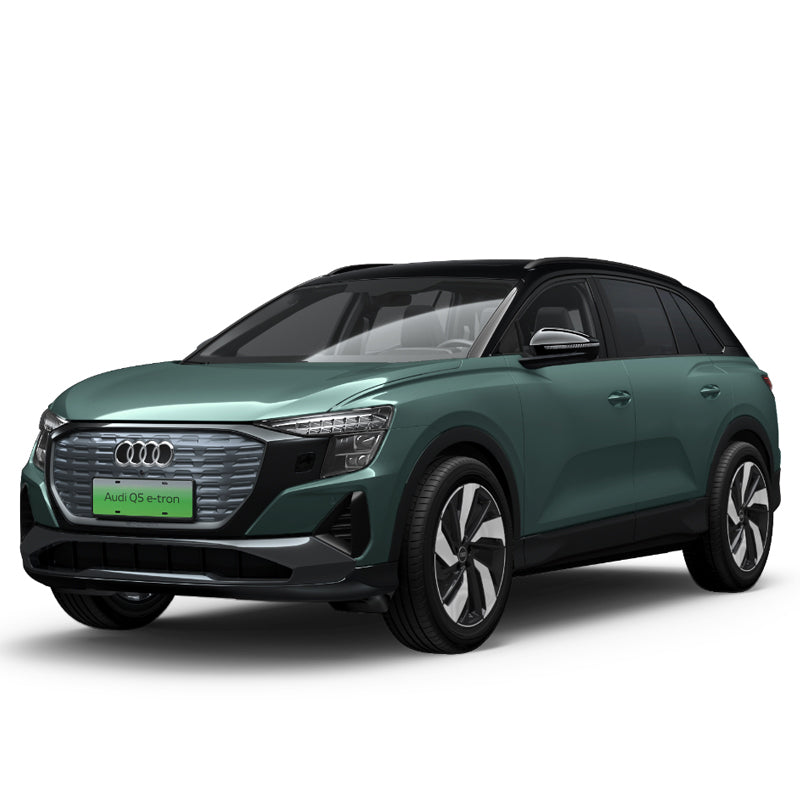

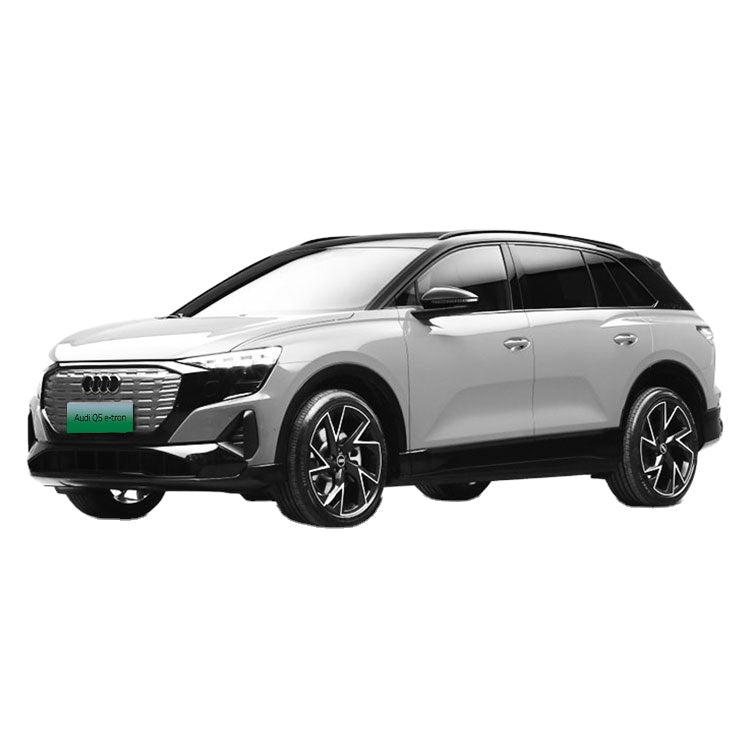

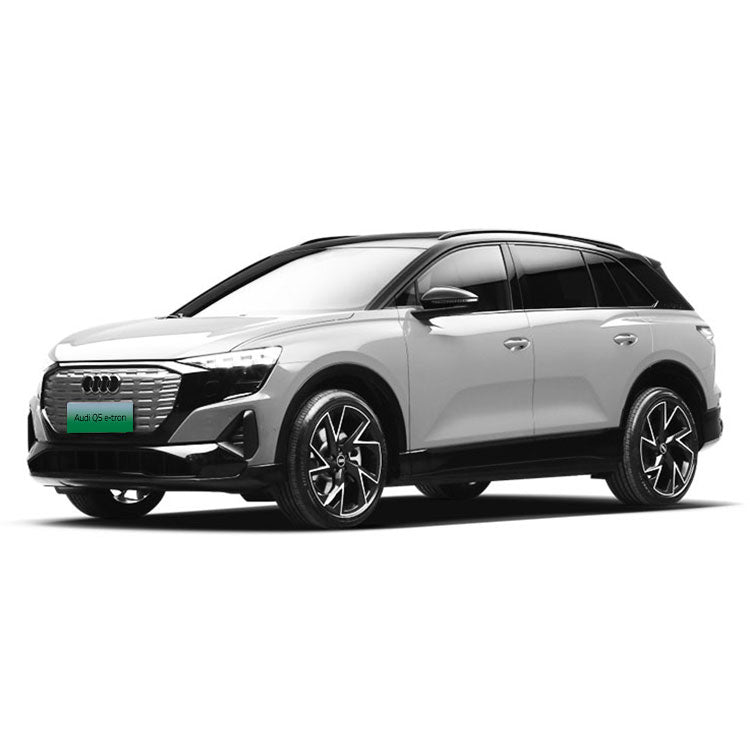

Audi Q5e-tron 2024 40e-tron Star Knight Edition Brocade Suit |
| Manufacturer |
SAIC Audi New Energy |
| level |
Medium and large SUV |
| Energy Type |
Pure Electric |
| Availability |
2024-06-01 |
| CLTC pure electric range [km] |
560 |
| Fast charging time[h] |
0.67 |
| Fast charge capacity[%] |
20-80 |
| Slow charging time [h] |
12 |
| Slow charging capacity[%] |
0-100 |
| Motor [Ps] |
204 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4876*1860*1675 |
| Body structure |
5-door 7-seater SUV |
| Maximum speed [km/h] |
160 |
| Official 0-100km/h acceleration [s] |
9.3 |
| Vehicle warranty |
3 years or 100,000 km |
| Exterior color |
|
| Interior Color |
|
| Body |
|
| Length [mm] |
4876 |
| Width [mm] |
1860 |
| Height [mm] |
1675 |
| Wheelbase[mm] |
2965 |
| Front track [mm] |
1587 |
| Rear track [mm] |
1563 |
| Door opening method |
Swing door |
| Number of doors |
5 |
| number of seats |
7 |
| Approach angle [°] |
17 |
| Departure angle [°] |
20 |
| Drag coefficient [Cd] |
0.29 |
| Official trunk volume [L] |
1776 |
| Curb weight[kg] |
2325 |
| Full load mass [kg] |
2885 |
| Electric Motor |
|
| Motor Brand |
United Electronics |
| Motor Model |
EBP |
| Number of drive motors |
Single motor |
| Motor layout |
Post |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
150 |
| Total motor horsepower [Ps] |
204 |
| Total torque of the motor [N·m] |
310 |
| Maximum power of front motor [kW] |
- |
| Maximum power of rear motor [kW] |
150 |
| Maximum torque of rear motor [N·m] |
310 |
| Battery/Energy Recharge |
|
| Battery Type |
Ternary lithium battery |
| Battery brand |
SAIC Volkswagen |
| Battery Temperature Management |
● Low temperature heating |
| CLTC pure electric range [km] |
560 |
| Battery capacity [kWh] |
83.4 |
| Battery energy density [Wh/kg] |
175 |
| Electricity consumption per 100 km [kWhkm] |
15.9 |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
●Right rear side of the vehicle |
| Fast charging port location |
●Right rear side of the vehicle |
| High voltage fast charging platform |
●400V platform |
| Fast charging time[min] |
40 |
| Fast charging time[h] |
0.67 |
| Fast charge capacity[%] |
20-80 |
| Slow charging power [kW] |
7 |
| Slow charging time [h] |
12 |
| Slow charging capacity[%] |
0-100 |
| Vehicle battery replacement |
- |
| Home charging station |
● |
| On-board charging gun |
- |
| External discharge function |
- |
| Battery Pack Warranty |
8 years or 160,000 km |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Rear-engine, rear-wheel drive |
| Four-wheel drive |
- |
| Center differential structure |
- |
| Front suspension type |
McPherson independent suspension |
| Rear suspension type |
Multi-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
- |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
Drum type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
235/50 R20 |
| Rear tire specifications |
265/45 R20 |
| Spare tire |
No spare tire |
