| Basic Information |

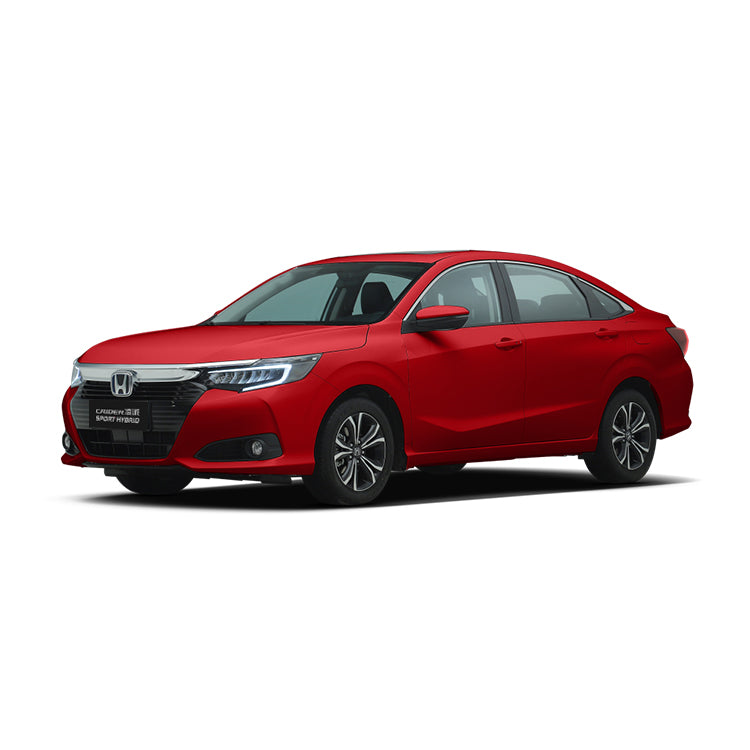

Crider 2024 e:HEV1.5LE-CVT sharp flagship version |
| Manufacturer |
GAC Honda |
| level |
Compact car |
| Energy Type |
Hybrid |
| Environmental standards |
National VI |
| Availability |
2023-05-26 |
| engine |
1.5L 109HP L4 |
| Maximum power [kW] |
80 |
| Maximum torque [N·m] |
134 |
| Motor [Ps] |
131 |
| Gearbox |
Electronic Continuously Variable Transmission (E-CVT) |
| Length*width*height[mm] |
4766*1804*1509 |
| Body structure |
4-door 5-seater sedan |
| Maximum speed [km/h] |
180 |
| WLTC comprehensive fuel consumption [L/km] |
4.79 |
| Vehicle warranty |
3 years or 100,000 km |
| Length [mm] |
4766 |
| Width [mm] |
1804 |
| Height [mm] |
1509 |
| Wheelbase[mm] |
2730 |
| Front wheel track[mm] |
1520 |
| Rear track [mm] |
1512 |
| Door opening method |
Swing door |
| Number of doors |
4 |
| Seating capacity |
5 |
| Approach angle [°] |
13 |
| Departure angle [°] |
20 |
| Minimum turning radius [m] |
5.5 |
| Fuel tank capacity [L] |
40 |
| Official trunk volume [L] |
561 |
| Curb weight[kg] |
1425 |
| Full load mass [kg] |
1801 |
| engine |
|
| Engine Model |
LEB41 |
| Displacement [mL] |
1498 |
| Displacement [L] |
1.5 |
| Air intake form |
Naturally Aspirated |
| Engine layout |
Sideways |
| Cylinder arrangement |
L |
| Number of cylinders |
4 |
| Number of valves per cylinder |
4 |
| Compression ratio |
13.5 |
| Valve mechanism |
DOHC |
| Maximum power [kW] |
80 |
| Maximum horsepower [Ps] |
109 |
| Maximum power speed [rpm] |
6000 |
| Maximum torque [N·m] |
134 |
| Maximum torque speed [rpm] |
5000 |
| Maximum net power [kW] |
80 |
| Fuel grade |
No. 92 |
| Oil supply method |
Multi-point EFI |
| Cylinder head material |
Aluminum Alloy |
| Cylinder material |
Aluminum Alloy |
| Environmental standards |
National VI |
| Electric Motor |
|
| Number of drive motors |
Single motor |
| Motor layout |
Pre |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
96 |
| Total motor horsepower [Ps] |
131 |
| Total torque of the motor [N·m] |
267 |
| Maximum power of front motor [kW] |
96 |
| Maximum torque of front motor [N·m] |
267 |
| System total power [kW] |
113 |
| System comprehensive horsepower [Ps] |
154 |
| Battery/Energy Recharge |
|
| Battery Type |
Ternary lithium battery |
| Battery Temperature Management |
- |
| Vehicle battery replacement |
- |
| Battery Pack Warranty |
10 years or 200,000 km |
| Gearbox |
|
| Gearbox Description |
E-CVT continuously variable transmission |
| Gearbox Type |
Electronic Continuously Variable Transmission (E-CVT) |
| Number of gears |
- |
| Chassis steering |
|
| Drive type |
Front front drive |
| Four-wheel drive |
- |
| Center differential structure |
- |
| Front suspension type |
McPherson independent suspension |
| Rear suspension type |
Torsion beam non-independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
- |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
Solid disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
215/R17 |
| Rear tire specifications |
215/R17 |
| Spare tire |
●Not full size |
| Spare tire placement |
●In the trunk |
