| Basic information |

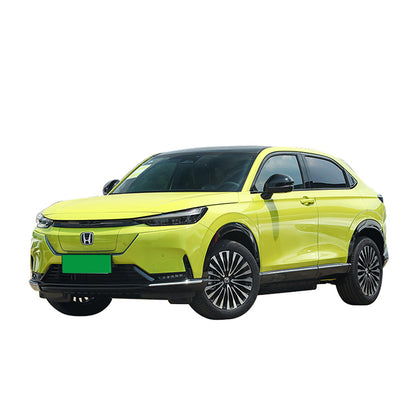

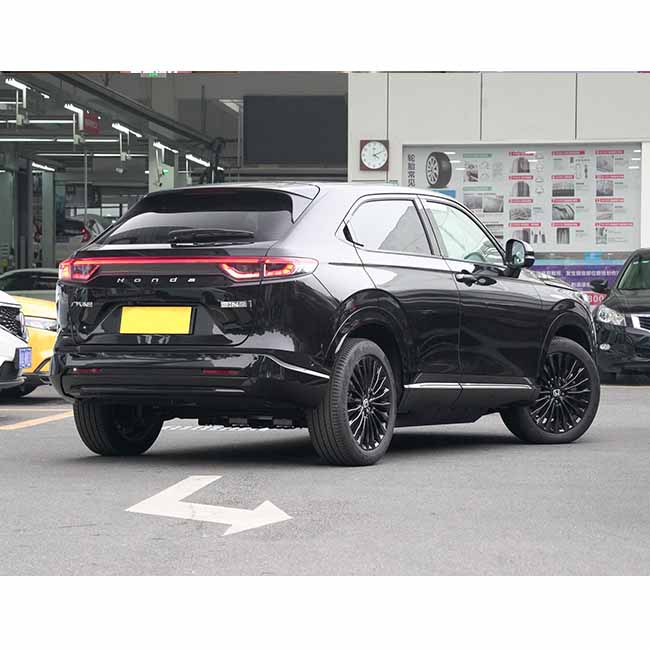

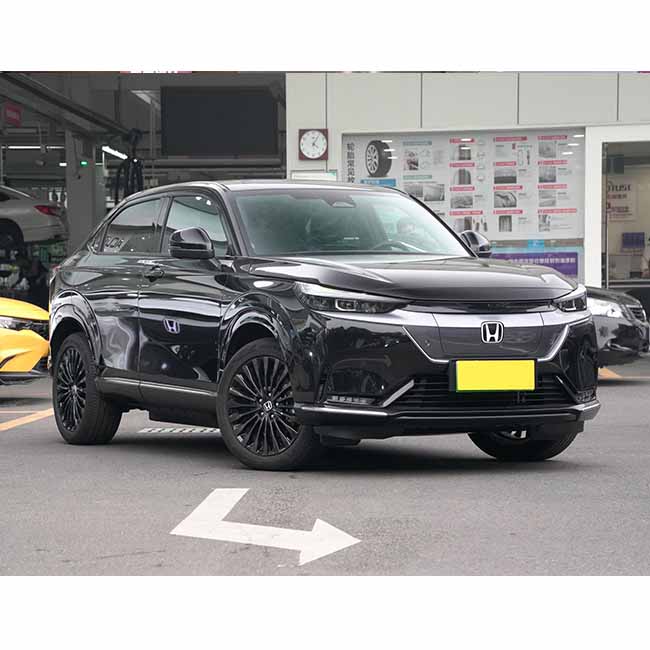

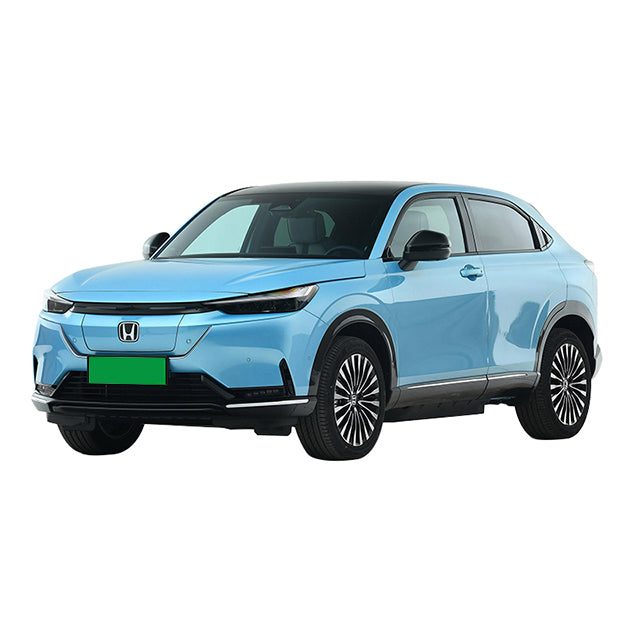

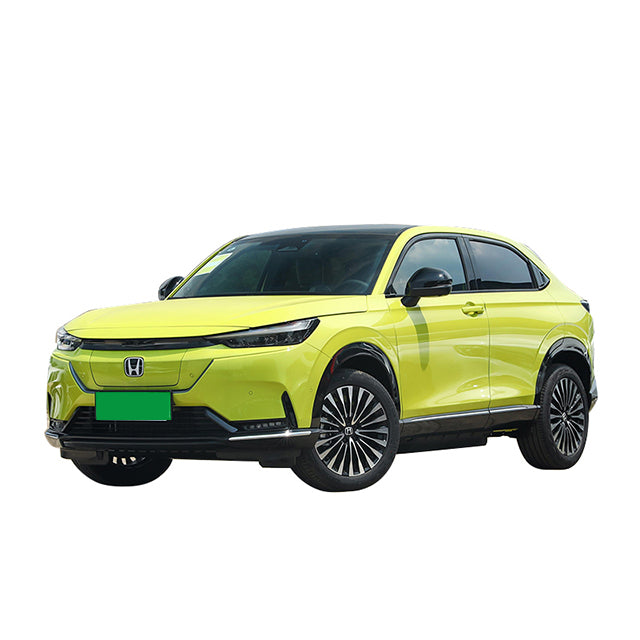

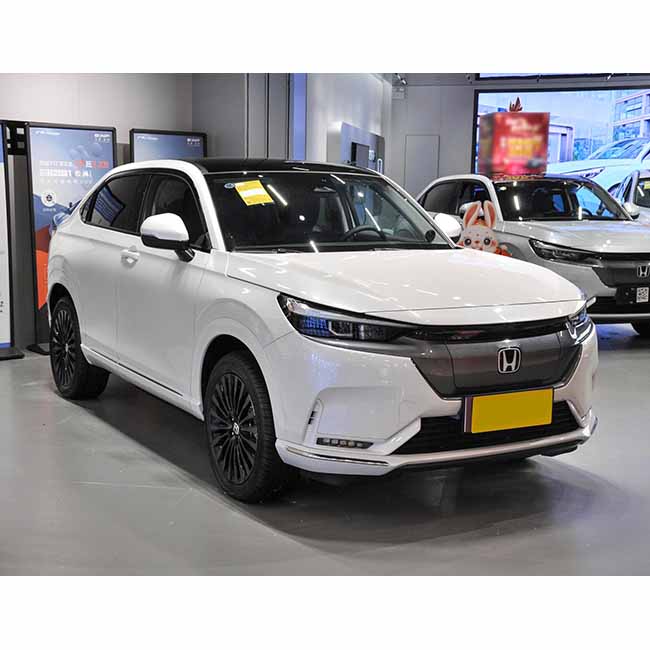

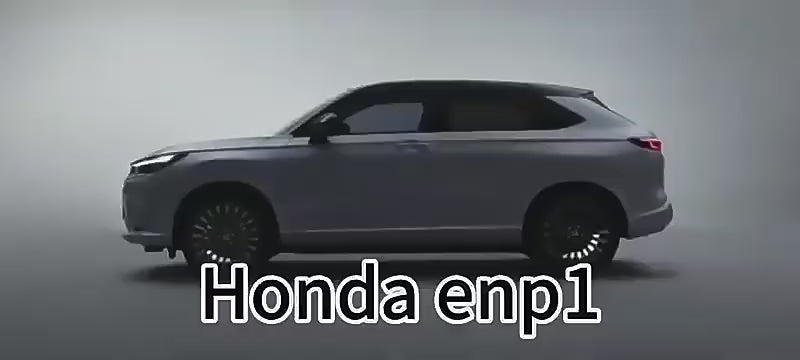

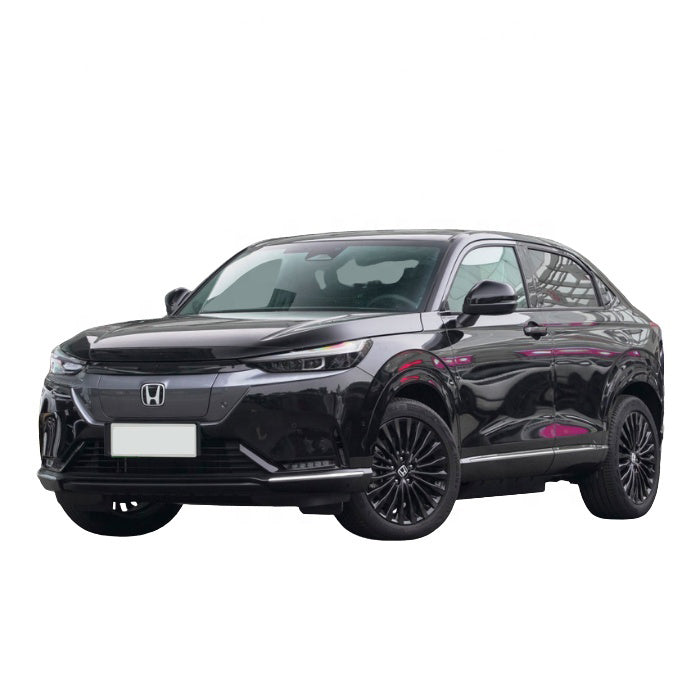

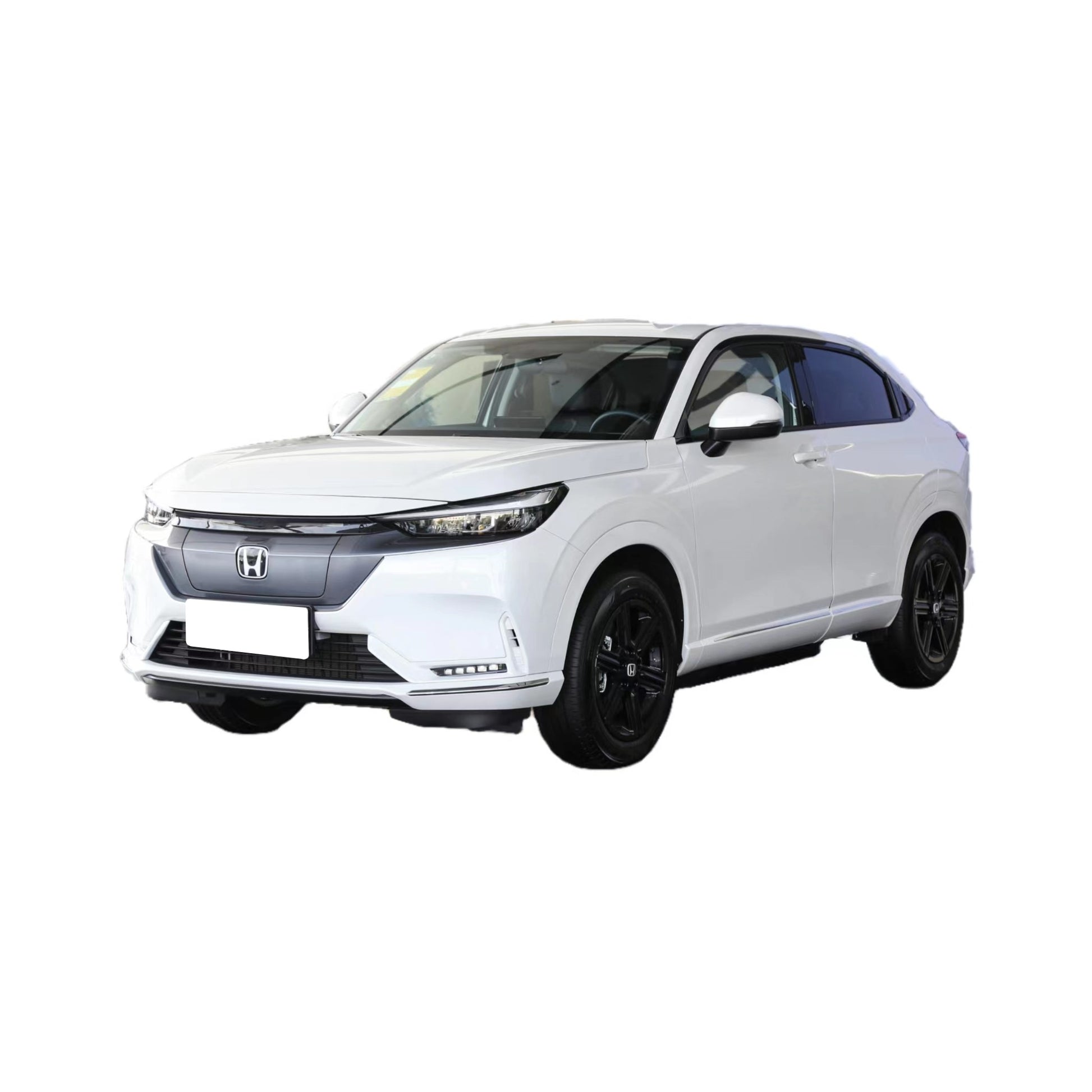

E:NP1 pole 1 23 510km Extreme Edition |
| Manufacturer |
Guangqi Honda New Energy |
| Level |
Small SUV |
| Type of energy |
Pure electricity |
| Time to market |
2022-06-20 |
| CLTC pure electric endurance [km] |
510 |
| Fast charging time [H] |
0.67 |
| Fast charge [%] |
30-80 |
| Slow charging time [H] |
9.5 |
| Motor [Ps] |
204 |
| Gearbox |
1st gear fixed gear ratio |
| L * W * H [mm] |
4388*1790*1560 |
| Body structure |
5-door, 5-seat SUV |
| Maximum speed [km/H] |
150 |
| Vehicle warranty |
3 years or 120,000km |
| Appearance color |
|
| Interior color |
|
| Body |
|
| Length [mm] |
4388 |
| Width [mm] |
1790 |
| Height [mm] |
1560 |
| Wheelbase [mm] |
2610 |
| Front track [mm] |
1535 |
| Rear track [mm] |
1540 |
| Door opening mode |
Side-hung door |
| Number of doors |
5 |
| Number of seats |
5 |
| Approach angle [°] |
20 |
| Departure angle [°] |
29 |
| Minimum turning radius [m] |
5.7 |
| Curb weight [kg] |
1683 |
| Loaded mass [kg] |
2108 |
| Motor |
|
| Number of drive motors |
Single motor |
| Motor layout |
Front |
| Motor type |
Permanent magnet synchronous |
| Total motor power [kW] |
150 |
| Total Motor Horsepower [Ps] |
204 |
| Total motor torque [N · m] |
310 |
| Maximum power of front motor [kW] |
150 |
| Maximum torque of front motor [N · m] |
310 |
| Battery/energy supplement |
|
| Battery type |
Ternary lithium battery |
| Battery brand |
Jiangsu Times |
| Battery temperature management |
● Low temperature heating ● Liquid cooling |
| CLTC pure electric endurance [km] |
510 |
| Battery capacity [kWh] |
68.8 |
| Battery energy density [Wh/kg] |
183 |
| Power consumption per 100 km [kWhkm] |
14 |
| Vehicle charging port |
● Slow charging port ● Fast charging port |
| Slow charging port position |
● Headstock |
| Fast charging port position |
● Headstock |
| Fast charging time [min] |
40 |
| Fast charging time [H] |
0.67 |
| Fast charge [%] |
30-80 |
| Slow charging time [H] |
9.5 |
| Vehicle power change |
- |
| Household charging pile |
- |
| On-board charging gun |
- |
| Battery pack warranty |
8 years or 150,000 km |
| Gearbox |
|
| Description of the transmission |
Electric vehicle single speed gearbox |
| Type of transmission |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive form |
Front drive |
| Four-wheel drive form |
- |
| Center differential structure |
- |
| Front suspension type |
McPherson independent suspension |
| Type of rear suspension |
Torsion beam dependent suspension |
| Type of assist |
Electric power |
| Adjustable suspension function |
- |
| Types of adjustable suspension |
- |
| Body structure |
Load-bearing type |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel braking |
|
| Type of front brake |
● Ventilated disc type |
| Type of rear brake |
● Solid disc type |
| Type of parking brake |
Electronic parking |

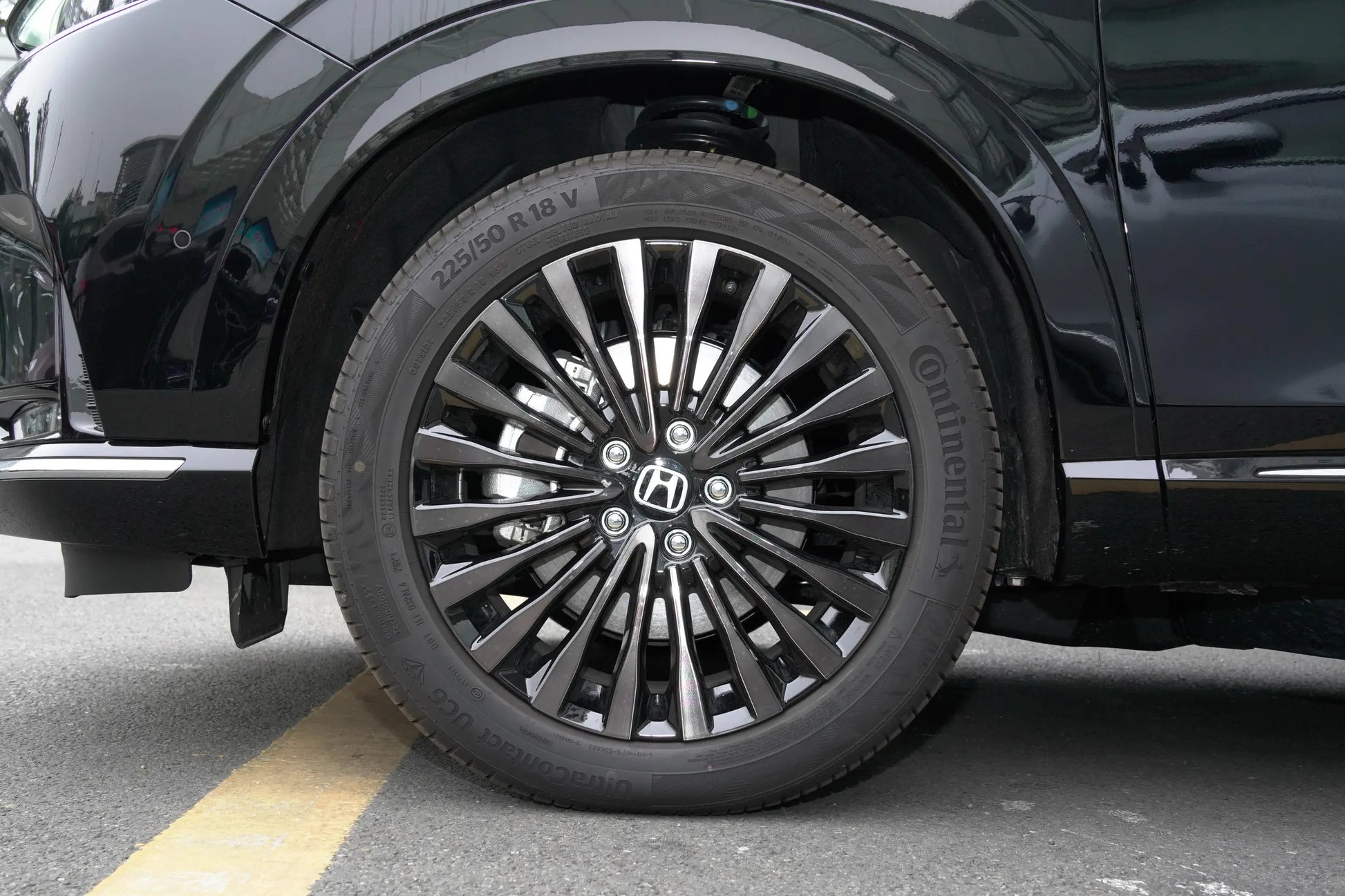

| Front tire size |
●225/50R18 |
| Rear tire size |
●225/50R18 |
| Spare tire |
● No spare tire |
