| Basic Information |

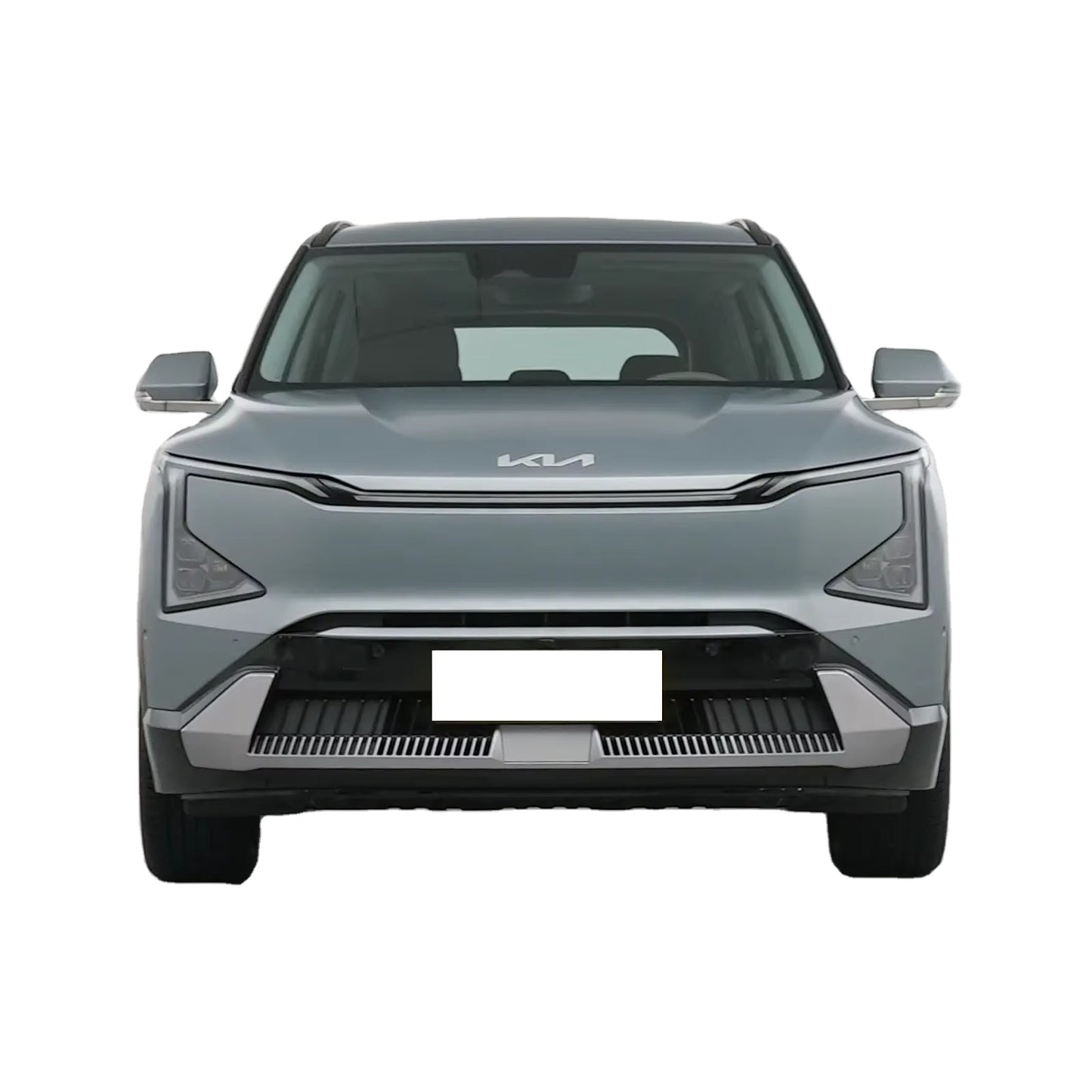

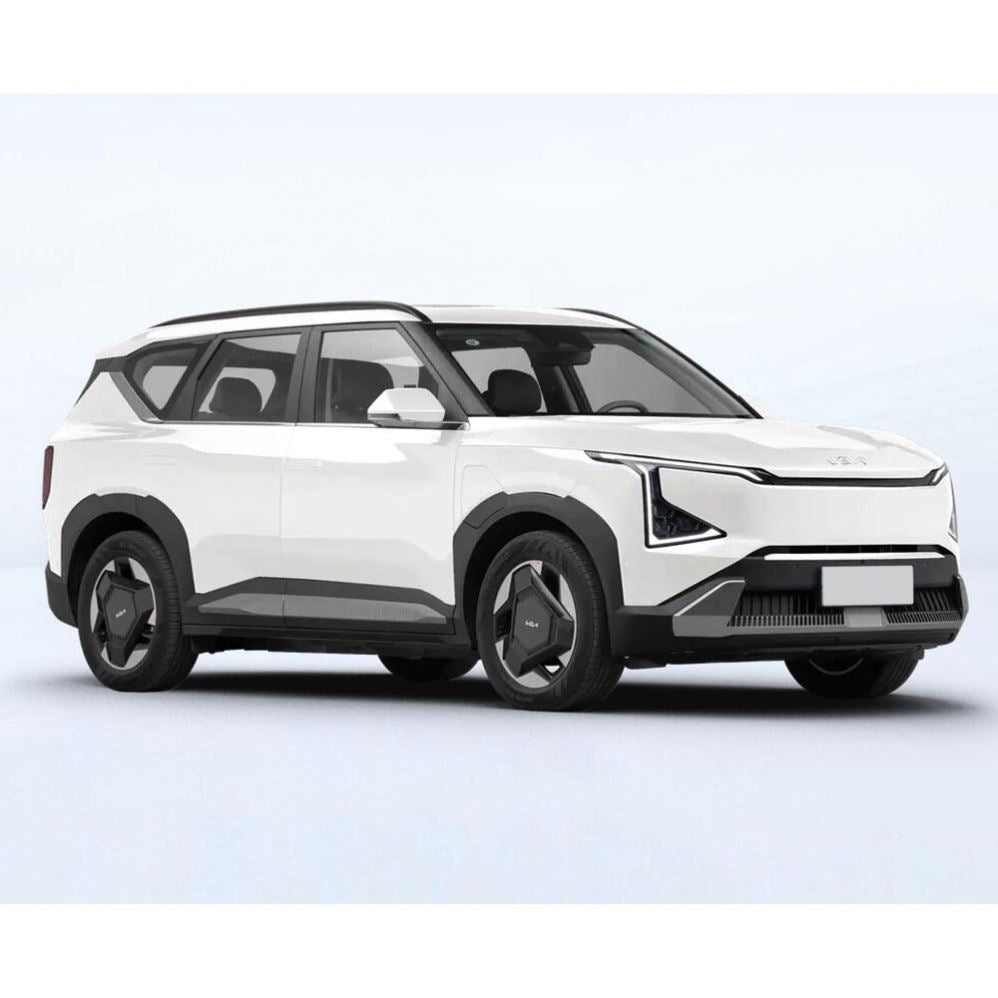

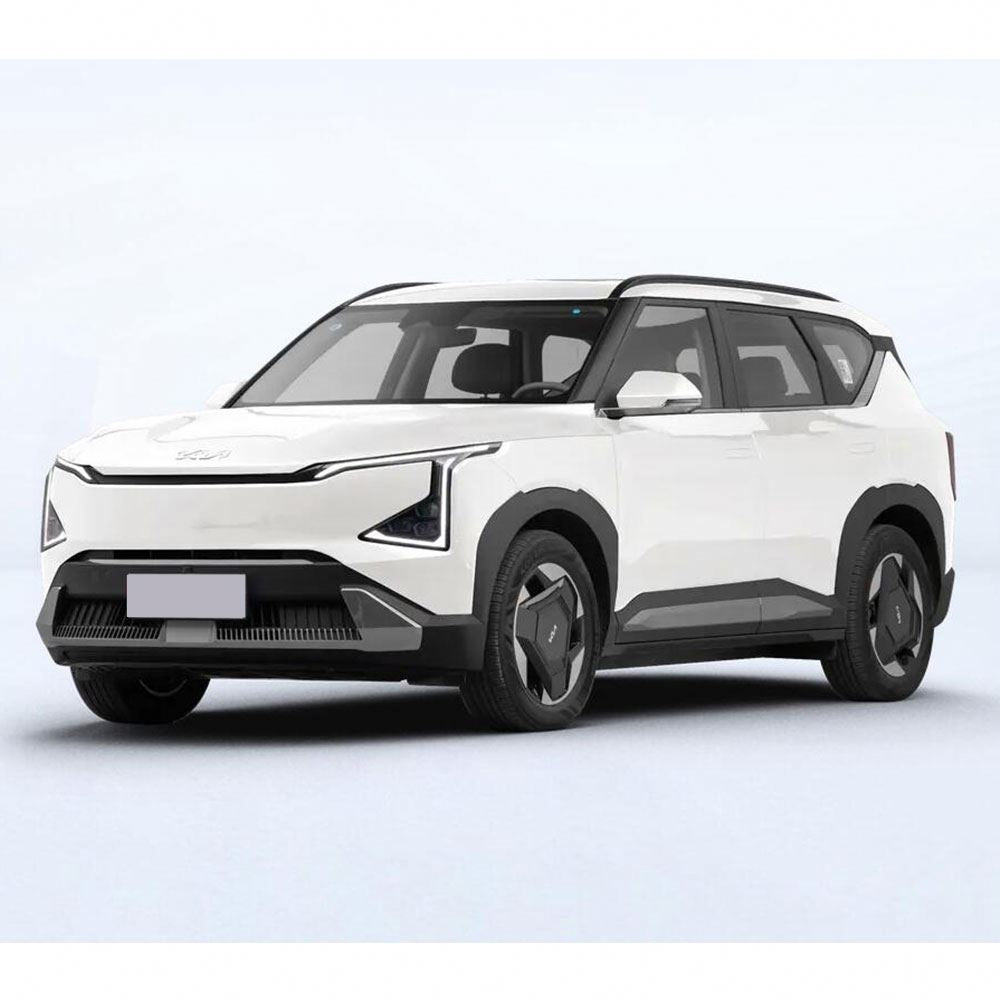

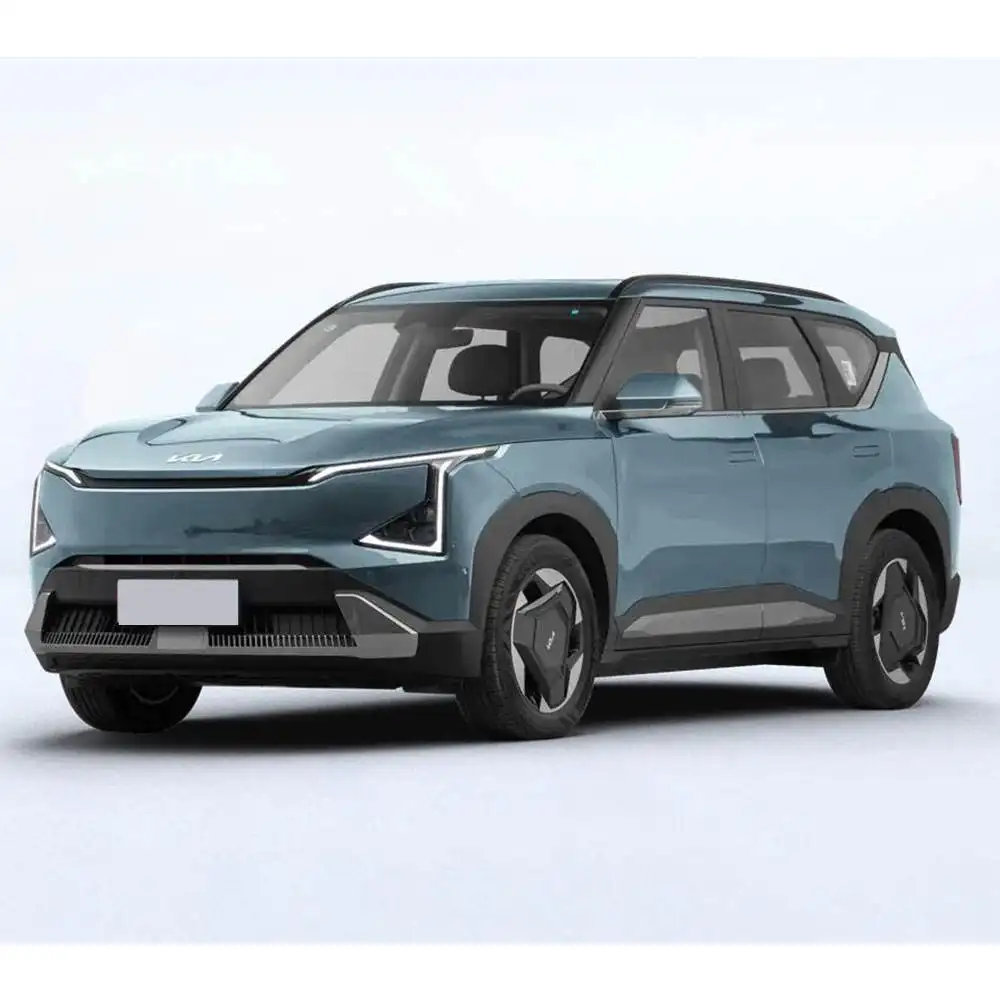

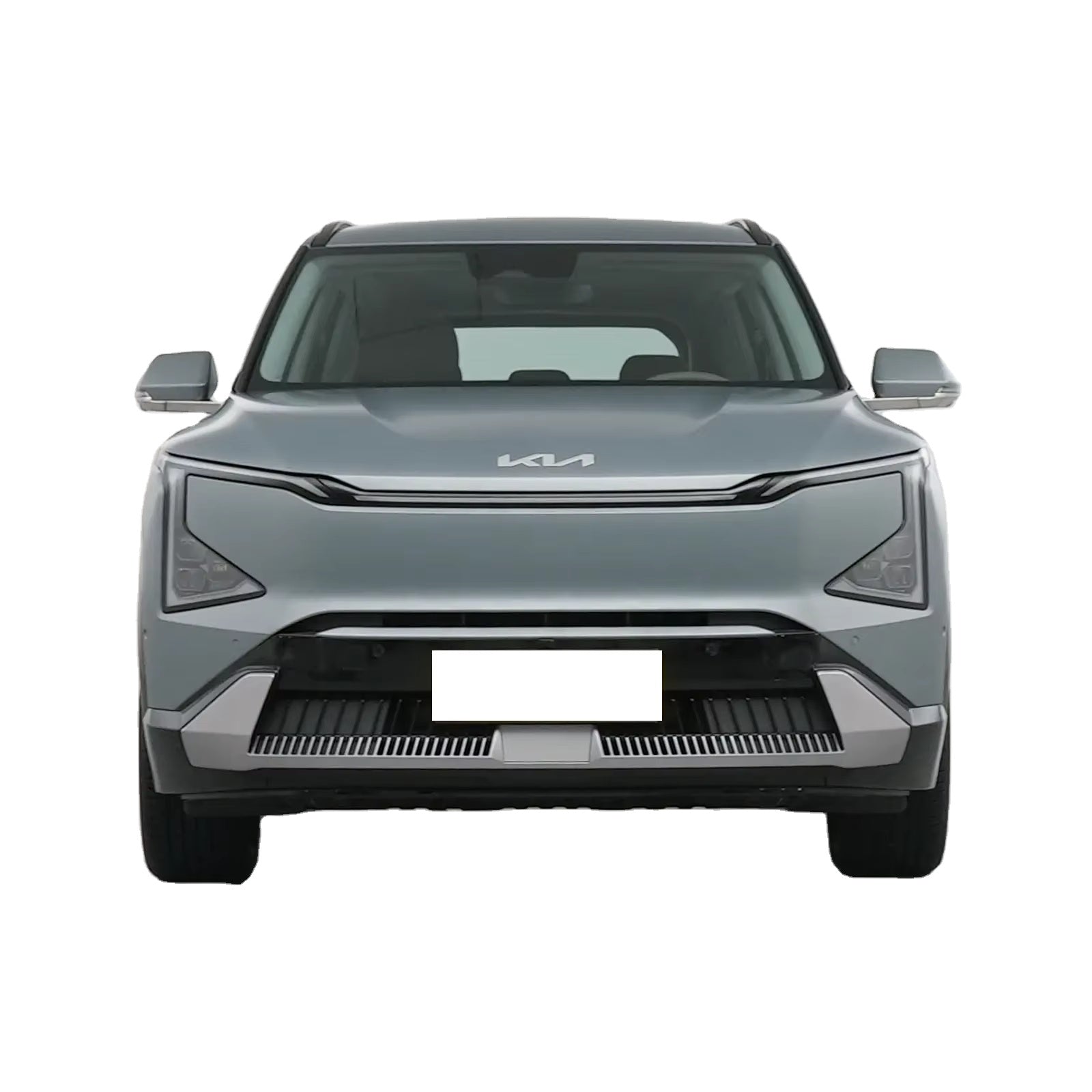

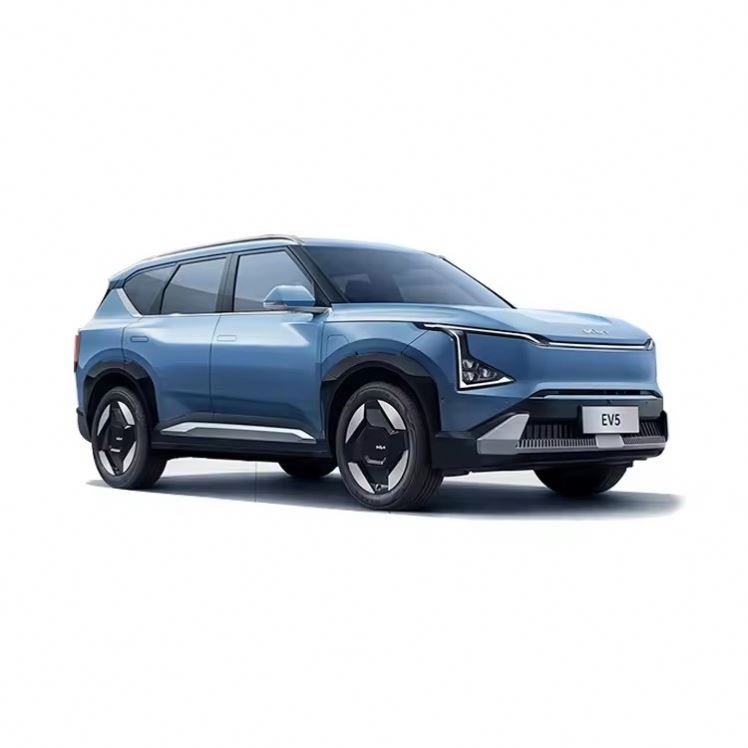

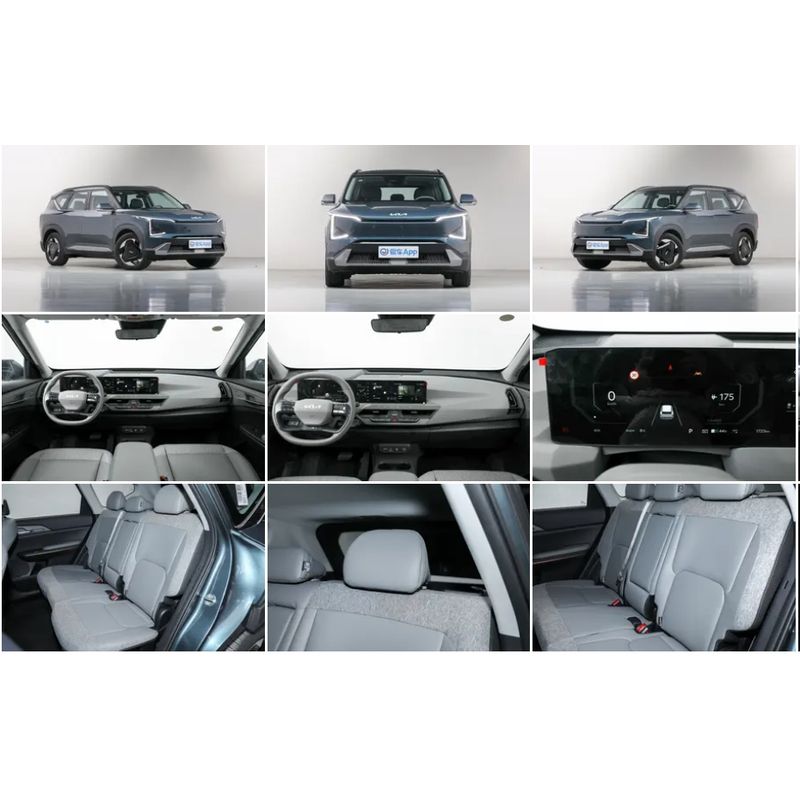

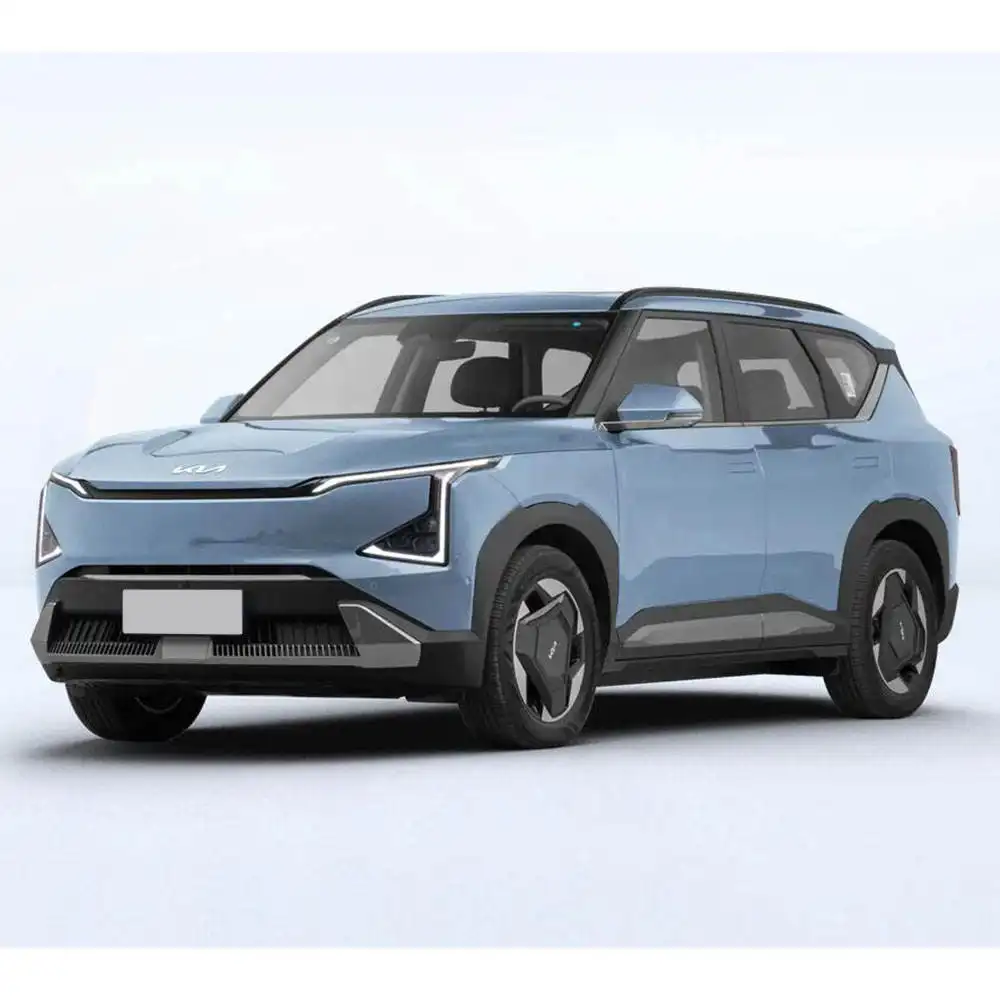

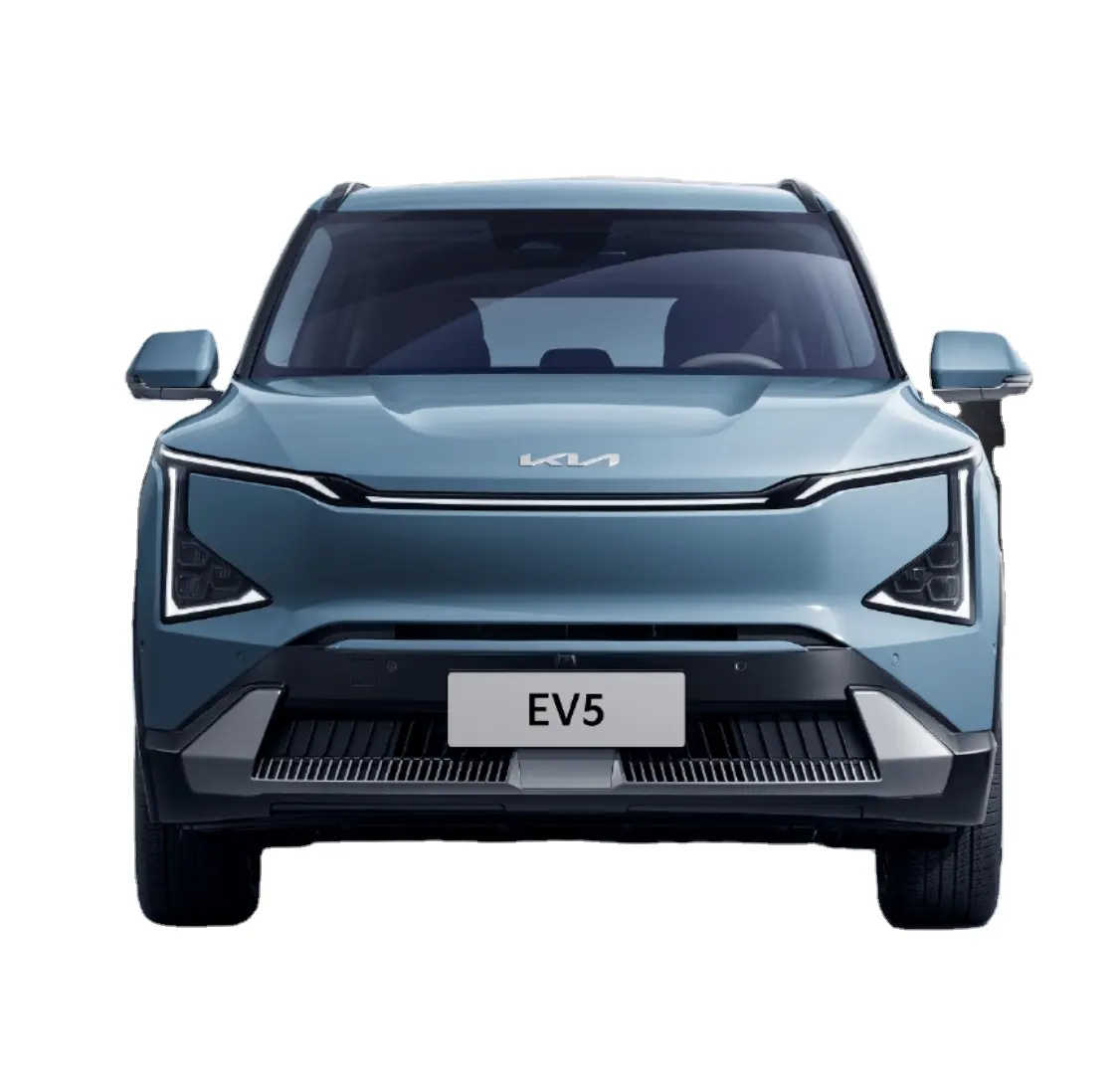

KIA EV5 2025 580km 4WD AirGT-Line |
| Manufacturer |
Yueda KIA New Energy |
| level |
Compact SUV |
| Energy Type |
Pure Electric |
| Availability |
2024-11-15 |
| CLTC pure electric cruising range [km] |
580 |
| Fast charging time [min] |
27 |
| Fast charge capacity[%] |
30-80 |
| Motor [Ps] |
317 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4615*1875*1715 |
| Body structure |
5-door 5-seater SUV |
| Maximum speed [km/h] |
185 |
| Power consumption per 100 km [kWhkm] |
- |
| Vehicle warranty |
5 years or 100,000 km |
| Appearance Color |
|
| Interior Color |
|
| Body |
|
| Length [mm] |
4615 |
| Width [mm] |
1875 |
| Height [mm] |
1715 |
| Wheelbase [mm] |
2750 |
| Front wheel track[mm] |
1626 |
| Rear track [mm] |
1631 |
| Door opening method |
Swing door |
| Number of doors |
5 |
| Seating capacity |
5 |
| Approach angle [°] |
19 |
| Departure angle [°] |
25 |
| Minimum turning radius [m] |
5.87 |
| Official front trunk volume [L] |
67 |
| Official trunk volume [L] |
513-1718 |
| Curb weight[kg] |
2230 |
| Full load mass [kg] |
- |
| Electric Motor |
|
| Motor Brand |
Vitesco Automotive |
| Motor Model |
Front EM16/rear to be confirmed |
| Number of drive motors |
Dual motors |
| Motor layout |
Front + rear |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
233 |
| Total motor horsepower [Ps] |
317 |
| Total torque of the motor [N·m] |
480 |
| Maximum power of front motor [kW] |
160 |
| Maximum torque of front motor [N·m] |
310 |
| Maximum power of rear motor [kW] |
73 |
| Maximum torque of rear motor [N·m] |
170 |
| Battery/Energy Recharge |
|
| Battery Type |
Lithium iron phosphate battery |
| Battery brand |
Fudi |
| Battery Temperature Management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
580 |
| Battery capacity [kWh] |
88.1 |
| Power consumption per 100 km [kWhkm] |
- |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
●Right front side of the vehicle |
| Fast charging port location |
●Right front side of the vehicle |
| High voltage fast charging platform |
●400V platform |
| Fast charging time[min] |
27 |
| Fast charging time[h] |
0.45 |
| Fast charge capacity[%] |
30-80 |
| Vehicle battery replacement |
- |
| Home charging station |
- |
| On-board charging gun |
○ |
| External discharge function |
● |
| Battery Pack Warranty |
8 years or 150,000 km |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Dual motor four-wheel drive |
| Four-wheel drive |
Electric four-wheel drive |
| Center differential structure |
- |
| Front suspension type |
McPherson independent suspension |
| Rear suspension type |
Multi-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
- |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
Solid disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
255/45 R20 |
| Rear tire specifications |
255/45 R20 |
| Spare tire |
●Tire repair tool only |
