| Basic Information |

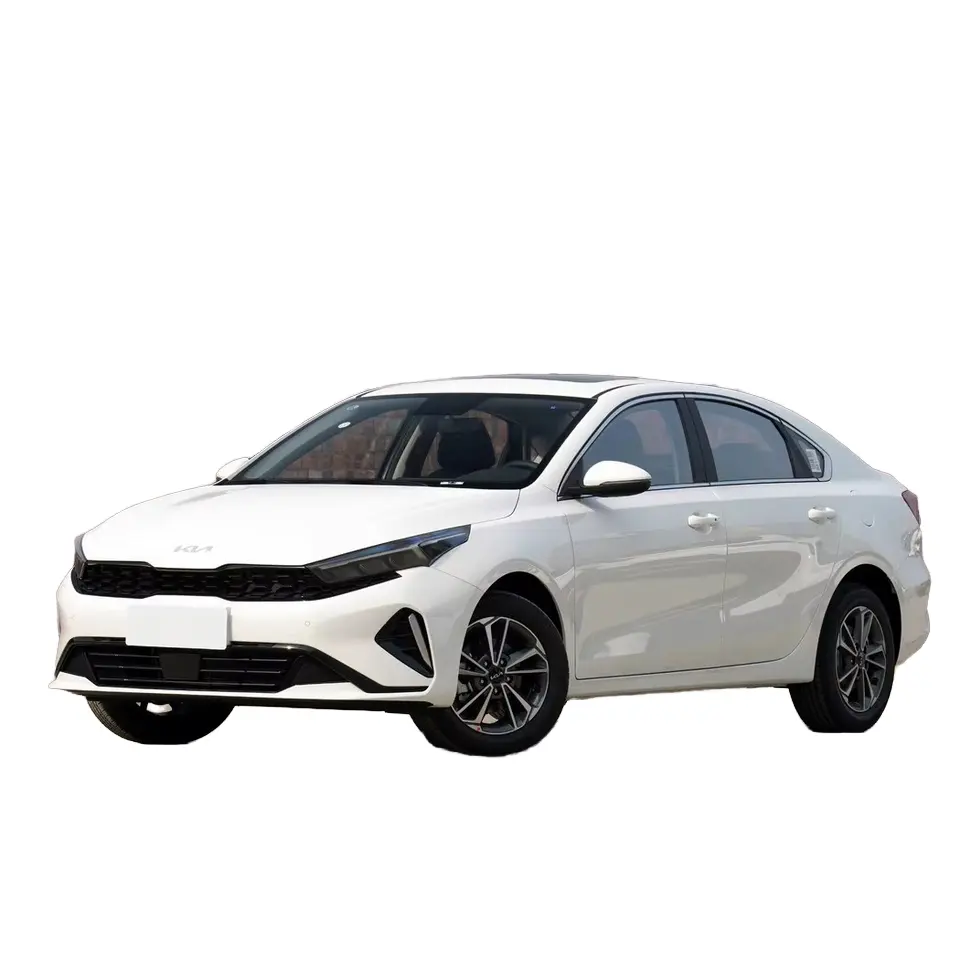

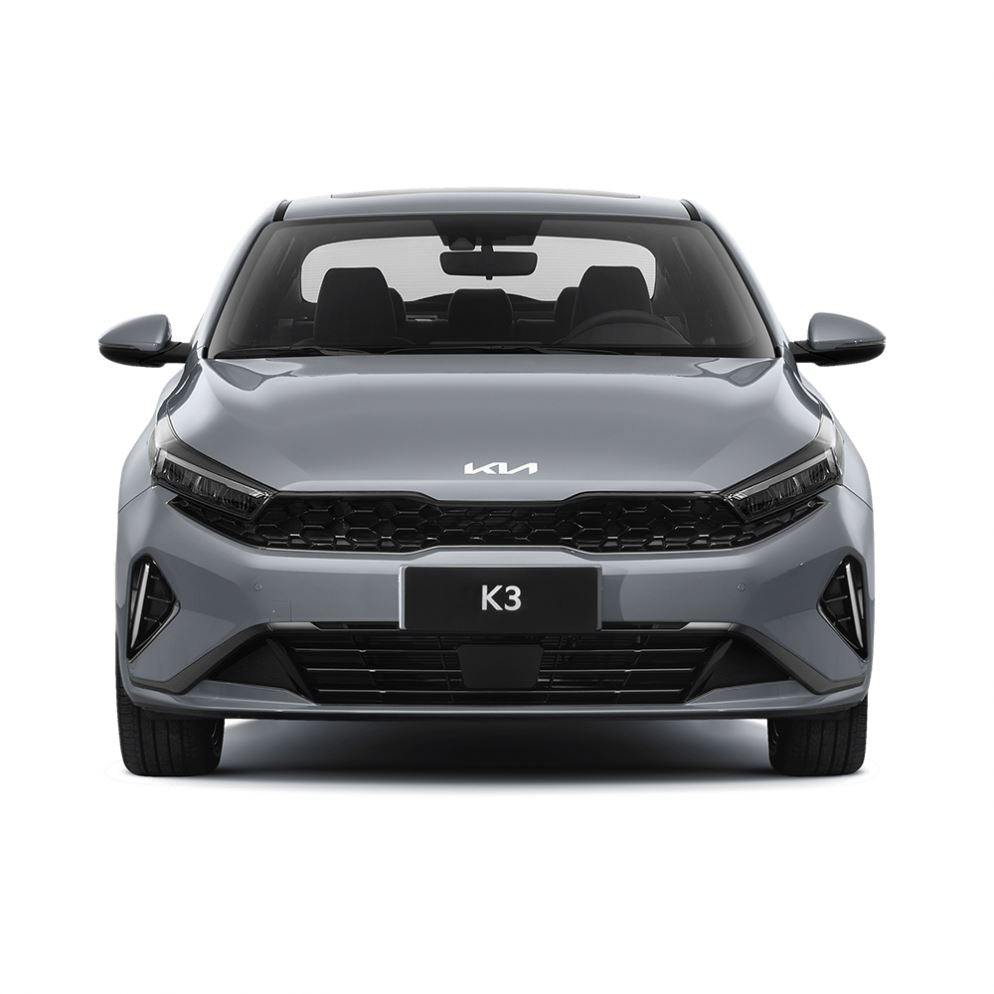

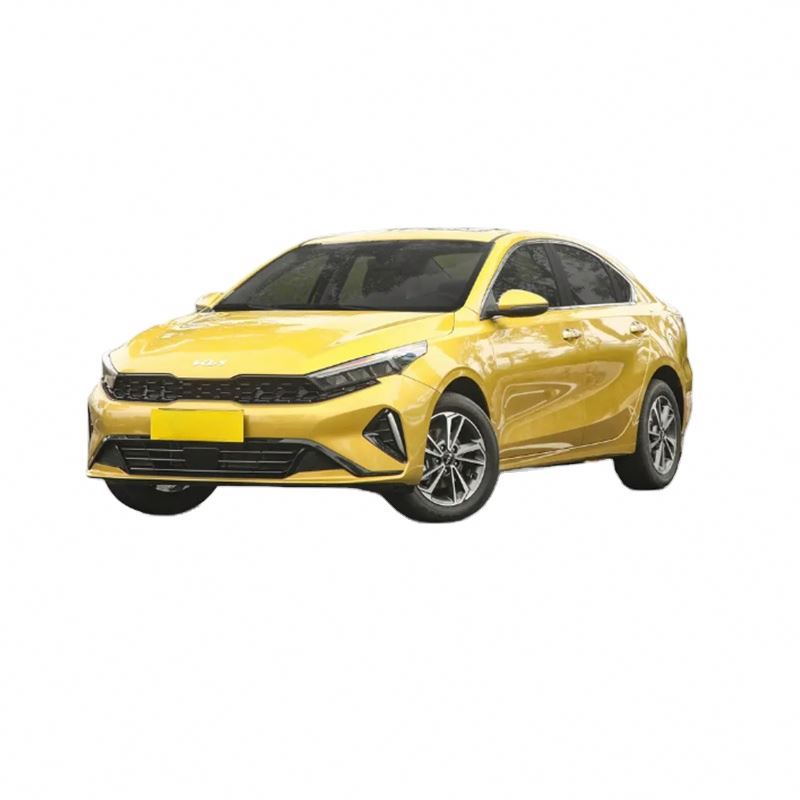

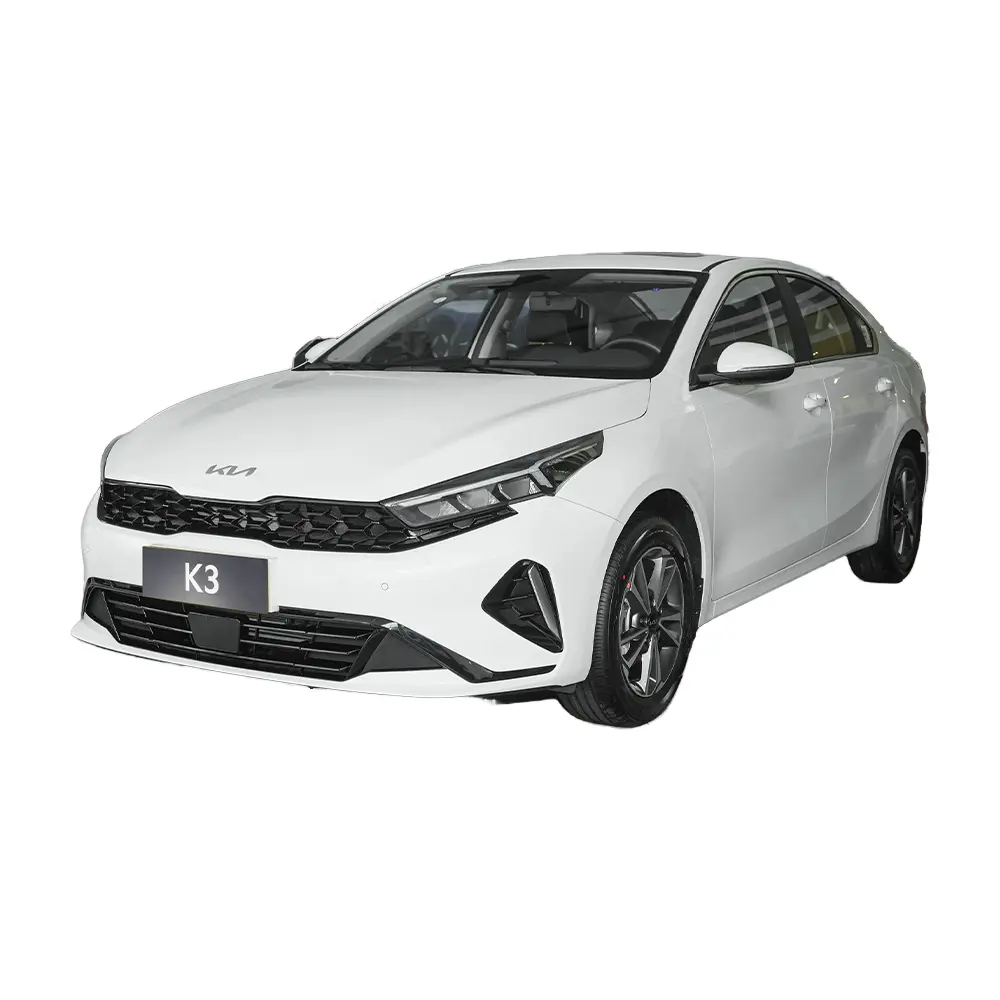

KIV K3 2023 1.5LCVT Deluxe Edition |
| Manufacturer |
Yueda KIV |
| level |
compact car |
| Energy type |
gasoline |
| Environmental protection standards |
National VI |
| time to market |
2023-02-13 |
| engine |
1.5L115 HP L4 |
| Maximum power/maximum torque |
84.5kWN·m |
| gearbox |
8-speed continuously variable transmission (CVT) |
| Length*width*height[mm] |
4666*1780*1450 |
| Body structure |
4-door, 5-seat sedan |
| Maximum speed [km/h] |
190 |
| WLTC combined fuel consumption [Lkm] |
5.77 |
| Vehicle warranty |
3 years or 100,000 kilometers |
| Exterior color |
|
| interior color |
|
| body |
|
| Length[mm] |
4666 |
| Width[mm] |
1780 |
| Height[mm] |
1450 |
| Wheelbase [mm] |
2700 |
| Front wheelbase [mm] |
1564 |
| Rear wheelbase [mm] |
1555 |
| Car door opening method |
swing door |
| Number of doors |
4 |
| number of seats |
5 |
| Approach angle [°] |
14 |
| Departure angle [°] |
12 |
| Minimum ground clearance with full load [mm] |
120 |
| Minimum ground clearance without load [mm] |
170 |
| Minimum turning radius [m] |
5.3 |
| Fuel tank volume [L] |
53 |
| Curb weight [kg] |
1262 |
| Full load mass [kg] |
1680 |
| engine |
|
| engine model |
G4FL |
| Displacement [mL] |
1497 |
| Displacement[L] |
1.5 |
| Intake form |
inhale naturally |
| Engine layout |
horizontal |
| Cylinder arrangement |
L |
| Number of cylinders [number] |
4 |
| Number of valves per cylinder [number] |
4 |
| Air Supply |
DOHC |
| Maximum power [kW] |
84.5 |
| Maximum horsepower[Ps] |
115 |
| Maximum power speed [rpm] |
6300 |
| Maximum torque [N·m] |
144 |
| Maximum torque speed [rpm] |
4500 |
| Maximum net power [kW] |
84.5 |
| fuel grade |
No. 92 |
| Fuel supply method |
Multi-point EFI |
| Cylinder head material |
Aluminum alloy |
| Cylinder material |
Aluminum alloy |
| Environmental protection standards |
National VI |
| gearbox |
|
| Gearbox description |
CVT continuously variable transmission (simulated 8-speed) |
| Gearbox type |
Continuously variable transmission (CVT) |
| Number of gears |
8 |
| chassis steering |
|
| Drive form |
Front wheel drive |
| four-wheel drive |
- |
| Center differential structure |
- |
| Front suspension type |
MacPherson independent suspension |
| rear suspension type |
torsion beam non-independent suspension |
| Assist type |
electric assist |
| Adjustable suspension features |
- |
| Adjustable suspension types |
- |
| Body structure |
Load-bearing |
| limited slip differential |
- |
| differential lock |
- |
| wheel brake |
|
| Front brake type |
●Ventilated disc type |
| rear brake type |
●Solid disc type |
| Parking brake type |
Electronic parking |
| Front tire specifications |
●205/55 R16 |
| Rear tire specifications |
●205/55 R16 |
| Spare tire |
●Not full size |
| Spare tire placement |
●In the trunk |
