| Basic Information |

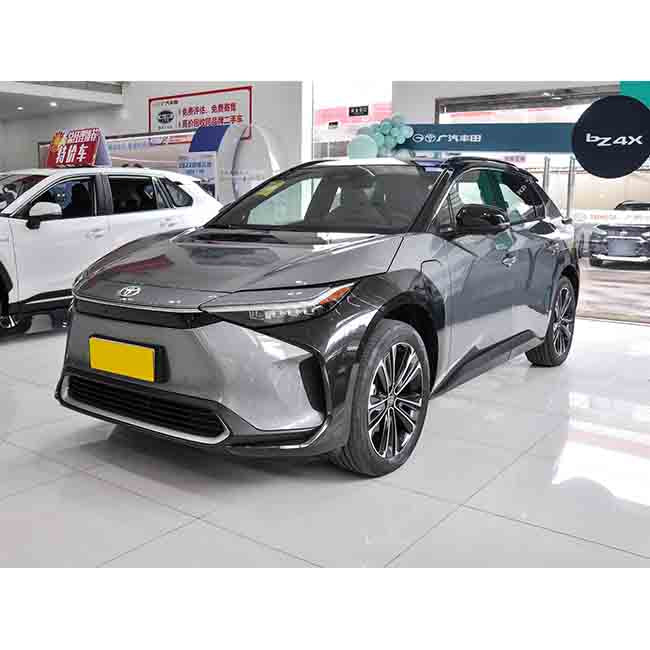

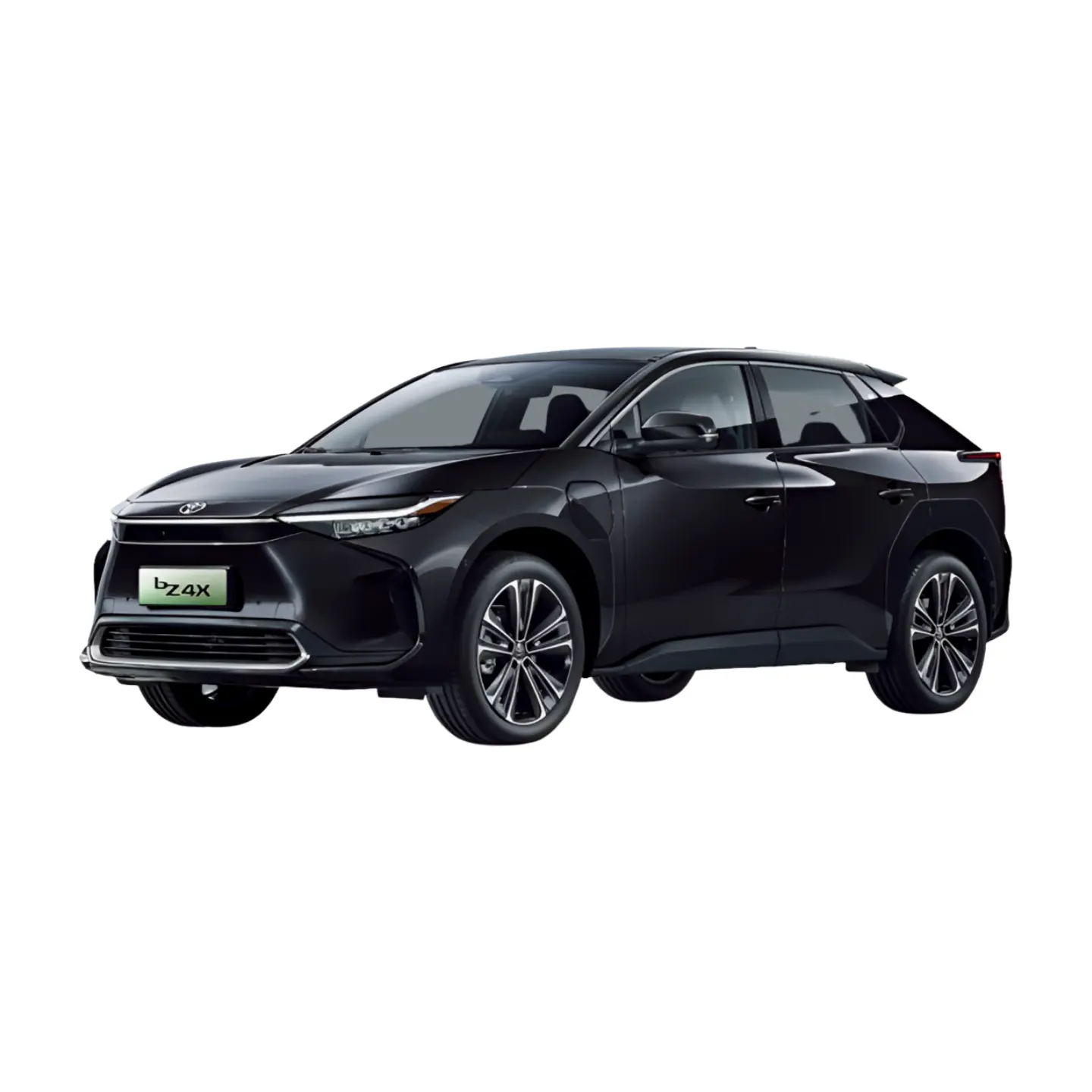

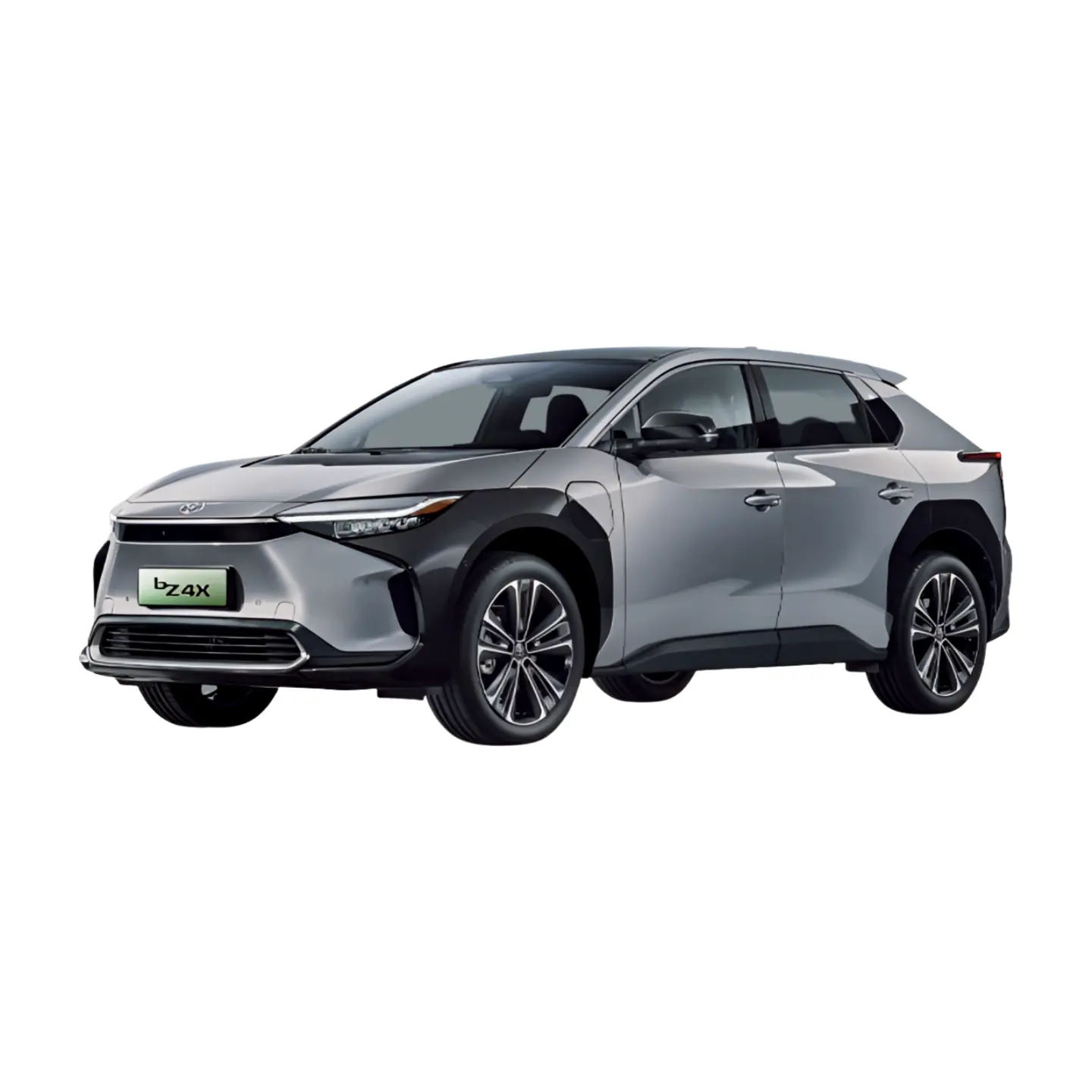

GAC TOYOTA BZ4X 2025 615km FWD Max Edition |
| Manufacturer |
GAC Toyota New Energy |
| level |
Mid-size SUV |
| Energy Type |
Pure Electric |
| Availability |
2024-11-15 |
| CLTC pure electric cruising range [km] |
615 |
| Fast charging time [min] |
33 |
| Fast charge capacity[%] |
30-80 |
| Slow charging time [hours] |
10 |
| Slow charging capacity[%] |
30-100 |
| Motor [Ps] |
204 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4690*1860*1650 |
| Body structure |
5-door 5-seater SUV |
| Maximum speed [km/h] |
160 |
| Power consumption per 100 km [kWhkm] |
11.6 |
| Vehicle warranty |
3 years or 100,000 km |
| Appearance Color |
|
| Interior Color |
|
| Body |
|
| Length [mm] |
4690 |
| Width [mm] |
1860 |
| Height [mm] |
1650 |
| Wheelbase [mm] |
2850 |
| Front track [mm] |
1600 |
| Rear track [mm] |
1610 |
| Door opening method |
Swing door |
| Number of doors |
5 |
| Seating capacity |
5 |
| Approach angle [°] |
15 |
| Departure angle [°] |
twenty three |
| Minimum turning radius [m] |
5.6 |
| Drag coefficient [Cd] |
0.28 |
| Official trunk volume [L] |
452 |
| Measured trunk volume [L] |
601-1198 |
| Curb weight[kg] |
1905 |
| Full load mass [kg] |
2465 |
| Electric Motor |
|
| Motor Brand |
Love Letter |
| Motor Model |
1XM |
| Number of drive motors |
Single motor |
| Motor layout |
Pre |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
150 |
| Total motor horsepower [Ps] |
204 |
| Total torque of the motor [N·m] |
266 |
| Maximum power of front motor [kW] |
150 |
| Maximum torque of front motor [N·m] |
266 |
| Maximum power of rear motor [kW] |
- |
| Maximum torque of rear motor [N·m] |
- |
| Battery/Energy Recharge |
|
| Battery Type |
Ternary lithium battery |
| Battery brand |
CATL |
| Battery Temperature Management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
615 |
| Battery capacity [kWh] |
66.7 |
| Battery energy density [Wh/kg] |
155.48 |
| Power consumption per 100 km [kWhkm] |
11.6 |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
●Right front side of the vehicle |
| Fast charging port location |
●Left front side of the vehicle |
| High voltage fast charging platform |
●400V platform |
| Fast charging time[min] |
33 |
| Fast charging time[h] |
0.55 |
| Fast charge capacity[%] |
30-80 |
| Slow charging time [h] |
10 |
| Slow charging capacity[%] |
30-100 |
| Vehicle battery replacement |
- |
| Home charging station |
- |
| On-board charging gun |
- |
| External discharge function |
- |
| VTOL external discharge power |
- |
| Battery Pack Warranty |
10 years or 200,000 km |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Front front drive |
| Four-wheel drive |
- |
| Central differential structure |
- |
| Front suspension type |
McPherson independent suspension |
| Rear suspension type |
Multi-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
- |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
●Ventilated disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
235/60 R18 |
| Rear tire specifications |
235/60 R18 |
| Spare tire |
●Tire repair tool only |
