| Basic Information |

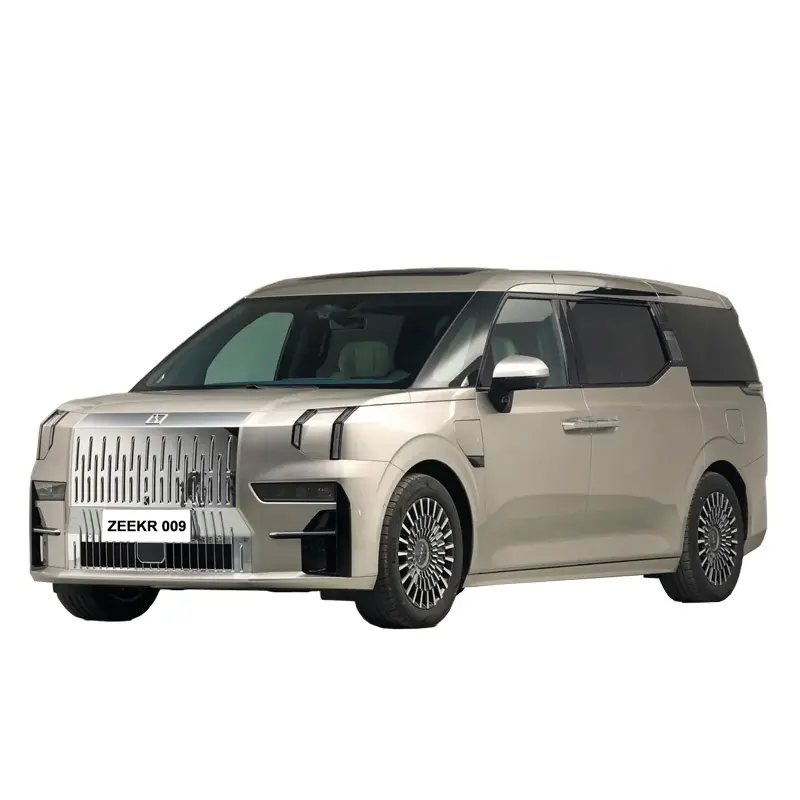

ZEEKR 009 2024 850km 4WD Aisle Edition 7 Seaters |
| Manufacturer |
Zeekr |
| level |
Large MPV |
| Energy Type |
Pure Electric |
| Availability |
2024-07-19 |
| CLTC pure electric cruising range [km] |
850 |
| Fast charging time [minutes] |
30 |
| Fast charge capacity[%] |
10-80 |
| Motor [Ps] |
612 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
5217*2024*1812 |
| Body structure |
5-door 7-seater MPV |
| Maximum speed [km/h] |
210 |
| Official 0-100km/h acceleration [s] |
4.5 |
| Power consumption per 100 km [kWhkm] |
17.8 |
| Vehicle warranty |
4 years or 100,000 km |
| First Owner Warranty Policy |
6 years or 150,000 km |
| Appearance Color |
|
| Interior Color |
|
| Body |
|
| Length [mm] |
5217 |
| Width [mm] |
2024 |
| Height [mm] |
1812 |
| Wheelbase [mm] |
3205 |
| Front wheel track[mm] |
1702 |
| Rear track [mm] |
1714 |
| Door opening method |
Hinged door + sliding door |
| Number of doors |
5 |
| Seating capacity |
7 |
| Approach angle [°] |
14 |
| Departure angle [°] |
18 |
| Minimum ground clearance when fully loaded [mm] |
142 |
| Minimum turning radius [m] |
- |
| Drag coefficient [Cd] |
0.27 |
| Official trunk volume [L] |
574-2963 |
| Curb weight[kg] |
2906 |
| Full load mass [kg] |
3477 |
| Electric Motor |
|
| Motor brand |
Quzhou Jidian |
| Motor Model |
Front YS220XYA01/Rear TZ220XYA02 |
| Number of drive motors |
Dual motors |
| Motor layout |
Front + rear |
| Motor Type |
Front induction asynchronous/rear permanent magnet synchronous |
| Total motor power [kW] |
450 |
| Total motor horsepower [Ps] |
612 |
| Total torque of the motor [N·m] |
693 |
| Maximum power of front motor [kW] |
200 |
| Maximum torque of front motor [N·m] |
320 |
| Maximum power of rear motor [kW] |
250 |
| Maximum torque of rear motor [N·m] |
373 |
| Battery/Energy Recharge |
|
| Battery Type |
Ternary lithium battery |
| Battery brand |
CATL |
| Battery Temperature Management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
850 |
| Battery capacity [kWh] |
140 |
| Power consumption per 100 km [kWhkm] |
17.8 |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
●Left front side of the vehicle |
| Fast charging port location |
● Left rear side of the vehicle |
| High voltage fast charging platform |
●400V platform |
| Fast charging power [kW] |
- |
| Fast charging time[min] |
30 |
| Fast charging time[h] |
0.5 |
| Fast charge capacity[%] |
10-80 |
| Vehicle battery replacement |
- |
| Home charging station |
○ |
| On-board charging gun |
- |
| External discharge function |
● |
| VTOL external discharge power |
6kW |
| Battery Pack Warranty |
8 years or 200,000 km |
| First Owner Battery Pack Warranty |
Unlimited years/unlimited mileage (liability exemption clauses are subject to official regulations) |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Dual motor four-wheel drive |
| Four-wheel drive |
Electric four-wheel drive |
| Center differential structure |
- |
| Front suspension type |
Double wishbone independent suspension |
| Rear suspension type |
Multi-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
●Height adjustment ●Softness and hardness adjustment |
| Adjustable suspension type |
Air suspension |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
●Ventilated disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
●255/50 R19○265/45 R20 15000 yuan |
| Rear tire specifications |
●255/50 R19○265/45 R20 15000 yuan |
| Spare tire |
No spare tire |
