| Basic Information |

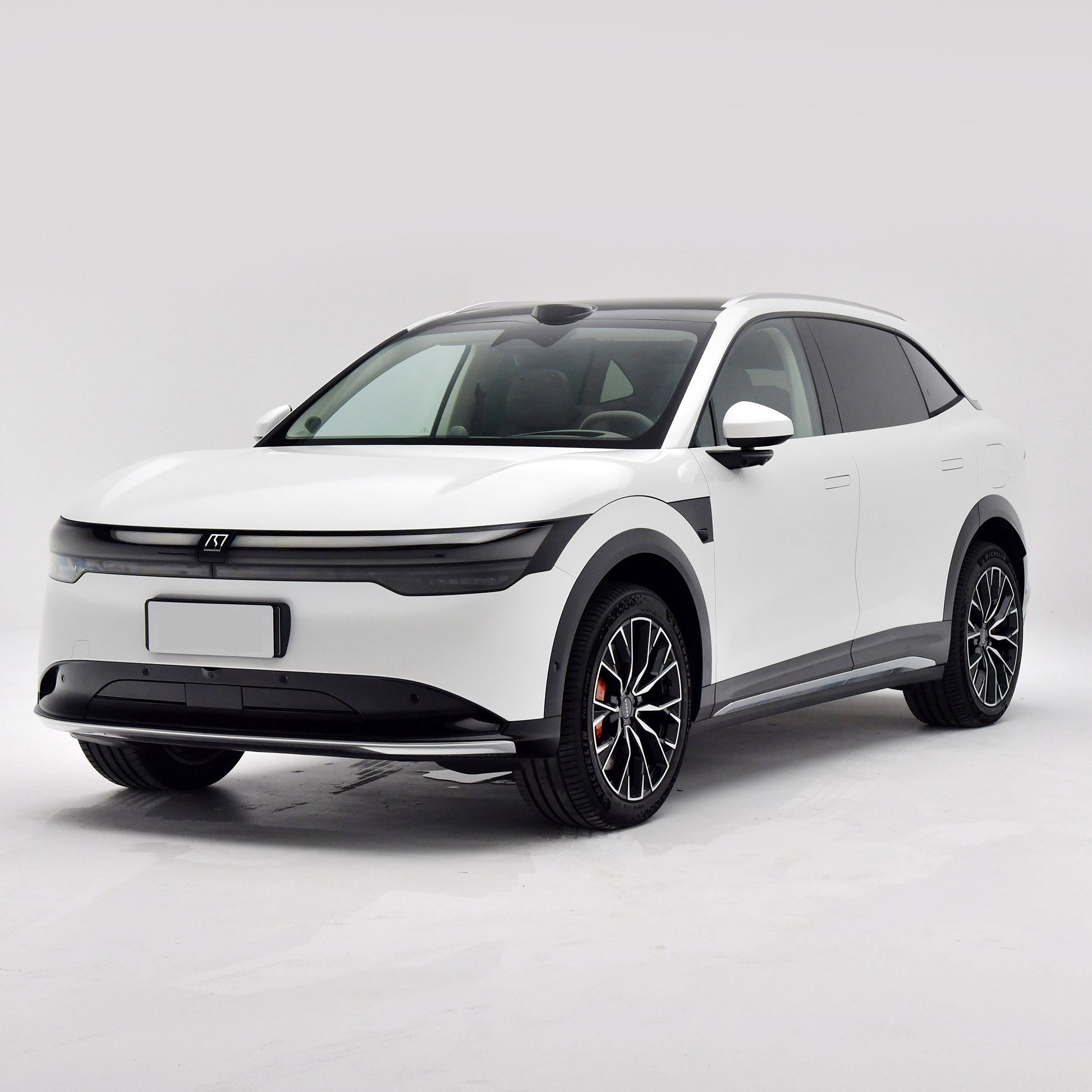

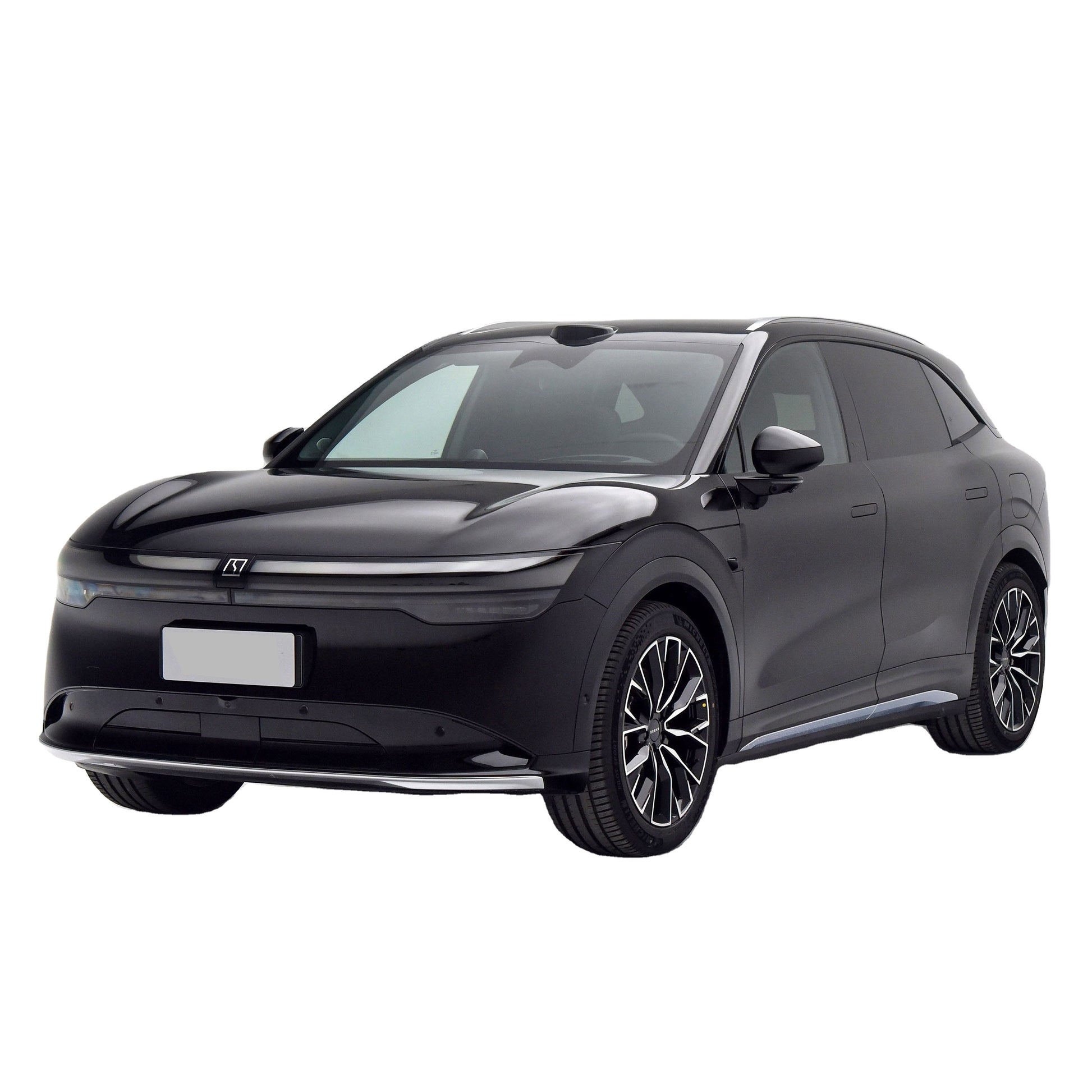

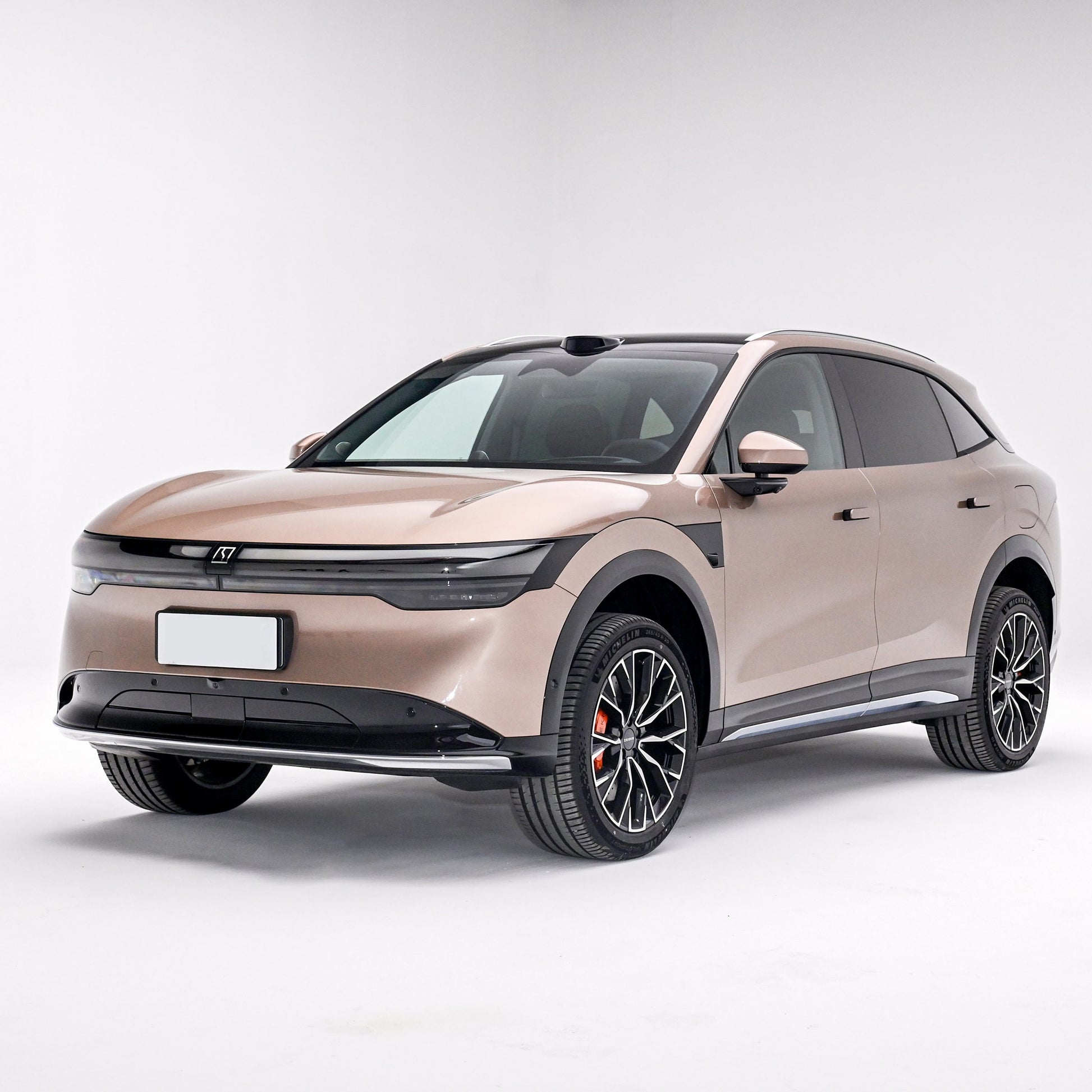

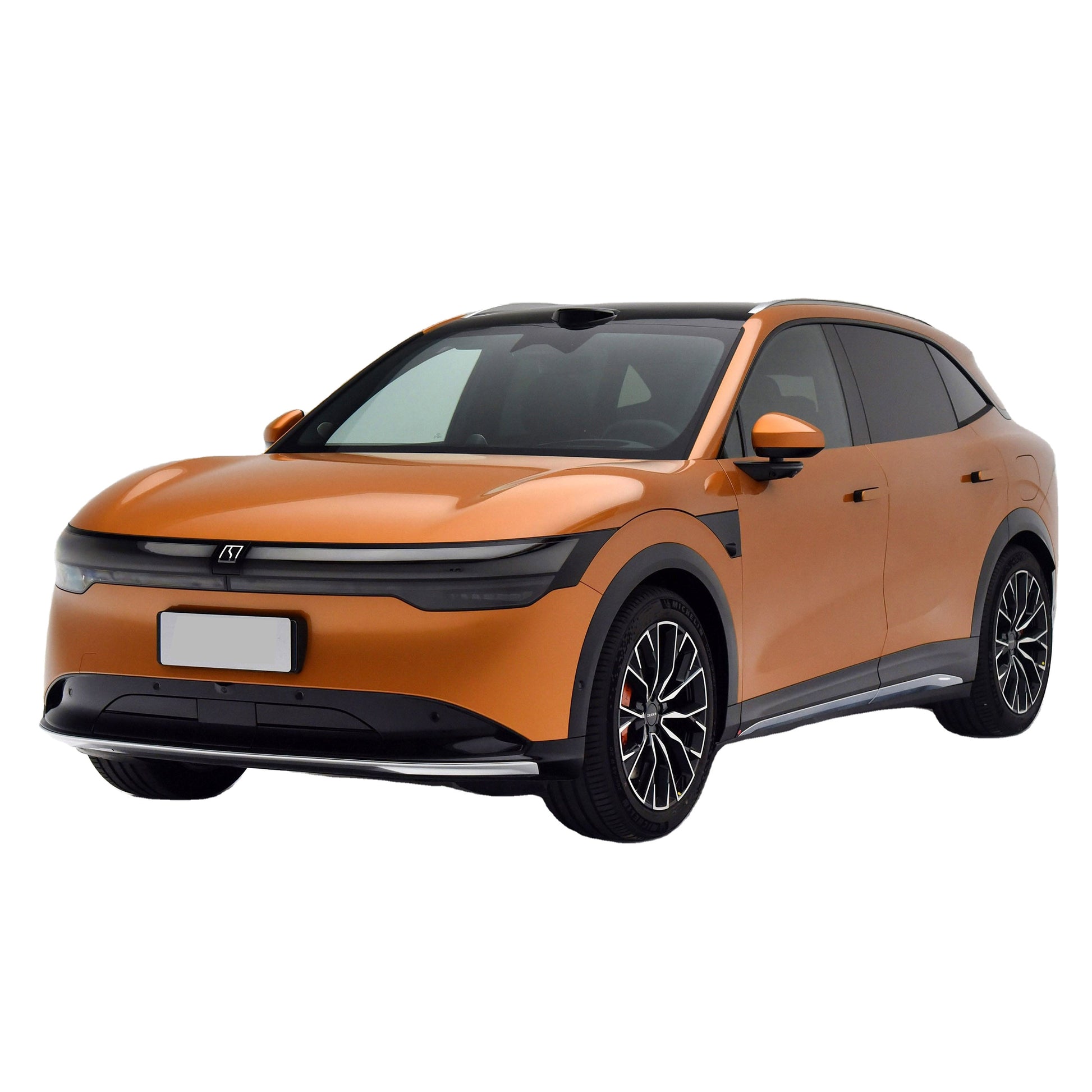

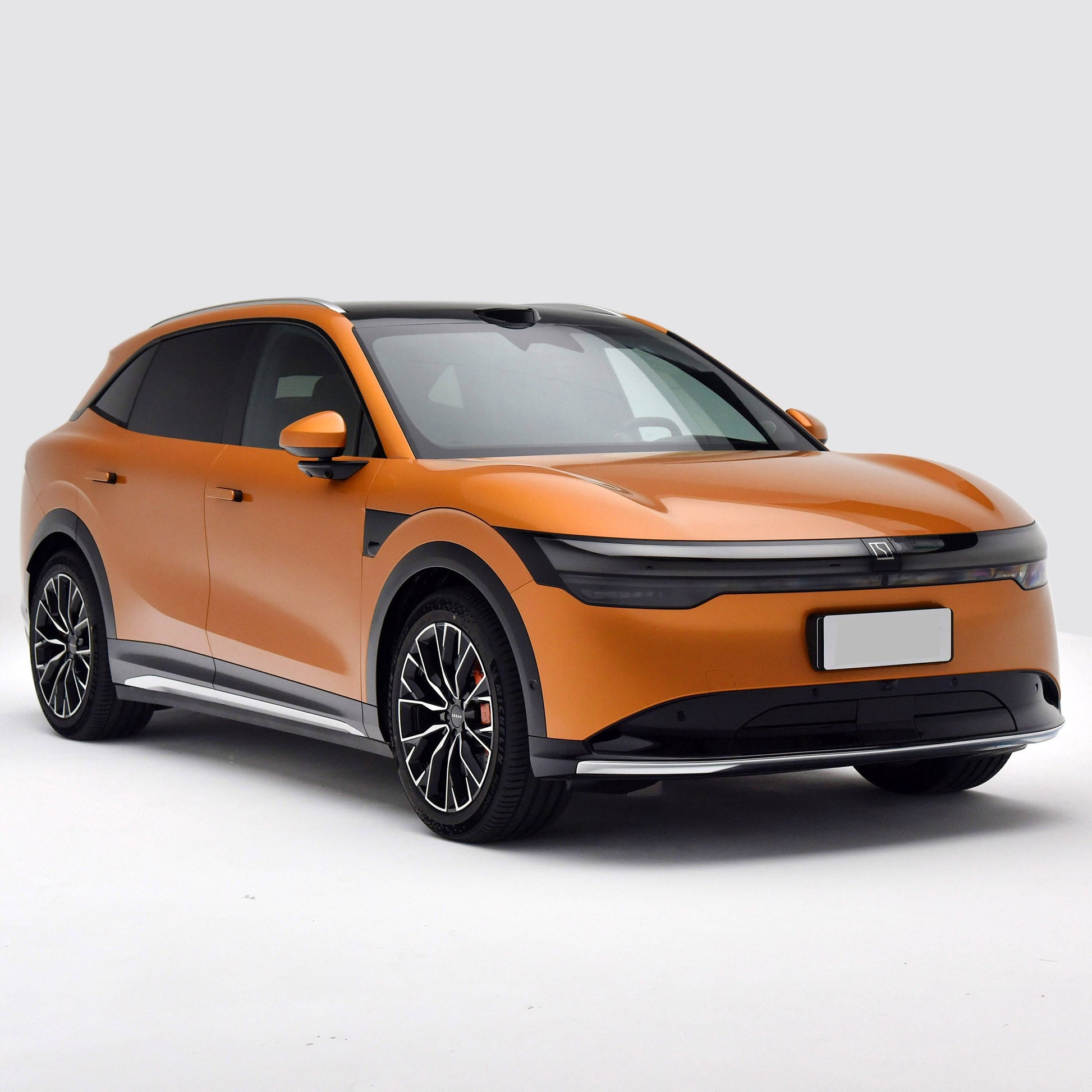

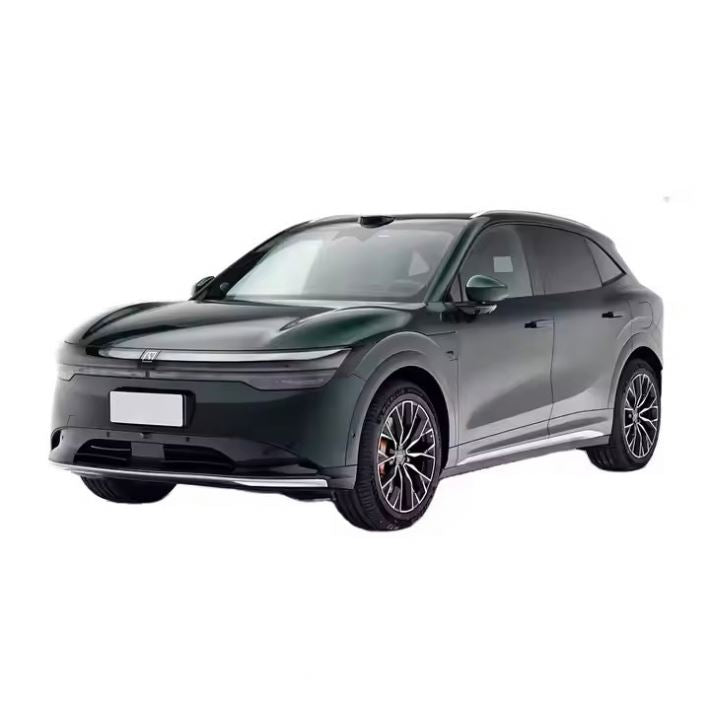

ZEEKR 7X 2025 780km rear-wheel drive long-range intelligent driving version |
| Manufacturer |
Zeekr |
| level |
Mid-size SUV |
| Energy Type |
Pure Electric |
| Availability |
2024-09-20 |
| CLTC pure electric range [km] |
780 |
| Fast charging time[h] |
0.25 |
| Fast charge capacity[%] |
10-80 |
| Motor [Ps] |
422 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4825*1930*1666 |
| Body structure |
5-door 5-seater SUV |
| Maximum speed [km/h] |
210 |
| Official 0-100km/h acceleration [s] |
5.7 |
| Vehicle warranty |
4 years or 100,000 km |
| First Owner Warranty Policy |
6 years or 150,000 km |
| Appearance Color |
|
| Interior Color |
|
| Body |
|
| Length [mm] |
4825 |
| Width [mm] |
1930 |
| Height [mm] |
1666 |
| Wheelbase [mm] |
2925 |
| Front track [mm] |
1649 |
| Rear track [mm] |
1654 |
| Door opening method |
Swing door |
| Number of doors |
5 |

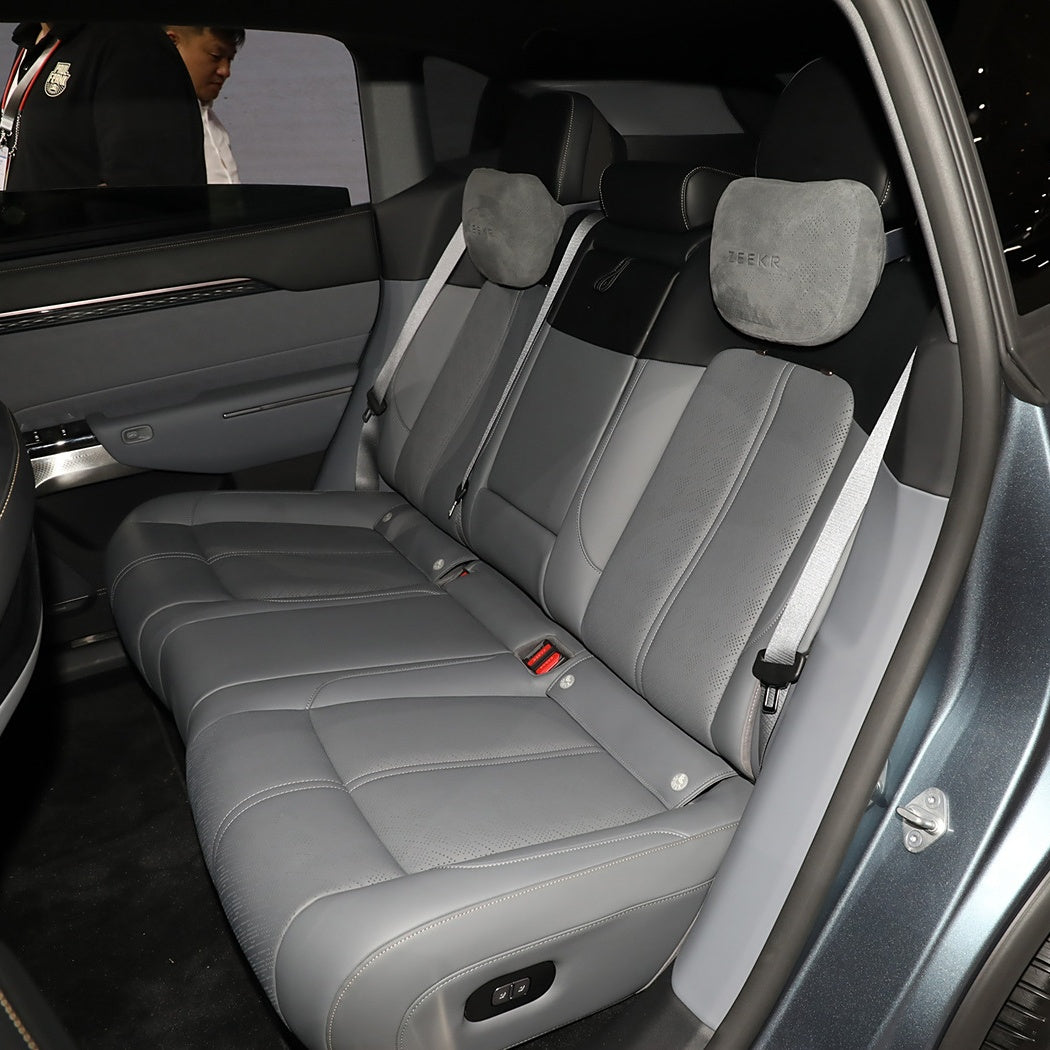

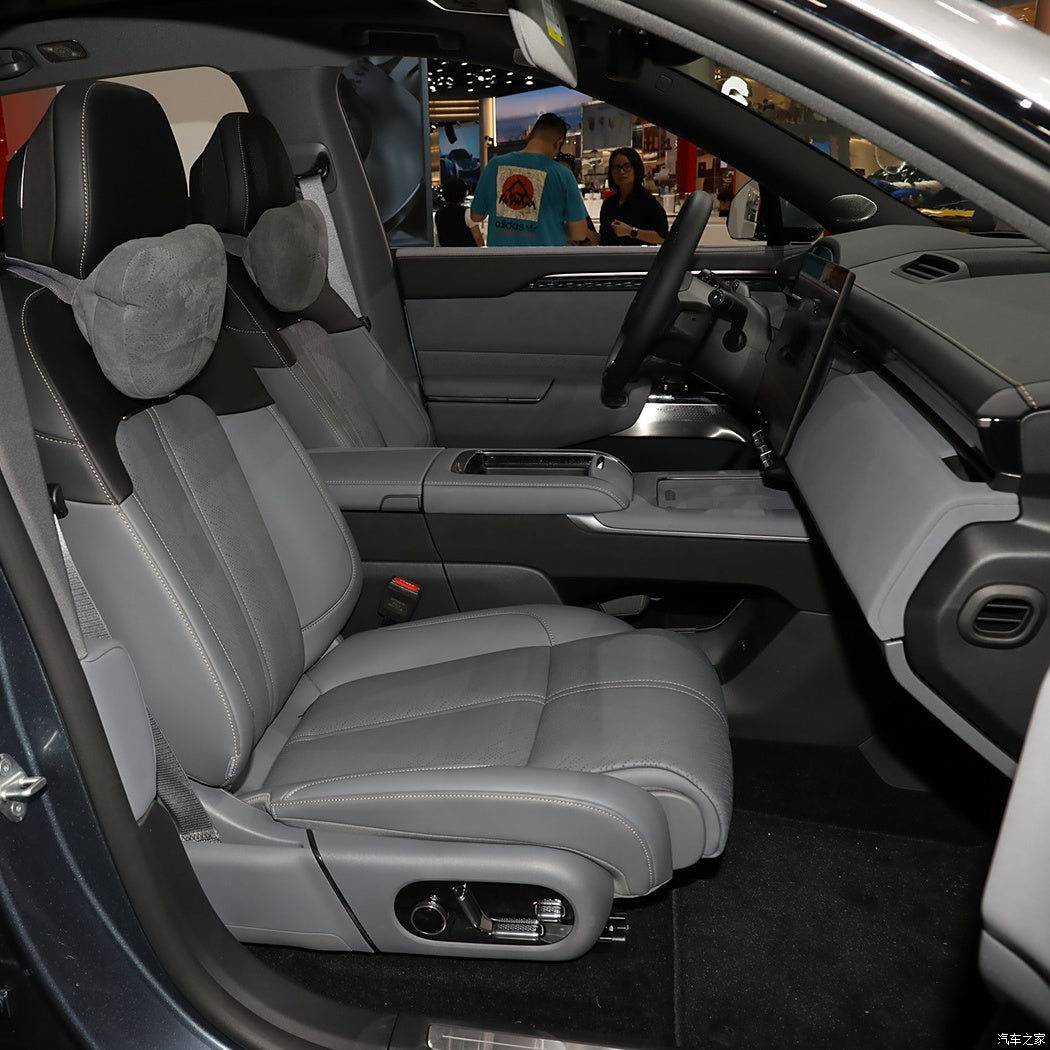

| Seating capacity |
5 |
| Approach angle [°] |
19 |
| Departure angle [°] |
19 |
| Minimum ground clearance when fully loaded [mm] |
197 |
| Minimum ground clearance without load [mm] |
- |
| Drag coefficient [Cd] |
0.247 |
| Official front trunk volume [L] |
62 |
| Official trunk volume [L] |
616-1978 |
| Curb weight[kg] |
2320 |
| Full load mass [kg] |
2810 |
| Electric Motor |
|
| Motor brand |
Quzhou Jidian |
| Motor Model |
TZ235XYC01 |
| Number of drive motors |
Single motor |
| Motor layout |
Post |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
310 |
| Total motor horsepower [Ps] |
422 |
| Total torque of the motor [N·m] |
440 |
| Maximum power of front motor [kW] |
- |
| Maximum torque of front motor [N·m] |
- |
| Maximum power of rear motor [kW] |
310 |
| Maximum torque of rear motor [N·m] |
440 |
| Battery/Energy Recharge |
|
| Battery Type |
Ternary lithium battery |
| Battery brand |
Times Geely |
| Battery Temperature Management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
780 |
| Battery capacity [kWh] |
100 |
| Power consumption per 100 km [kWhkm] |
14.2 |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
● Left rear side of the vehicle |
| Fast charging port location |
● Left rear side of the vehicle |
| High voltage fast charging platform |
●800V platform |
| Fast charging time[min] |
15 |
| Fast charging time[h] |
0.25 |
| Fast charge capacity[%] |
10-80 |
| Vehicle battery replacement |
- |
| Home charging station |
○ |
| On-board charging gun |
- |
| External discharge function |
● |
| VTOL external discharge power |
3.3kW |
| Battery Pack Warranty |
8 years or 200,000 km |
| First Owner Battery Pack Warranty |
No age or mileage limit for the first owner (liability exemption clause is subject to official regulations) |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Rear-engine, rear-wheel drive |
| Four-wheel drive |
- |
| Central differential structure |
- |
| Front suspension type |
Double wishbone independent suspension |
| Rear suspension type |
Five-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
○Height adjustment ○Soft and hard adjustment |
| Adjustable suspension type |
○ Air suspension |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
●Ventilated disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
255/50 R19 265/45 R20 |
| Rear tire specifications |
255/50 R19 265/45 R20 |
| Spare tire |
No spare tire |
