| Basic Information |

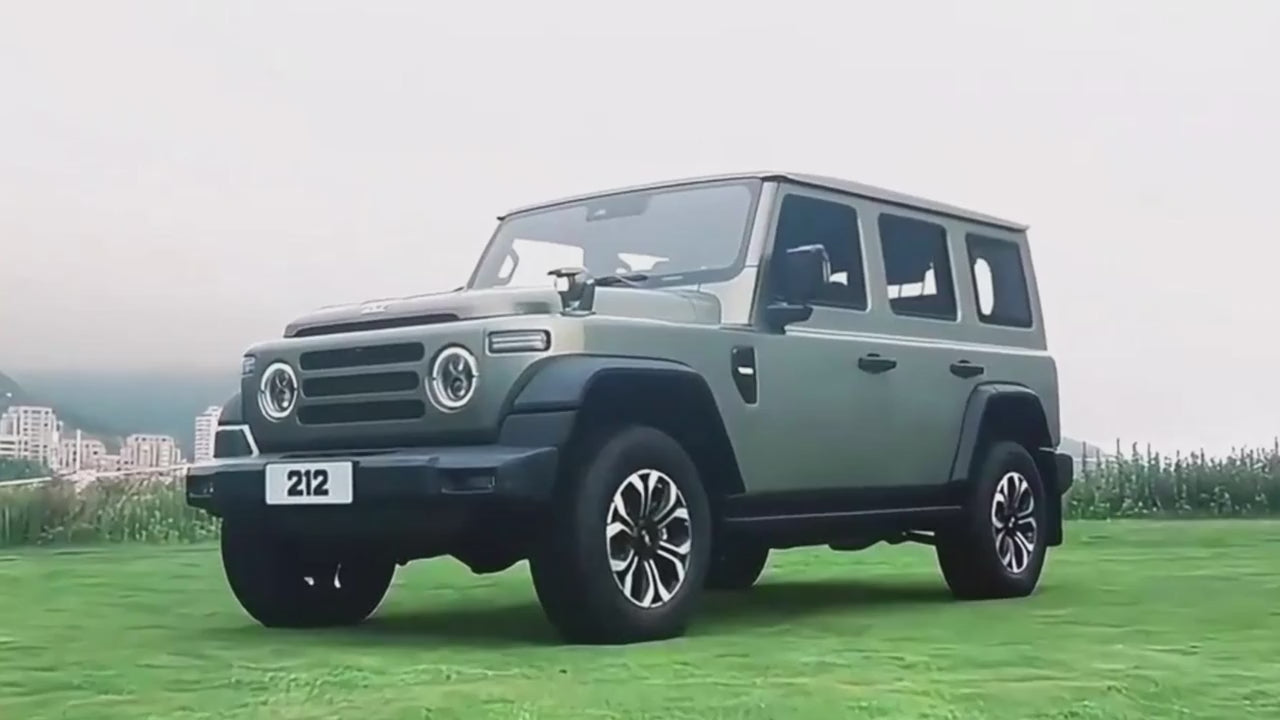

212 T01 2024 2.0T Explorer |
| Manufacturer |
212 off-road vehicle |
| level |
Compact SUV |
| Energy Type |
gasoline |
| Environmental standards |
National VI |
| Availability |
2024-08-22 |
| engine |
2.0T 252HP L4 |
| Maximum power/maximum torque |
185kWN·m |
| Gearbox |
8-speed manual transmission (AT) |
| Length*width*height[mm] |
4705*1895*1936 |
| Body structure |
5-door 5-seater SUV |
| Maximum speed [km/h] |
170 |
| WLTC comprehensive fuel consumption [Lkm] |
10.9 |
| Vehicle warranty |
3 years or 60,000 km |
| First Owner Warranty Policy |
5 years or 150,000 km |
| Appearance Color |
|
| Interior Color |
|
| Body |
|
| Length [mm] |
4705 |
| Width [mm] |
1895 |
| Height [mm] |
1936 |
| Wheelbase[mm] |
2860 |
| Front track [mm] |
1598 |
| Rear track [mm] |
1598 |
| Door opening method |
Swing door |
| Number of doors |
5 |
| Seating capacity |
5 |
| Approach angle [°] |
40 |
| Departure angle [°] |
36 |
| Pass angle [°] |
23.6 |
| Maximum climbing grade [%] |
100 |
| Minimum ground clearance when fully loaded [mm] |
235 |
| Fuel tank capacity [L] |
80 |
| Curb weight[kg] |
2150 |
| Full load mass [kg] |
2640 |
| Traction mass [kg] |
2500 |
| engine |
|
| Engine Model |
N20TG |
| Displacement [mL] |
1998 |
| Displacement [L] |
2.0 |
| Air intake form |
Turbocharger |
| Engine layout |
Vertical |
| Cylinder arrangement |
L |
| Number of cylinders |
4 |
| Number of valves per cylinder |
4 |
| Valve mechanism |
DOHC |
| Maximum power [kW] |
185 |
| Maximum horsepower [Ps] |
252 |
| Maximum torque [N·m] |
410 |
| Maximum torque speed [rpm] |
1900-3300 |
| Maximum net power [kW] |
175 |
| Fuel grade |
No. 92 |
| Oil supply method |
Direct Injection |
| Cylinder head material |
Aluminum Alloy |
| Cylinder material |
cast iron |
| Environmental standards |
National VI |
| Gearbox |
|
| Gearbox Description |
8-speed manual transmission |
| Gearbox Type |
Automatic transmission (AT) |
| Number of gears |
8 |
| Chassis steering |
|
| Drive type |
Front four-wheel drive |
| Four-wheel drive |
Part-time four-wheel drive |
| Center differential structure |
- |
| Front suspension type |
Five-link integral bridge non-independent suspension |
| Rear suspension type |
Five-link integral bridge non-independent suspension |
| Power type |
Electronic hydraulic power steering |
| Adjustable suspension features |
○Soft and hard adjustment |
| Adjustable suspension type |
- |
| Vehicle structure |
Non-load bearing |
| Limited slip differential |
- |
| Differential lock |
●Central●Rear axle○Front axle |
| Maximum wading depth [mm] |
850 |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
●Ventilated disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
265/70 R17 |
| Rear tire specifications |
265/70 R17 |
| Spare tire |
Full size |
| Spare tire placement |
Backpack |
