| Basic Information |

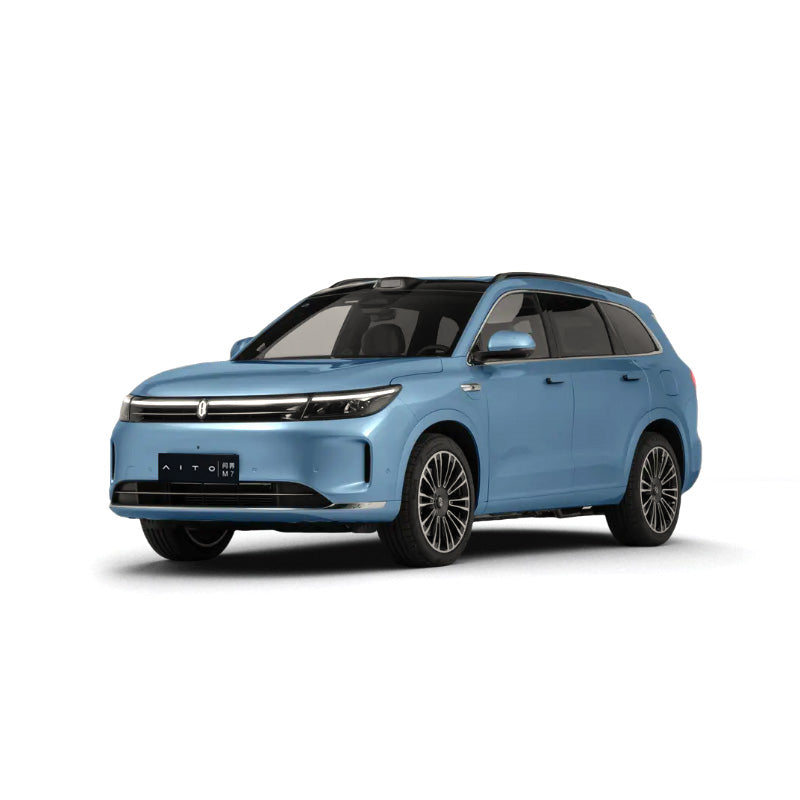

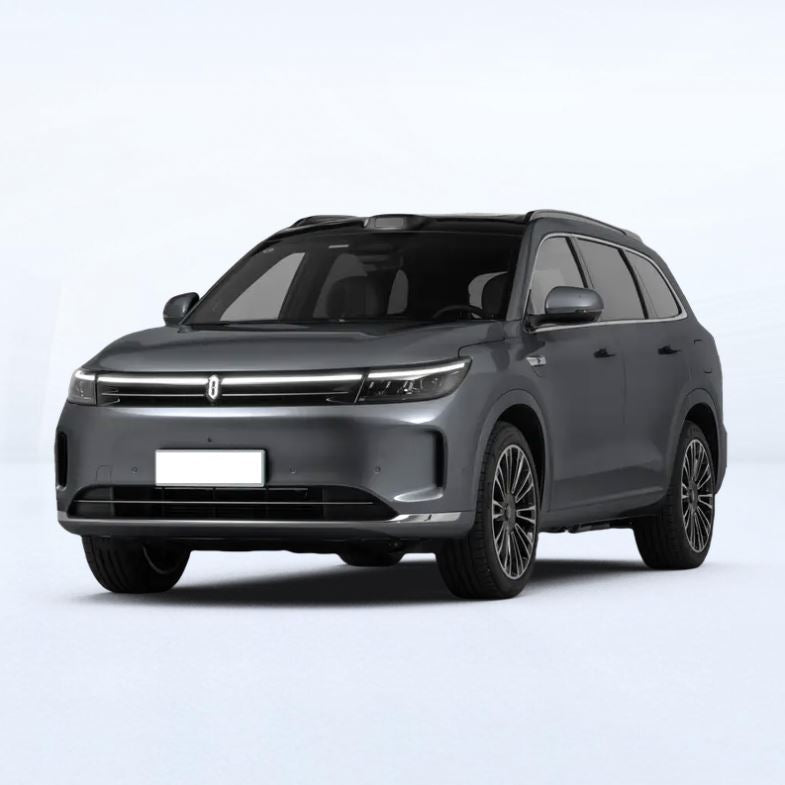

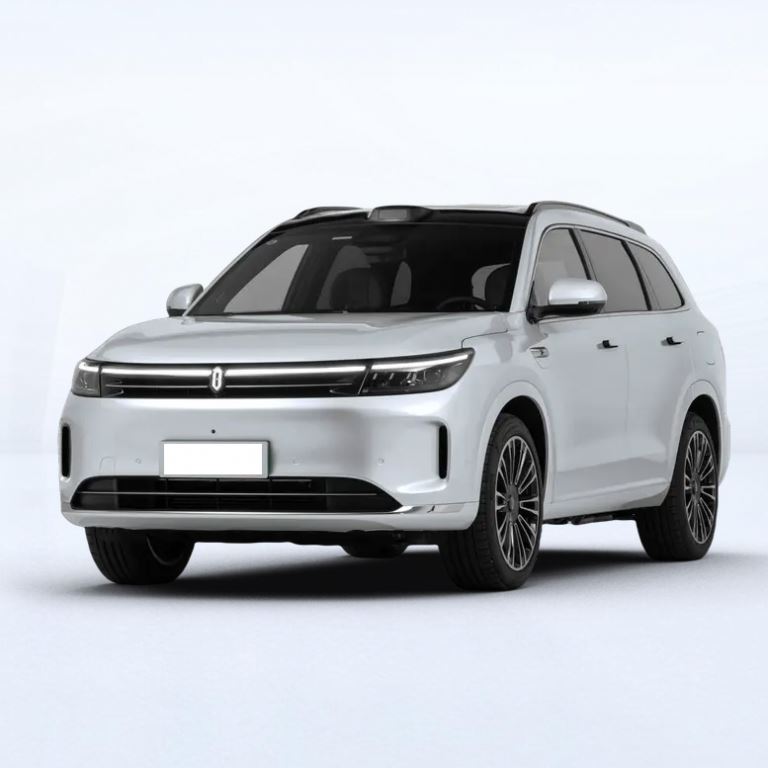

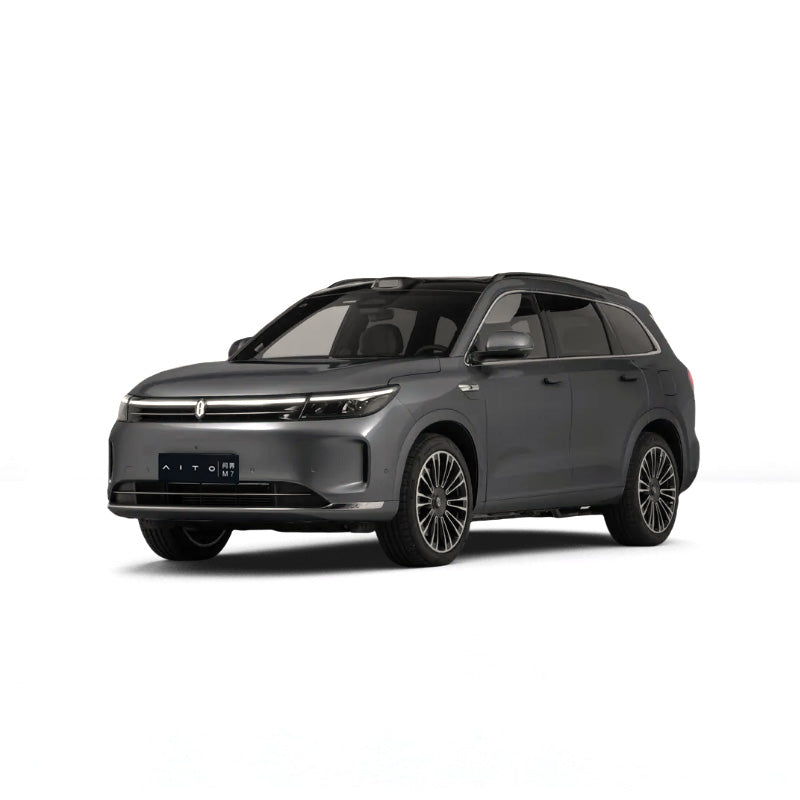

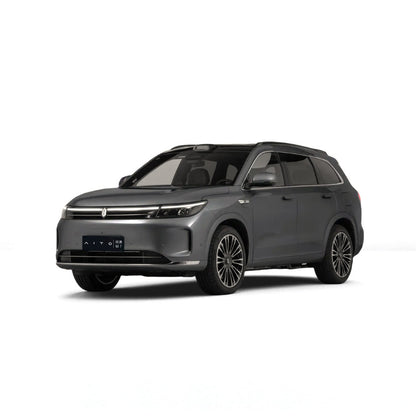

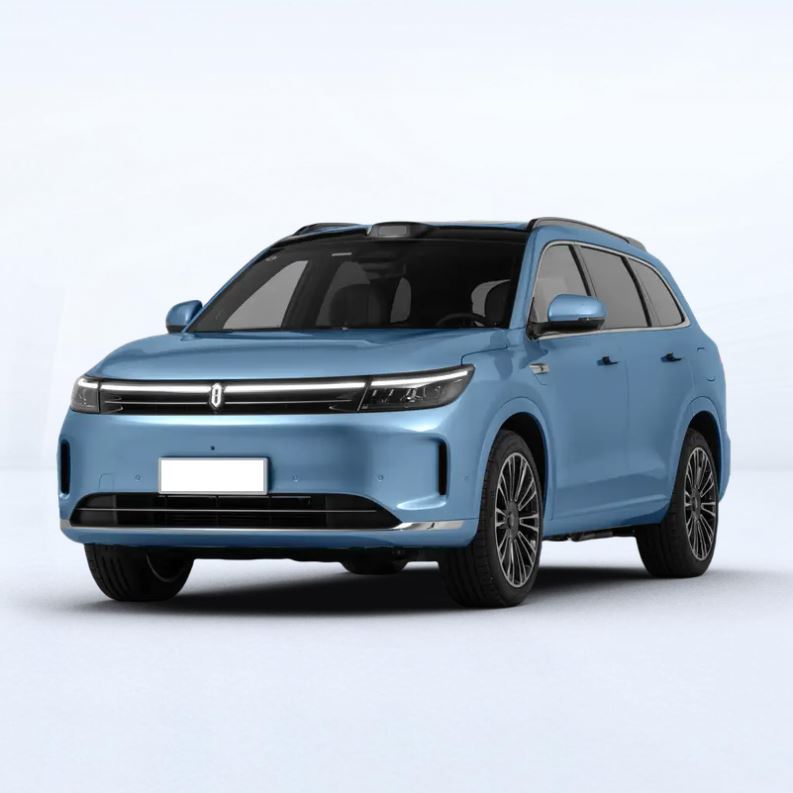

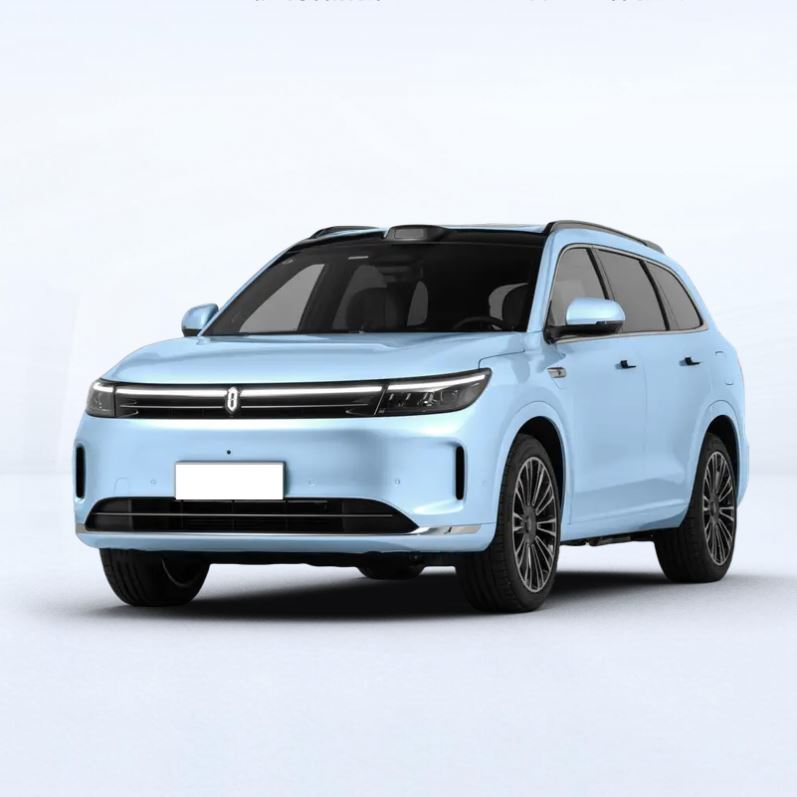

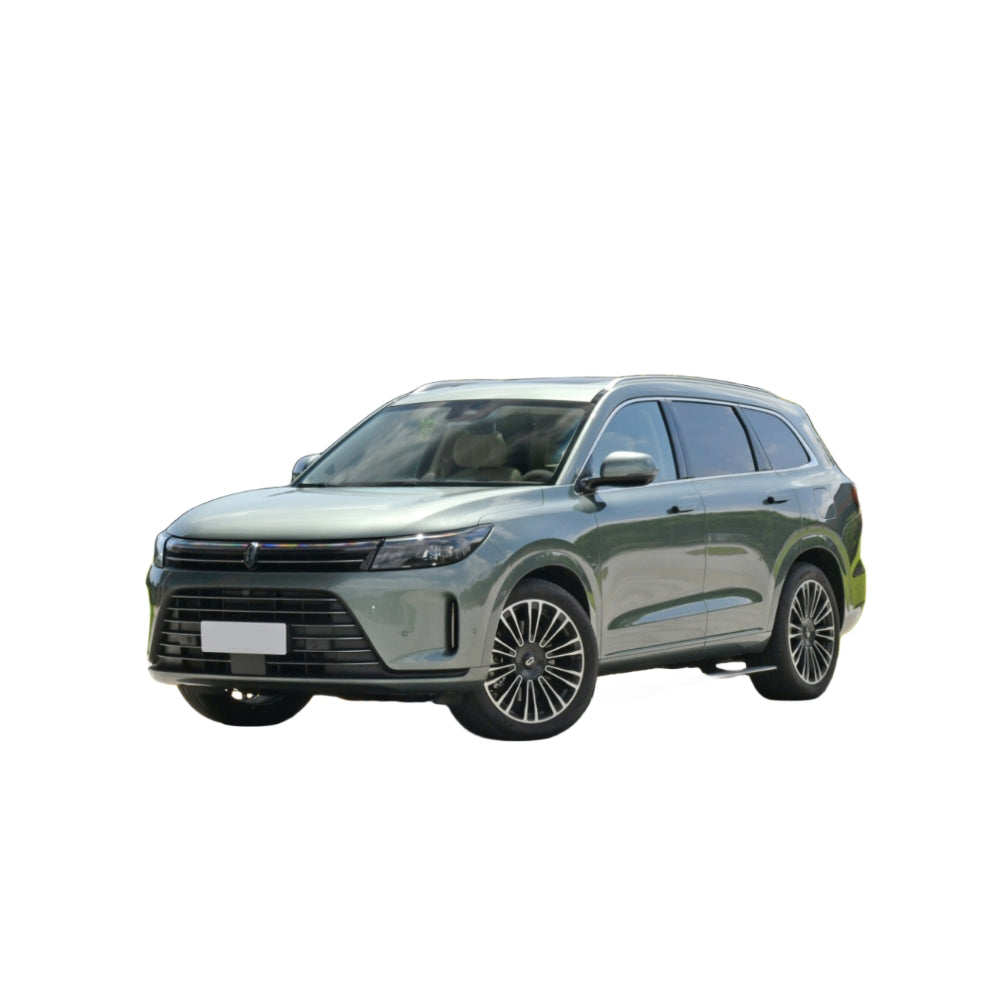

AITO M7 2024 1.5T 210km 4WD Ultra Smart Driving Edition 5 Seaters |
| Manufacturer |
AITOAITO |
| level |
Medium and large SUV |
| Energy Type |
Extended range pure electric |
| Environmental standards |
National VI |
| Availability |
2024-05-31 |
| CLTC pure electric range [km] |
210 |
| WLTC pure electric range [km] |
175 |
| Fast charging time[h] |
0.5 |
| Fast charge capacity[%] |
30-80 |
| Slow charging time [h] |
5 |
| Slow charging capacity[%] |
20-90 |
| engine |
1.5T152HPL4 |
| Maximum power/maximum torque |
112kWN·m |
| Motor [Ps] |
449 |
| Gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
5020*1945*1760 |
| Body structure |
5-door 5-seater SUV |
| Maximum speed [km/h] |
190 |
| Official 0-100km/h acceleration [s] |
4.8 |
| WLTC comprehensive fuel consumption [Lkm] |
1.06 |
| WLTC low-power fuel consumption [Lkm] |
7.4 |
| Vehicle warranty |
4 years or 100,000 km |
| Appearance Color |
|
| Interior Color |
|
| Body |
|
| Length [mm] |
5020 |
| Width [mm] |
1945 |
| Height [mm] |
1760 |
| Wheelbase[mm] |
2820 |
| Front track [mm] |
1635 |
| Rear track [mm] |
1650 |
| Door opening method |
Swing door |
| Number of doors |
5 |
| Seating capacity |
5 |
| Approach angle [°] |
19 |
| Departure angle [°] |
twenty two |
| Drag coefficient [Cd] |
0.298 |
| Fuel tank capacity [L] |
60 |
| Official trunk volume [L] |
686-1619 |
| Curb weight[kg] |
2460 |
| Full load mass [kg] |
2910 |
| engine |
|
| Engine Model |
Range Extender H15RT |
| Displacement [mL] |
1499 |
| Displacement [L] |
1.5 |
| Air intake form |
Turbocharger |
| Engine layout |
Sideways |
| Cylinder arrangement |
L |
| Number of cylinders |
4 |
| Number of valves per cylinder |
4 |
| Compression ratio |
15 |
| Valve mechanism |
DOHC |
| Maximum power [kW] |
112 |
| Maximum horsepower [Ps] |
152 |
| Maximum power speed [rpm] |
5400 |
| Maximum torque [N·m] |
205 |
| Maximum torque speed [rpm] |
4000 |
| Maximum net power [kW] |
110 |
| Fuel grade |
No. 95 |
| Oil supply method |
Multi-point EFI |
| Cylinder head material |
Aluminum Alloy |
| Cylinder material |
Aluminum Alloy |
| Environmental standards |
National VI |
| Electric Motor |
|
| Motor brand |
- |
| Motor Model |
Front HFE30A31/Rear CTZ196XY0P4 |
| Number of drive motors |
Dual motors |
| Motor layout |
Front + rear |
| Motor Type |
Permanent magnet synchronous |
| Total motor power [kW] |
330 |
| Total motor horsepower [Ps] |
449 |
| Total torque of the motor [N·m] |
660 |
| Maximum power of front motor [kW] |
130 |
| Maximum torque of front motor [N·m] |
300 |
| Maximum power of rear motor [kW] |
200 |
| Maximum torque of rear motor [N·m] |
360 |
| Battery/Energy Recharge |
|
| Battery Type |
Ternary lithium battery |
| Battery brand |
CATL |
| Battery Temperature Management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
210 |
| WLTC pure electric range [km] |
175 |
| CLTC comprehensive endurance [km] |
1250 |
| WLTC comprehensive range [km] |
1050 |
| Battery capacity [kWh] |
42 |
| Electricity consumption per 100 km [kWhkm] |
21.9 |
| Vehicle charging port |
●Slow charging port●Fast charging port |
| Slow charging port location |
● Left rear side of the vehicle |
| Fast charging port location |
● Left rear side of the vehicle |
| Fast charging power [kW] |
100 |
| Fast charging time[min] |
30 |
| Fast charging time[h] |
0.5 |
| Fast charge capacity[%] |
30-80 |
| Slow charging power [kW] |
- |
| Slow charging time [h] |
5 |
| Slow charging capacity[%] |
20-90 |
| Vehicle battery replacement |
- |
| Home charging station |
○ |
| On-board charging gun |
- |
| External discharge function |
● |
| VTOL external discharge power |
3.5kW |
| Battery Pack Warranty |
8 years or 160,000 km |
| Gearbox |
|
| Gearbox Description |
Electric vehicle single speed gearbox |
| Gearbox Type |
Fixed gear ratio |
| Number of gears |
1 |
| Chassis steering |
|
| Drive type |
Dual motor four-wheel drive |
| Four-wheel drive |
Electric four-wheel drive |
| Center differential structure |
- |
| Front suspension type |
McPherson independent suspension |
| Rear suspension type |
Multi-link independent suspension |
| Power type |
Electric power assist |
| Adjustable suspension features |
●Soft and hard adjustment |
| Adjustable suspension type |
- |
| Vehicle structure |
Load-bearing |
| Limited slip differential |
- |
| Differential lock |
- |
| Wheel brake |
|
| Front brake type |
●Ventilated disc type |
| Rear brake type |
●Ventilated disc type |
| Parking brake type |
Electronic parking brake |
| Front tire specifications |
255/50 R20 265/45 R21 |
| Rear tire specifications |
255/50 R20 265/45 R21 |
| Spare tire |
●Tire repair tool only |
