| Basic Information |

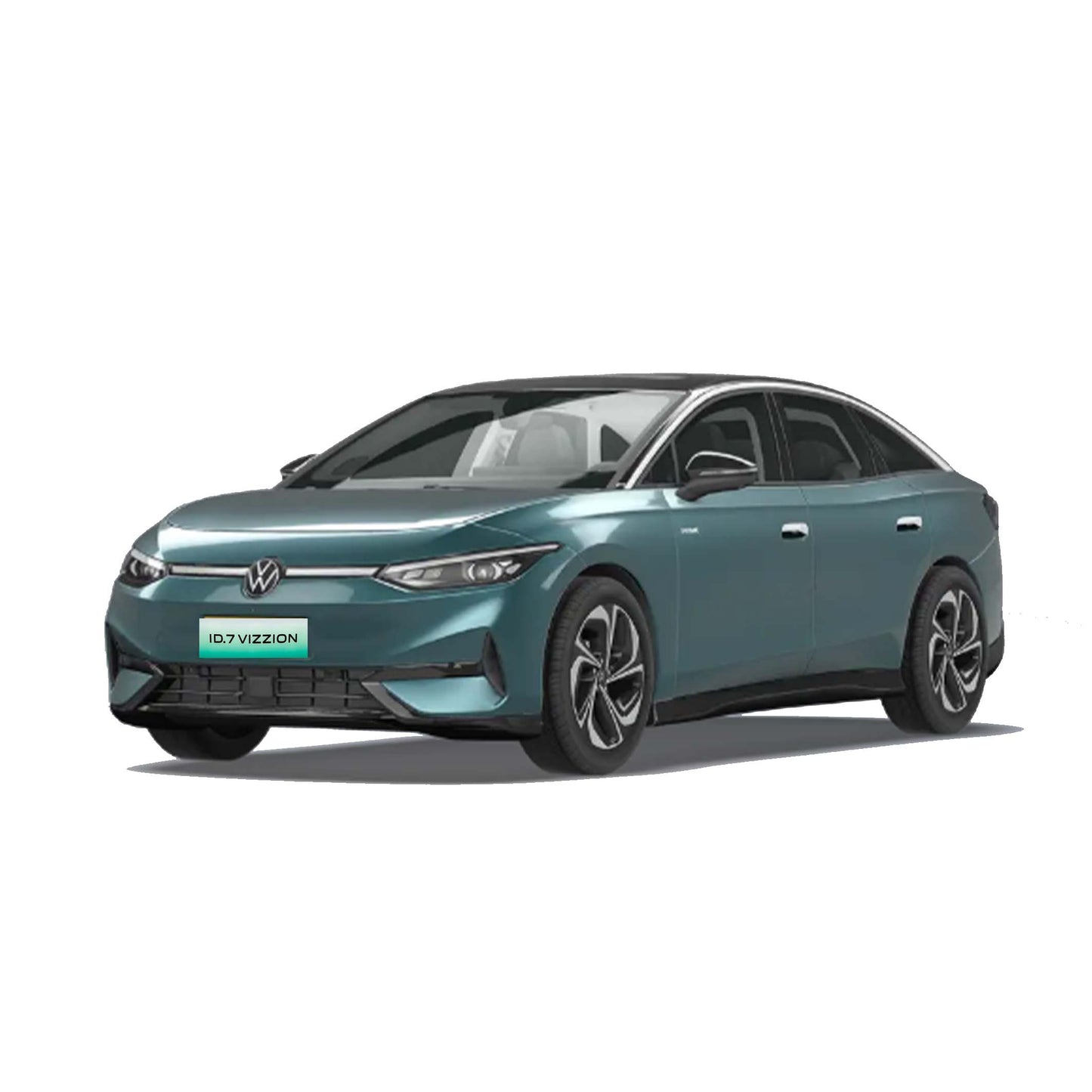

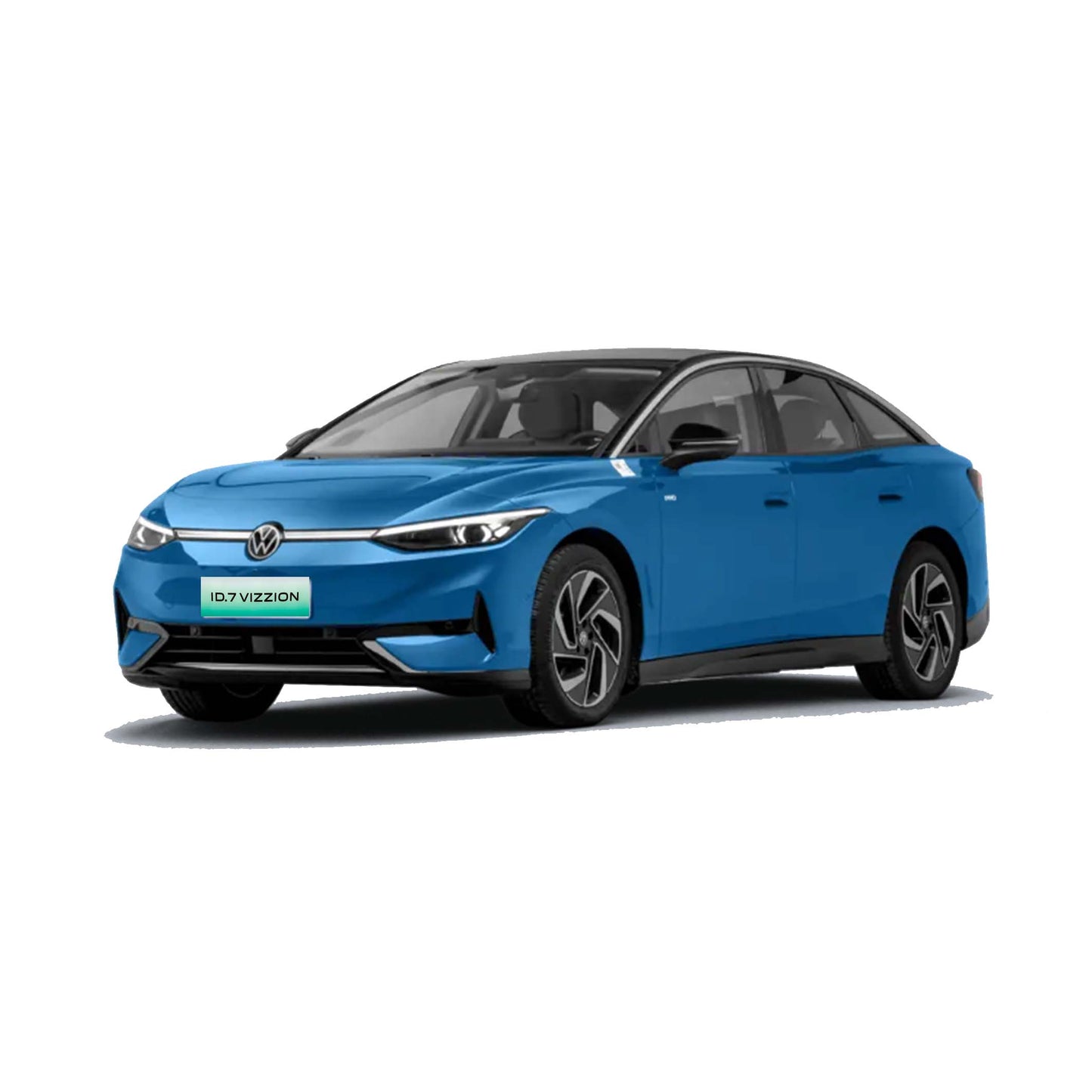

ID.7 VIZZION 2024 570km four-wheel drive PRIME |
| Manufacturer |
FAW-Volkswagen New Energy |
| level |
Medium and large cars |
| Energy type |
pure electricity |
| time to market |
2023-12-15 |
| CLTC pure electric range [km] |
570 |
| Motor[Ps] |
313 |
| gearbox |
1st gear fixed gear ratio |
| Length*width*height[mm] |
4956*1862*1537 |
| Body structure |
5-door, 5-seater hatchback |
| Maximum speed [km/h] |
155 |
| Vehicle warranty |
3 years or 100,000 kilometers |
| Exterior color |
|
| interior color |
|
| Body |
|
| Length[mm] |
4956 |
| Width[mm] |
1862 |
| Height[mm] |
1537 |
| Wheelbase [mm] |
2965 |
| Front wheelbase [mm] |
1598 |
| Rear wheelbase [mm] |
1575 |
| Car door opening method |
swing door |
| Number of doors |
5 |
| number of seats |
5 |
| Approach angle [°] |
15 |
| Departure angle [°] |
15 |
| Drag coefficient [Cd] |
0.23 |
| Official trunk volume [L] |
521 |
| Curb weight [kg] |
2232 |
| Full load mass [kg] |
2700 |
| electric motor |
|
| Number of drive motors |
Dual motor |
| Motor layout |
Front + rear |
| Motor type |
Front AC asynchronous/rear permanent magnet synchronous |
| Total motor power [kW] |
230 |
| Total motor horsepower [Ps] |
313 |
| Motor total torque [N·m] |
472 |
| Maximum power of front electric motor [kW] |
80 |
| Maximum torque of front electric motor [N·m] |
162 |
| Maximum power of rear electric motor [kW] |
150 |
| Maximum torque of rear electric motor [N·m] |
310 |
| Battery/recharge |
|
| Battery Type |
Ternary lithium battery |
| Battery brand |
Times FAW |
| Battery temperature management |
●Low temperature heating ●Liquid cooling |
| CLTC pure electric range [km] |
570 |
| Battery power [kWh] |
84.8 |
| Electricity consumption per 100 kilometers [kWhkm] |
15.4 |
| vehicle charging port |
●Slow charging port ●Fast charging port |
| Slow charging port location |
●Right rear side of car |
| Fast charging port location |
●Right rear side of car |
| Fast charging power [kW] |
100 |
| Slow charging power [kW] |
7.2 |
| Vehicle battery swap |
- |
| Home charging pile |
- |
| Car charging gun |
- |
| Battery pack warranty |
8 years or 160,000 kilometers |
| gearbox |
|
| Gearbox description |
Electric vehicle single speed gearbox |
| Gearbox type |
Fixed gear ratio |
| Number of gears |
1 |
| chassis steering |
|
| Drive form |
Dual motor four-wheel drive |
| four-wheel drive |
Electric four-wheel drive |
| Center differential structure |
- |
| Front suspension type |
MacPherson independent suspension |
| rear suspension type |
Five-link independent suspension |
| Assist type |
electric assist |
| Adjustable suspension features |
- |
| Adjustable suspension types |
- |
| Body structure |
Load-bearing |
| limited slip differential |
- |
| Differential lock |
- |
| wheel brake |
|
| Front brake type |
●Ventilated disc type |
| rear brake type |
●Drum type |
| Parking brake type |
Electronic parking |
| Front tire specifications |
●235/45 R20 |
| Rear tire specifications |
●235/45 R20 |
| Spare tire |
●No spare tire |
