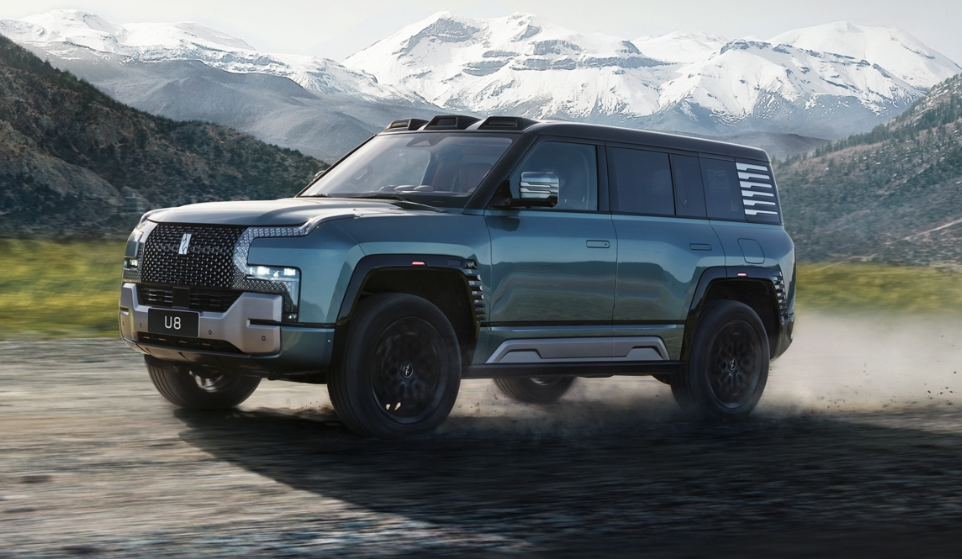

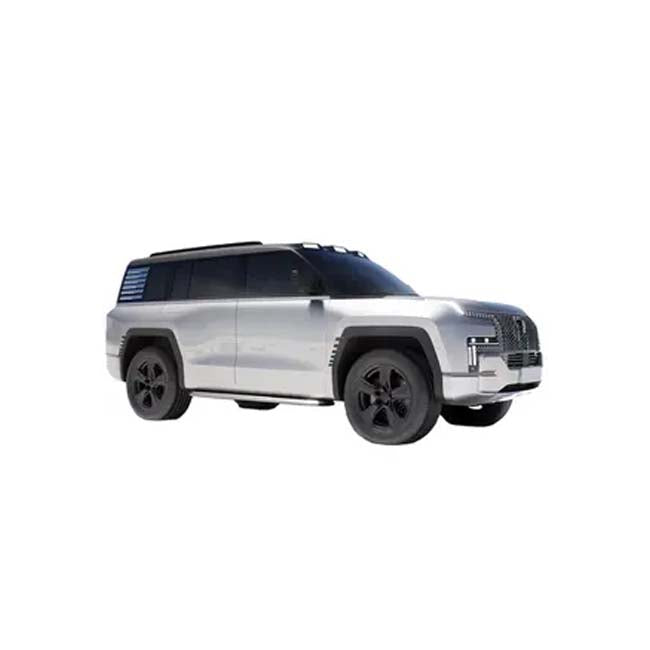

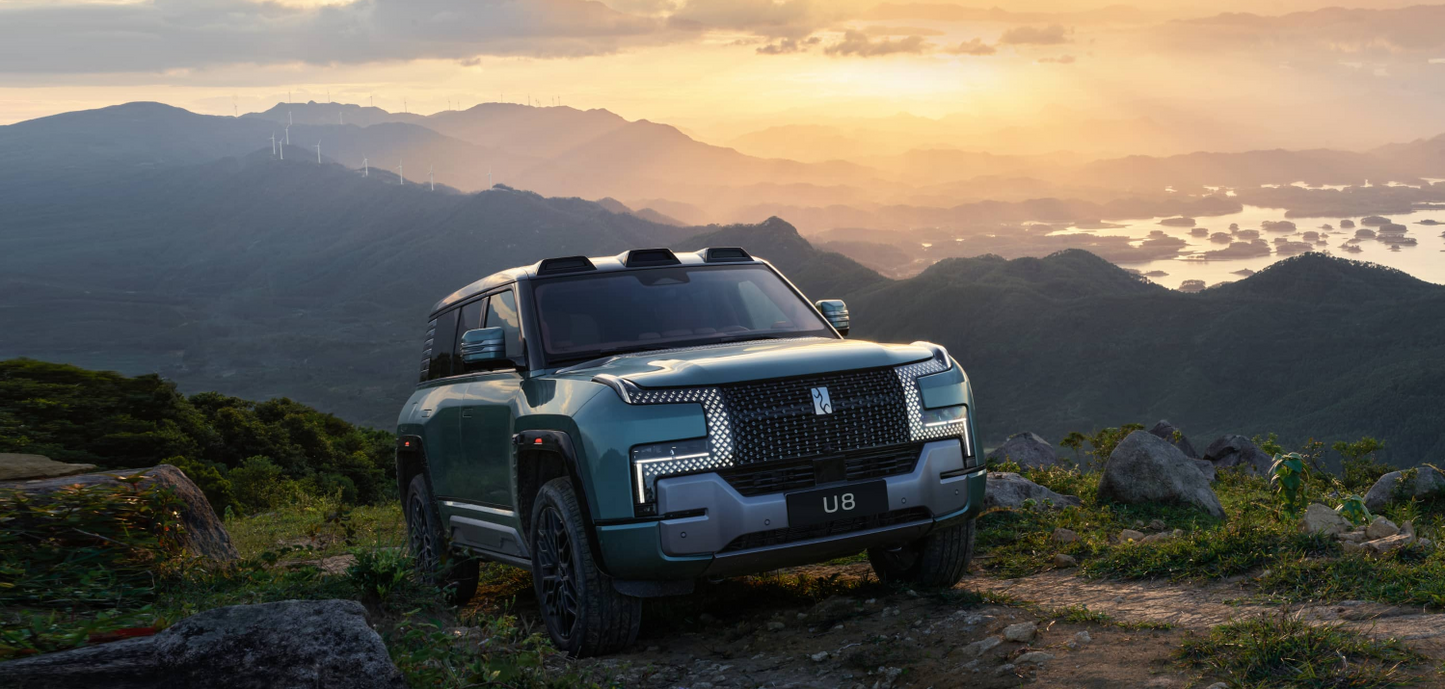

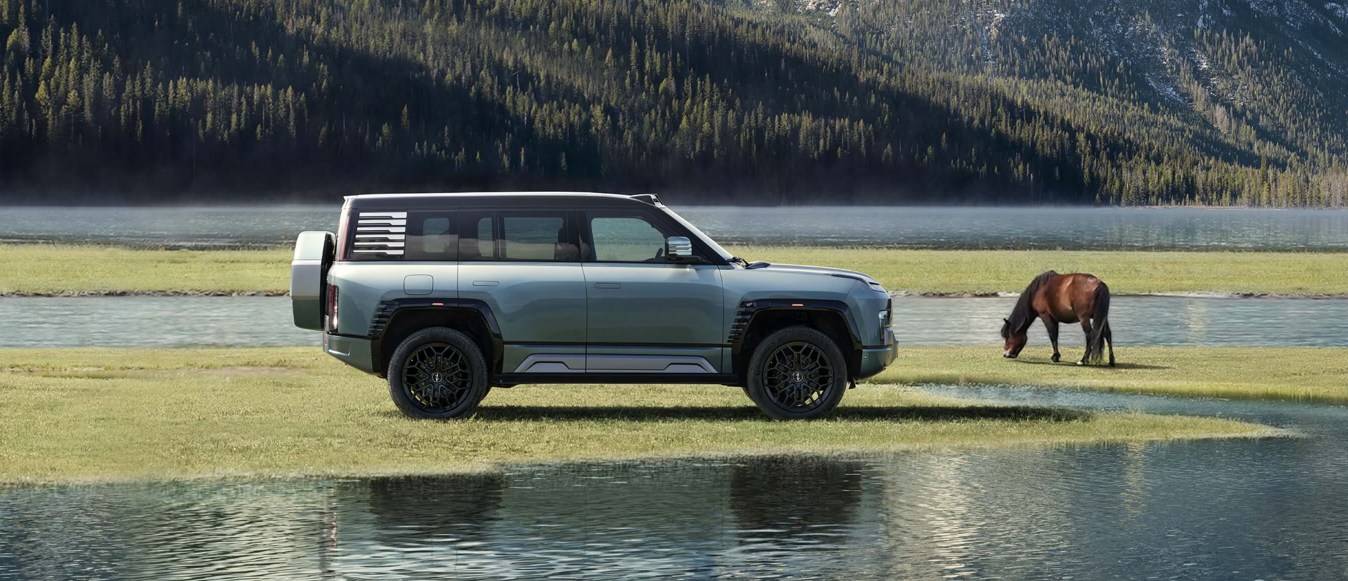

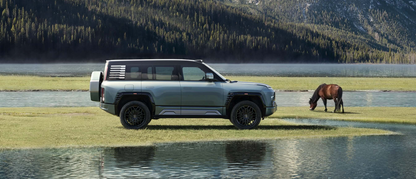

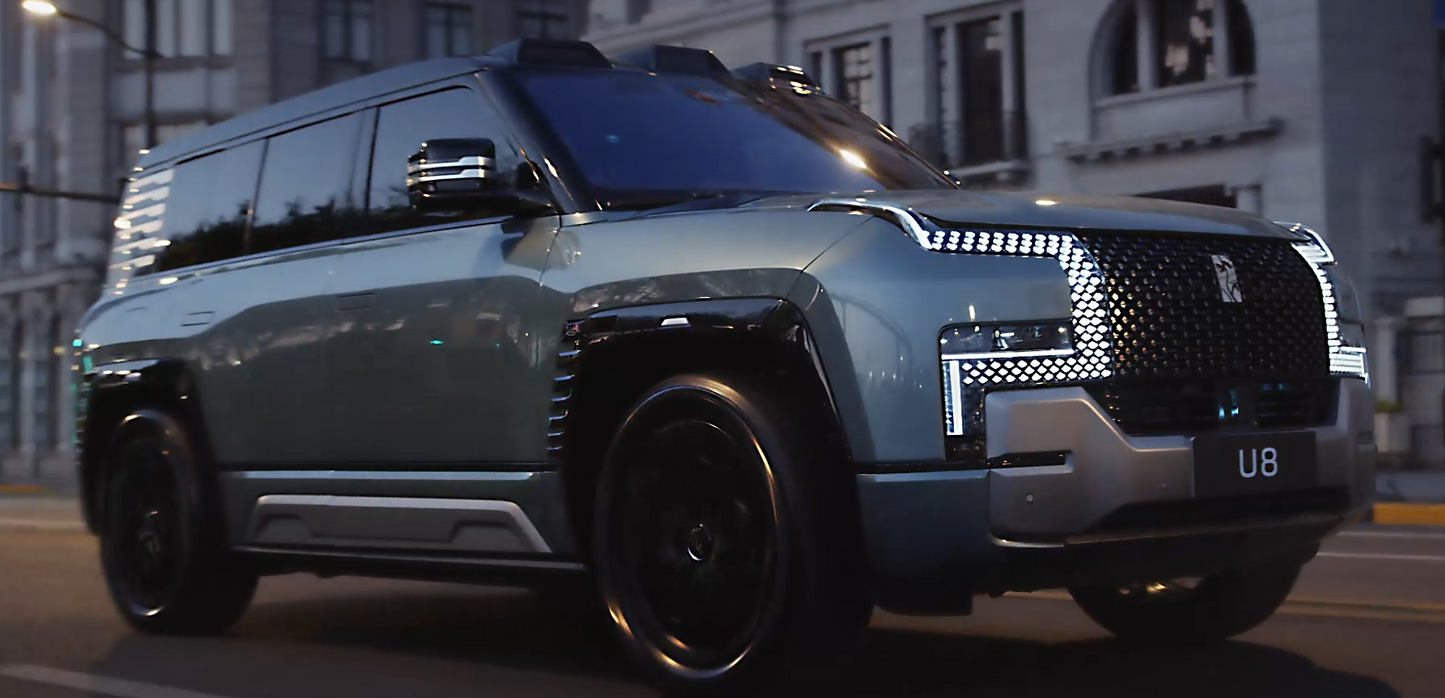

BYD YangWang U8 2024 Off-road Player Edition
$150,000.00
1
/
of
7
Regular price
$150,000.00
Sale price
$150,000.00
Regular price
Unit price
/
per
Shipping calculated at checkout.
Prices may vary due to exchange rates and market conditions !
Basic Information | U8 2024 Off-road Player Edition |
Manufacturer | car |
level | Large SUV |
Energy Type | Extended range pure electric |
Environmental standards | National VI |
Availability | 2024-04-25 |
CLTC pure electric cruising range [km] | 120 |
Fast charging time [minutes] | 18 |
Fast charge capacity[%] | 30-80 |
Slow charging time [hours] | 8 |
Slow charging capacity[%] | 15-100 |
engine | 2.0T 272 horsepower L4 |
Maximum power [kW] | 200 |
Motor [Ps] | 1197 |
Gearbox | 1st gear fixed gear ratio |
Length*width*height[mm] | 5325*2095*1940 |
Body structure | 5-door 5-seater SUV |
Maximum speed [km/h] | 190 |
Official 0-100km/h acceleration [s] | 3.9 |
WLTC comprehensive fuel consumption [Lkm] | 1.69 |
WLTC low-power fuel consumption [Lkm] | 6.5 |
Power consumption per 100 km [kWhkm] | 24.76 |
Vehicle warranty | 6 years or 150,000 km |
Appearance Color | |
Interior Color | |
Body | |
Length [mm] | 5325 |
Width [mm] | 2095 |
Height [mm] | 1940 |
Wheelbase [mm] | 3050 |
Front track [mm] | 1764 |
Rear track [mm] | 1755 |
Door opening method | Swing door |
Number of doors | 5 |
Seating capacity | 5 |
Approach angle [°] | 37.5 |
Departure angle [°] | 38 |
Pass angle [°] | 26.5 |
Minimum ground clearance without load [mm] | 310 |
Minimum turning radius [m] | 5.76 |
Fuel tank capacity [L] | 75 |
Official trunk volume [L] | 1031-2050 |
Curb weight[kg] | - |
Full load mass [kg] | 4170 |
Traction mass [kg] | 2500 |
engine | |
Engine Model | BYD487ZQD |
Displacement [mL] | 1997 |
Displacement [L] | 2.0 |
Air intake form | Turbocharger |
Engine layout | Sideways |
Cylinder arrangement | L |
Number of cylinders | 4 |
Number of valves per cylinder | 4 |
Valve mechanism | DOHC |
Maximum power [kW] | 200 |
Maximum horsepower [Ps] | 272 |
Maximum net power [kW] | 180 |
Fuel grade | No. 92 |
Oil supply method | Direct Injection |
Cylinder head material | Aluminum Alloy |
Cylinder material | Aluminum Alloy |
Environmental standards | National VI |
Electric Motor | |
Motor Brand | BYD |
Motor Model | Front TZ220XYP/TZ220XYN/Rear TZ220XYP/TZ220XYA |
Number of drive motors | Four motors |
Motor layout | Front + rear |
Motor Type | Permanent magnet synchronous |
Total motor power [kW] | 880 |
Total motor horsepower [Ps] | 1197 |
Total torque of the motor [N·m] | 1280 |
Maximum power of front motor [kW] | 440 |
Maximum torque of front motor [N·m] | 640 |
Maximum power of rear motor [kW] | 440 |
Maximum torque of rear motor [N·m] | 640 |
Battery/Energy Recharge | |
Battery Type | Lithium iron phosphate battery |
Battery brand | Fudi |
Battery Temperature Management | ●Low temperature heating ●Liquid cooling |
CLTC pure electric range [km] | 120 |
CLTC comprehensive endurance [km] | 780 |
Battery capacity [kWh] | 49.05 |
Power consumption per 100 km [kWhkm] | 24.76 |
Vehicle charging port | ●Slow charging port●Fast charging port |
Slow charging port location | ●Right rear side of the vehicle |
Fast charging port location | ●Right rear side of the vehicle |
High voltage fast charging platform | ●800V platform |
Fast charging power [kW] | 110 |
Fast charging time[min] | 18 |
Fast charging time[h] | 0.3 |
Fast charge capacity[%] | 30-80 |
Slow charging power [kW] | 7 |
Slow charging time [h] | 8 |
Slow charging capacity[%] | 15-100 |
Vehicle battery replacement | - |
Home charging station | ● |
On-board charging gun | - |
External discharge function | ● |
VTOL external discharge power | 6kW |
First Owner Battery Pack Warranty | Unlimited years/unlimited mileage (liability exemption clauses are subject to official regulations) |
Gearbox | |
Gearbox Description | Electric vehicle single speed gearbox |
Gearbox Type | Fixed gear ratio |
Number of gears | 1 |
Chassis steering | |
Drive type | Four motors and four-wheel drive |
Four-wheel drive | Electric four-wheel drive |
Center differential structure | - |
Front suspension type | Double wishbone independent suspension |
Rear suspension type | Double wishbone independent suspension |
Power type | Electric power assist |
Adjustable suspension features | ●Height adjustment ●Softness and hardness adjustment |
Adjustable suspension type | - |
Vehicle structure | Non-load bearing |
Limited slip differential | - |
Differential lock | ●Front axle●Rear axle |
Maximum wading depth [mm] | 1400 |
Wheel brake | |
Front brake type | ●Ventilated disc type |
Rear brake type | ●Ventilated disc type |
Parking brake type | Electronic parking brake |
Front tire specifications | 285/55 R20 |
Rear tire specifications | 285/55 R20 |
Spare tire | Full size |
Spare tire placement | Backpack |
